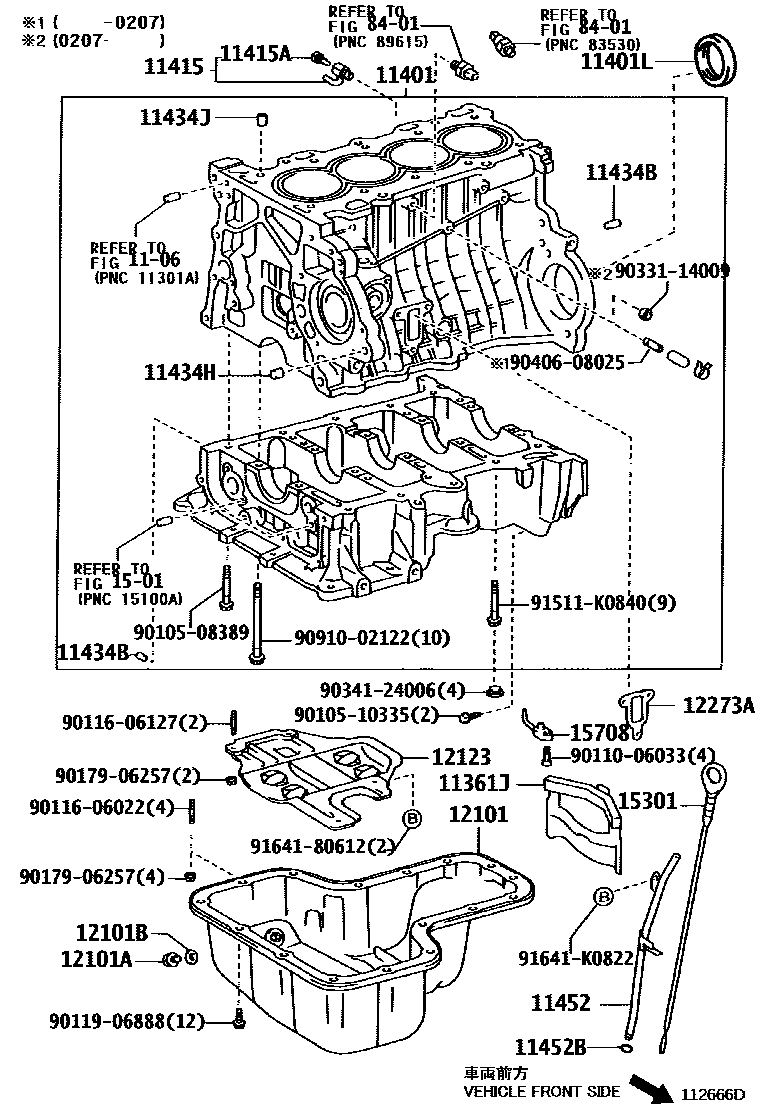

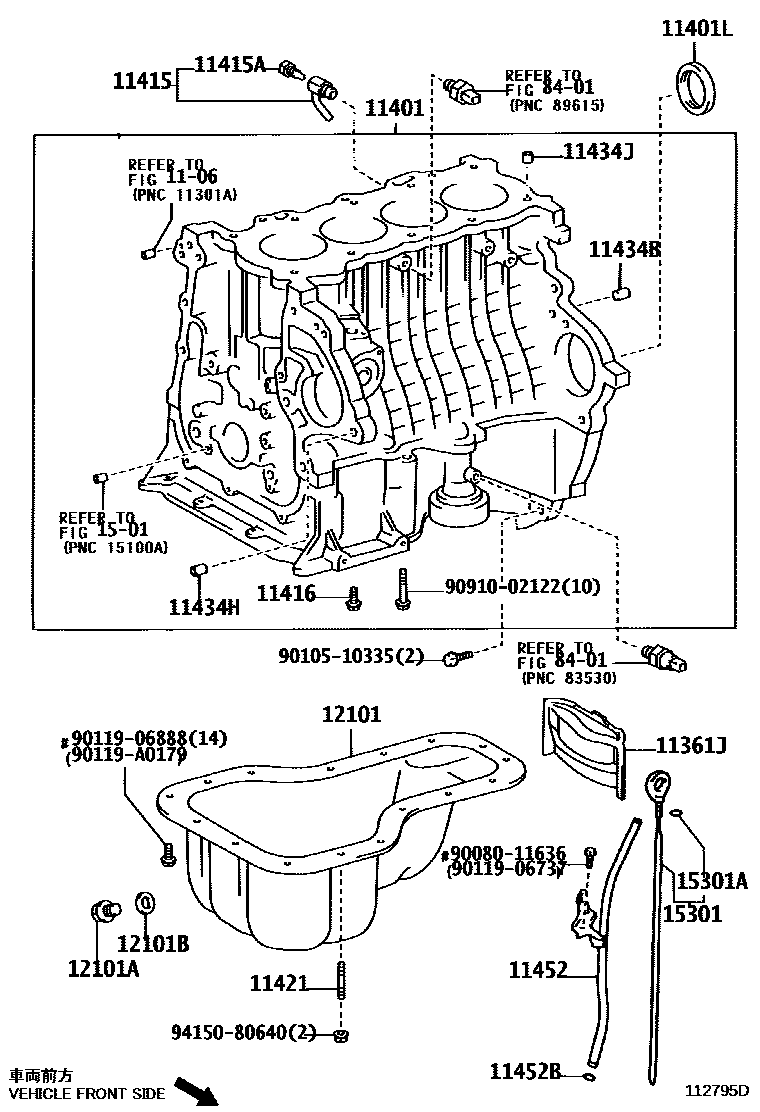

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-22021 |
| 11401 | Cylinder block sub-assembly | 11410-09012 · 11410-09070 · 11410-29075 · 11410-29096 · 11410-29165 · 11410-29175 |
| 11401L | SEAL, ENGINE REAR OIL | 90080-31050 · 90311-76001 · 90311-85010 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09075 · 90910-09107 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90080-10199 · 91511-K0840 |
| 11421 | Stud bolts (for oil pan) | 90126-06010 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-06003 · 90250-08074 · 90250-10113 · 90250-A0015 · 90250-A0018 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-14003 · 90253-A0009 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 · 90253-A0008 |
| 11452 | Engine oil level gauge guide | 11452-22030 · 11452-88600 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 12101 | Oil pan sub-assembly | 12101-0D010 · 12101-22024 · 12101-22040 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12123 | No. 3 oil pan baffle | 12123-88603 |
| 12273A | oil separator gasket | 12273-88600 |
| 15301 | Engine oil level scoring assembly | 15301-0D050 · 15301-0D051 · 15301-22030 · 15301-22050 · 15301-88600 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15708 | No. 1 oil nozzle sub-assembly | 15790-88601 |
