Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

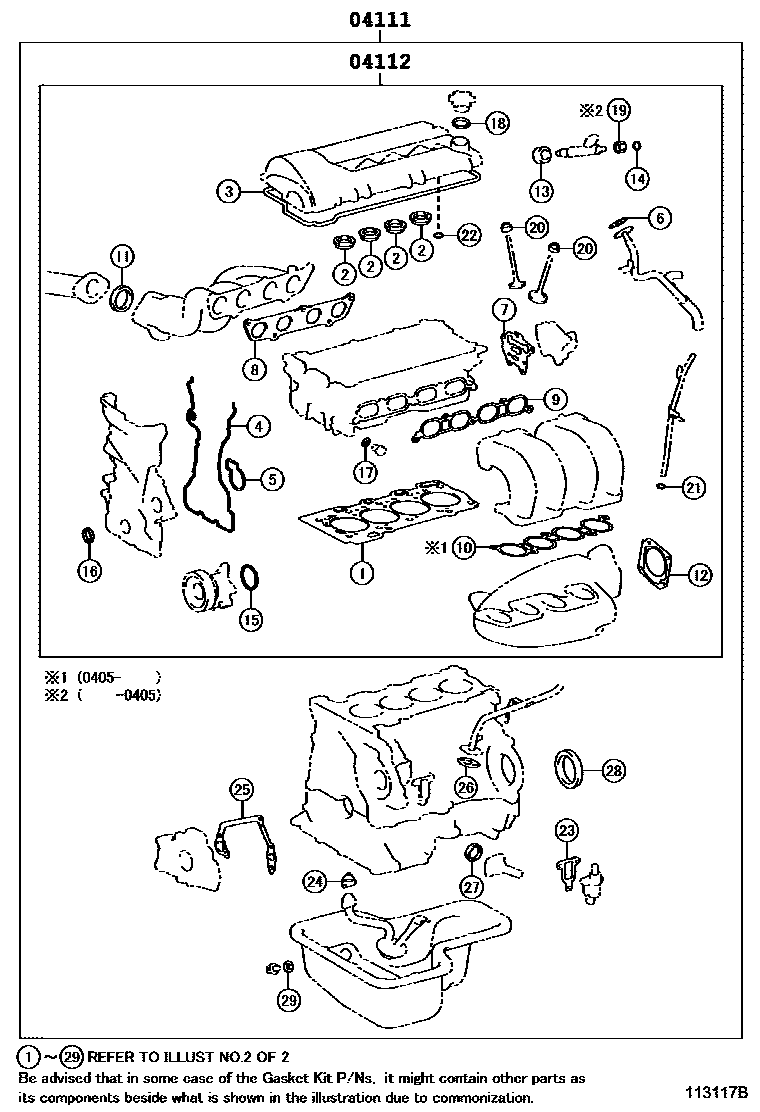

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 113117B
Engine Overhaul Gasket Kit — 113117B (200201 – 999999)

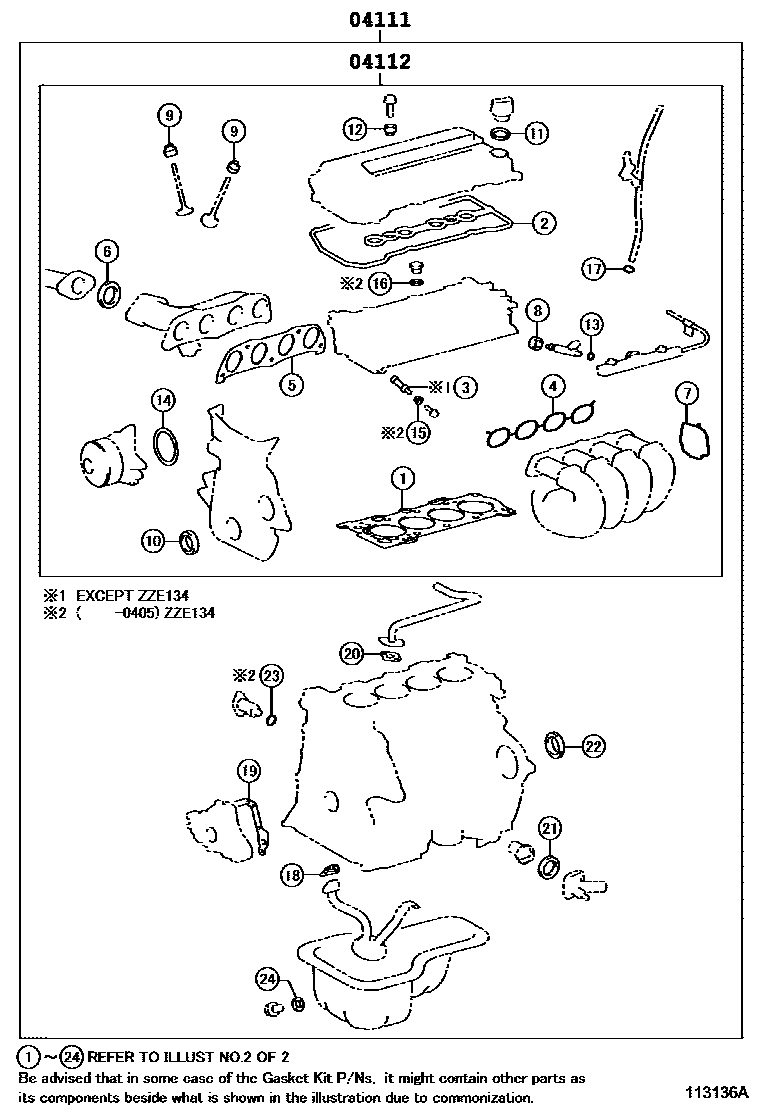

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 113136A
Engine Overhaul Gasket Kit — 113136A (200201 – 999999)

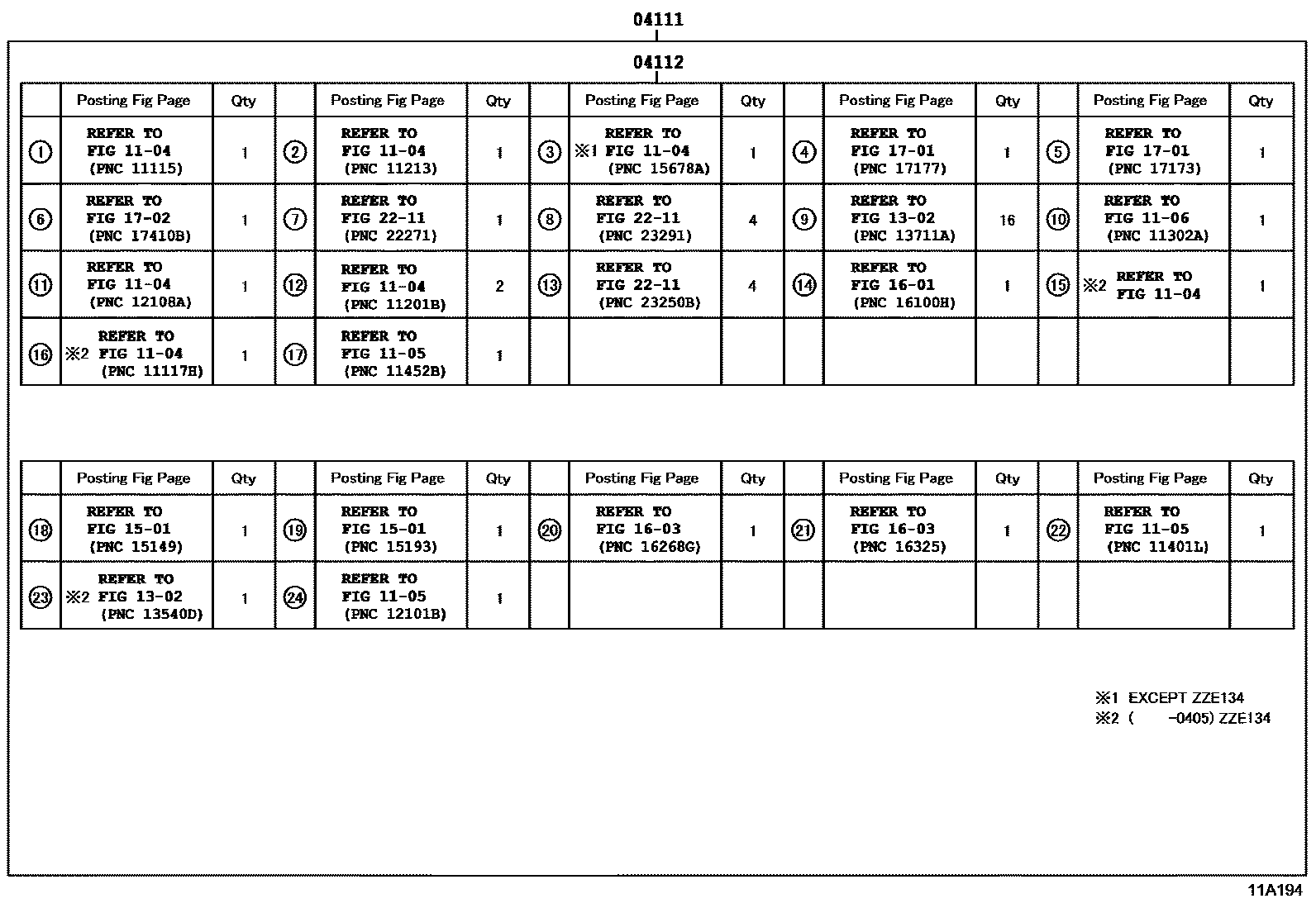

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A194
Engine Overhaul Gasket Kit — 11A194 (200201 – 999999)

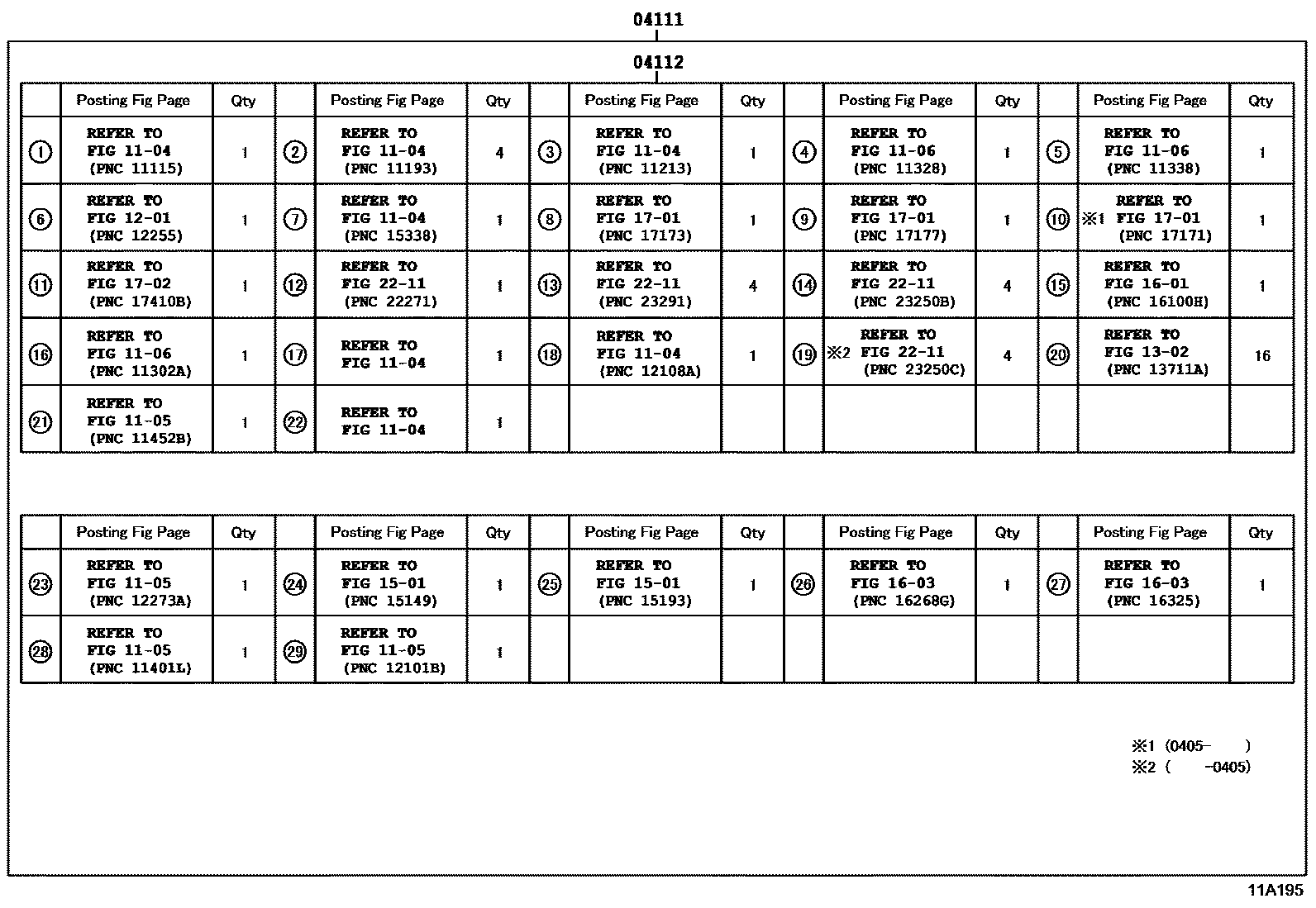

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A195
Engine Overhaul Gasket Kit — 11A195 (200201 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0D170 · 04111-0D171 · 04111-0D172 · 04111-0D301 · 04111-0D302 · 04111-0D311 · 04111-0D321 · 04111-0D330 · 04111-22140 · 04111-22141 · 04111-22170 · 04111-22171 · 04111-22172 · 04111-22680
04112Engine valve grinding pad assembly04112-0D170 · 04112-0D171 · 04112-0D172 · 04112-0D302 · 04112-0D311 · 04112-0D321 · 04112-0D330 · 04112-22140 · 04112-22141 · 04112-22170 · 04112-22171 · 04112-22172 · 04112-22600
