Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

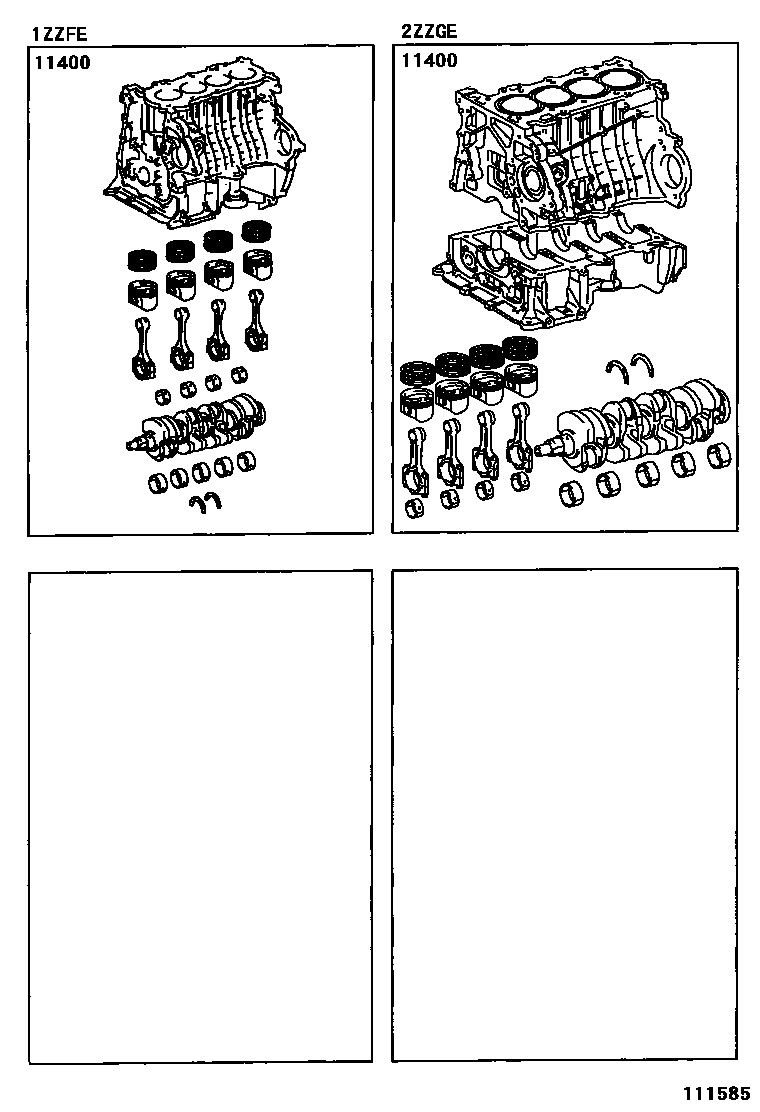

Toyota COROLLA Short Block Assembly EPC diagram — 111585
Short Block Assembly — 111585 (200201 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0D130 · 11400-0D131 · 11400-22170 · 11400-22180 · 11400-22190 · 11400-88515
