Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

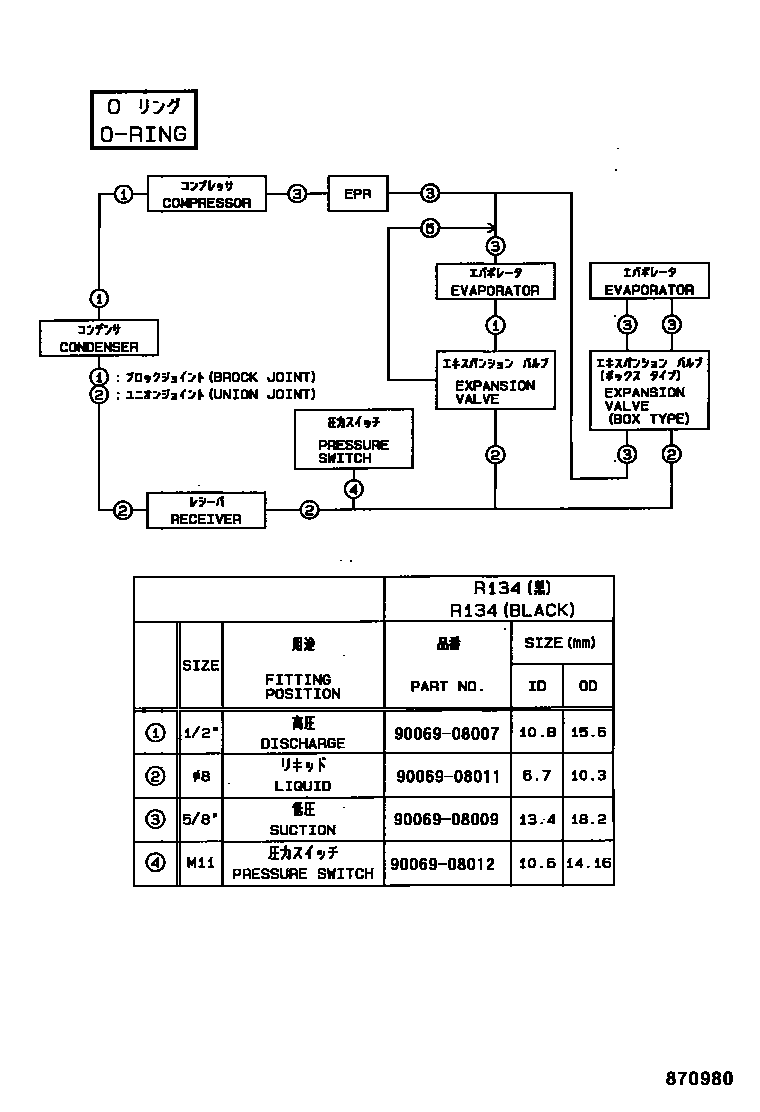

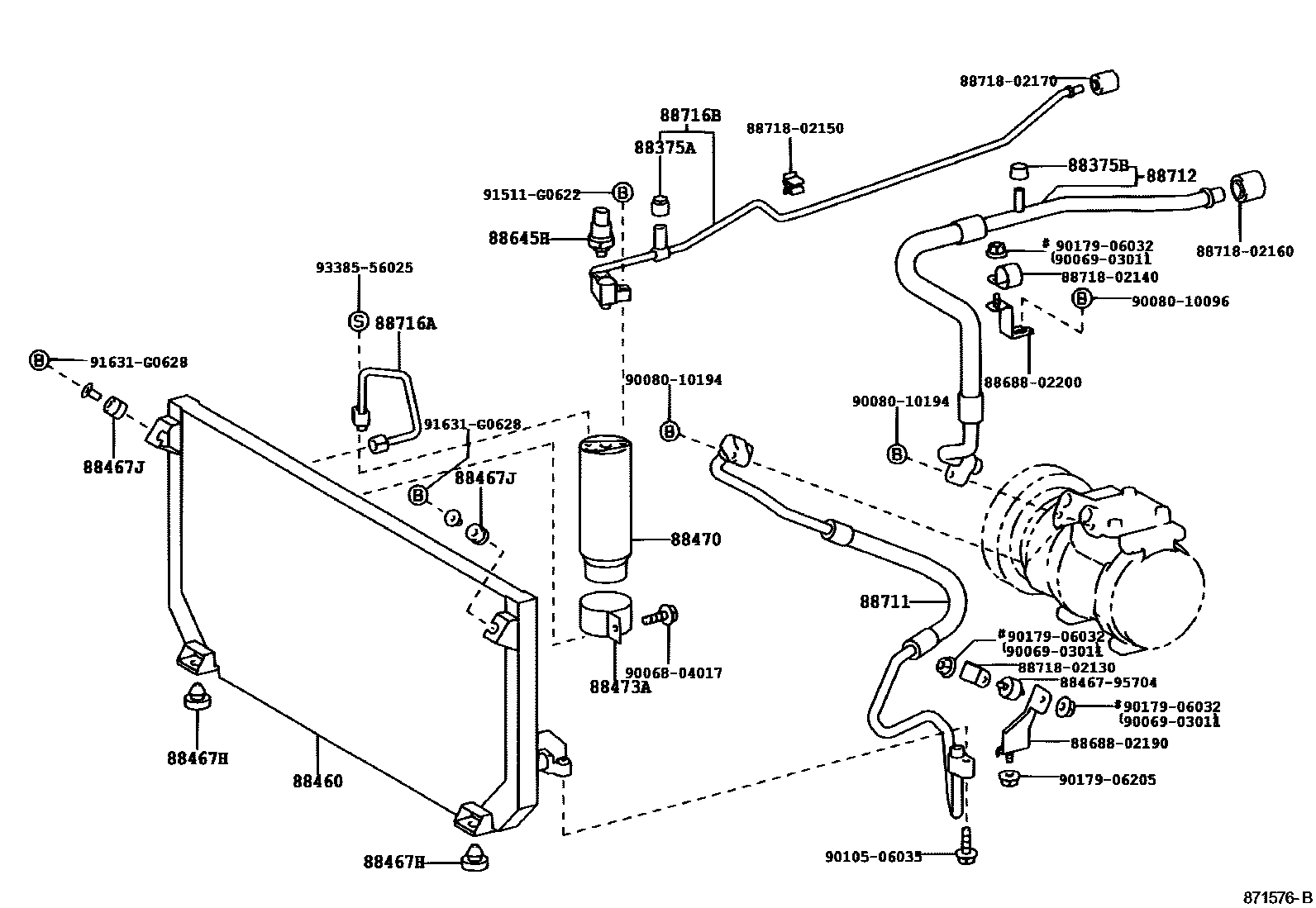

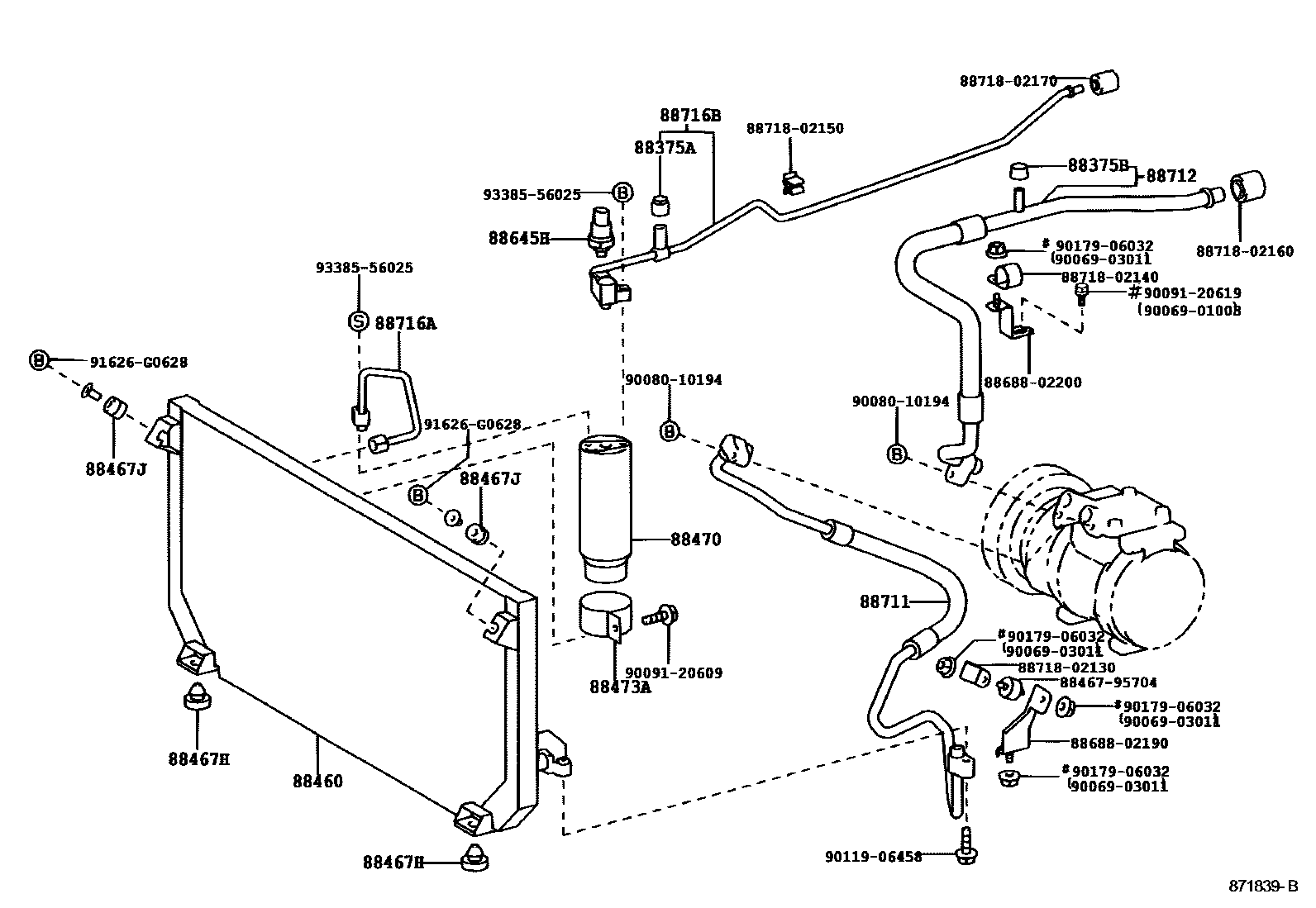

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375A | Repair valve cover (for cooler tube) | 88375-02060 |
| 88375B | No. 1 maintenance valve cover | 88375-02070 |
| 88460 | Air conditioning condenser assembly | 88460-02050 |
| 88467H | No. 1 condenser bracket buffer pad | 88467-02050 · 88467-02070 |
| 88467J | No. 2 condenser bracket buffer pad | 88467-02060 · 88897-12250 |
| 88470 | Cooler reservoir and dryer assembly | 88471-02030 · 88471-38010 |
| 88473A | Reservoir tank fixings | 88473-02030 · 88473-20070 |
| 88645H | No. 1 pressure switch | 88645-06020 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-02050 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-02040 |
| 88716A | Cooler refrigerant liquid pipe A | 88726-02040 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-02080 |
