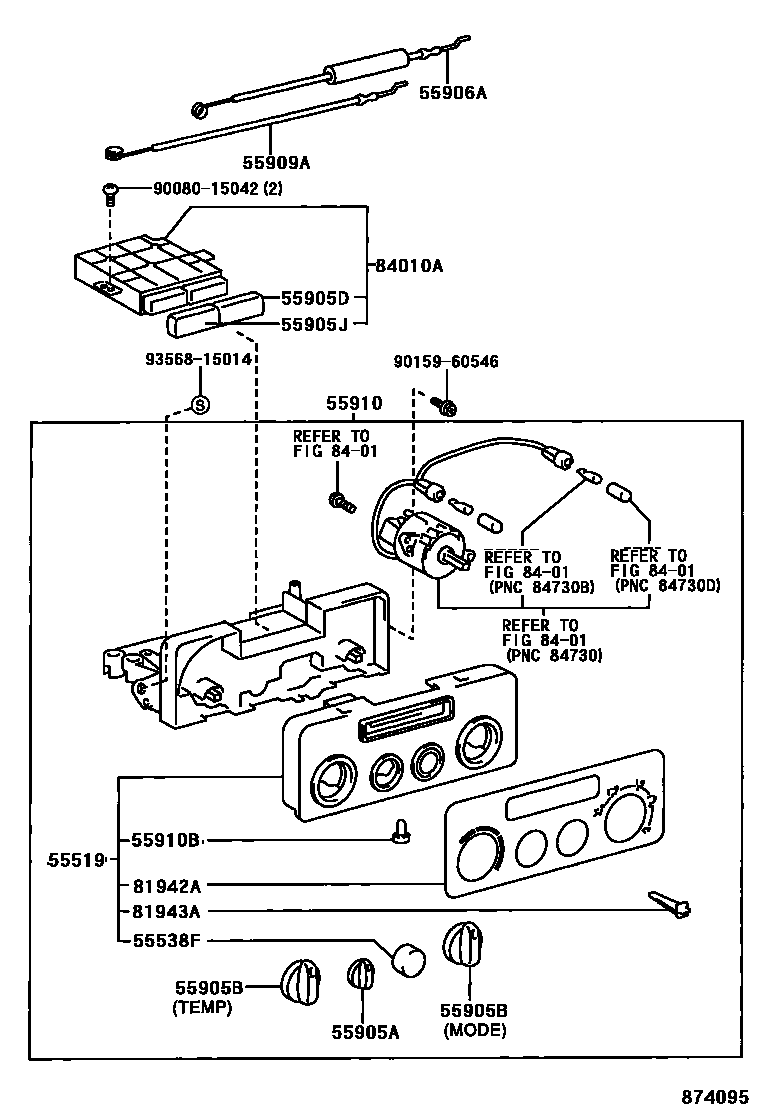

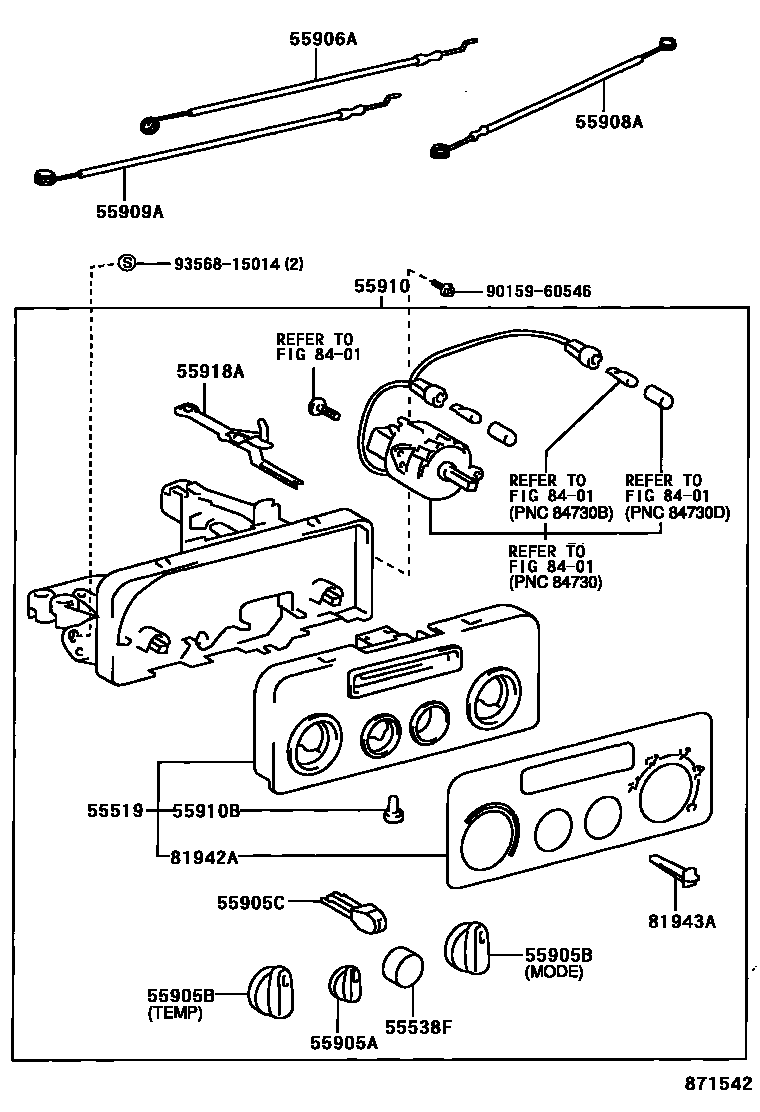

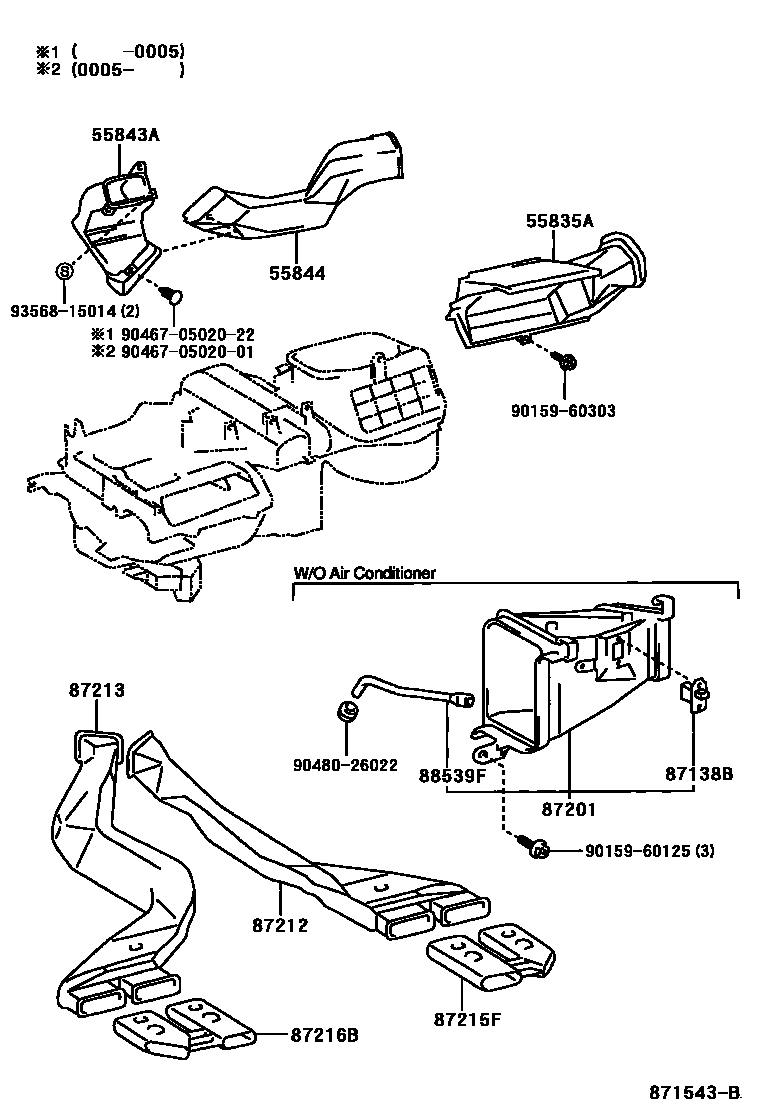

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55835A | Central air duct from heater to air register | 55870-01010 |
| 55843A | Air duct No. 1 from heater to air register | 55843-02040 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-02040 · 55844-02050 |
| 55906A | Defroster damper control cable sub-assembly | 55906-02020 |
| 55908A | Intake air valve control cable sub-assembly | 55908-02020 |
| 55909A | Air mix damper control cable sub-assembly | 55909-02020 |
| 55910B | heater control light bulb | 90011-11001 |
| 55918A | Intake air door control lever | 55918-02010 |
| 81942A | Heater No. 1 control nameplate | 81942-02040 · 81942-02050 |
| 81943A | Heater control indicator light cover | 81943-02010 |
| 87138B | Heater Blower Resistor | 87138-02010 |
| 87201 | No. 1 air duct sub-assembly | 87201-02060 · 87201-02061 · 87201-02070 · 87201-02071 |
| 87212 | No. 1 rear air duct | 87212-02020 |
| 87213 | No. 2 rear air duct | 87213-02020 |
| 87215F | No. 3 rear air duct | 87215-02030 |
| 87216B | No. 4 rear air duct | 87216-02020 |
| 88539F | discharge hose | 88539-02010 |
