Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 12 PNC and OE references.

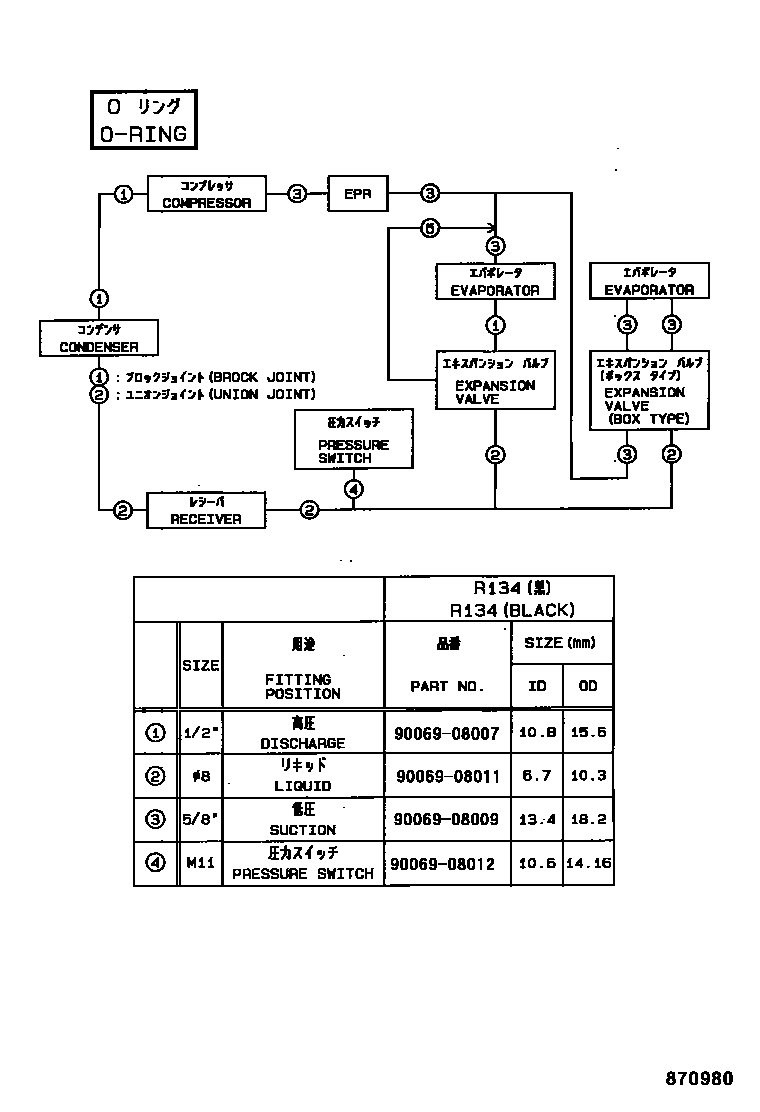

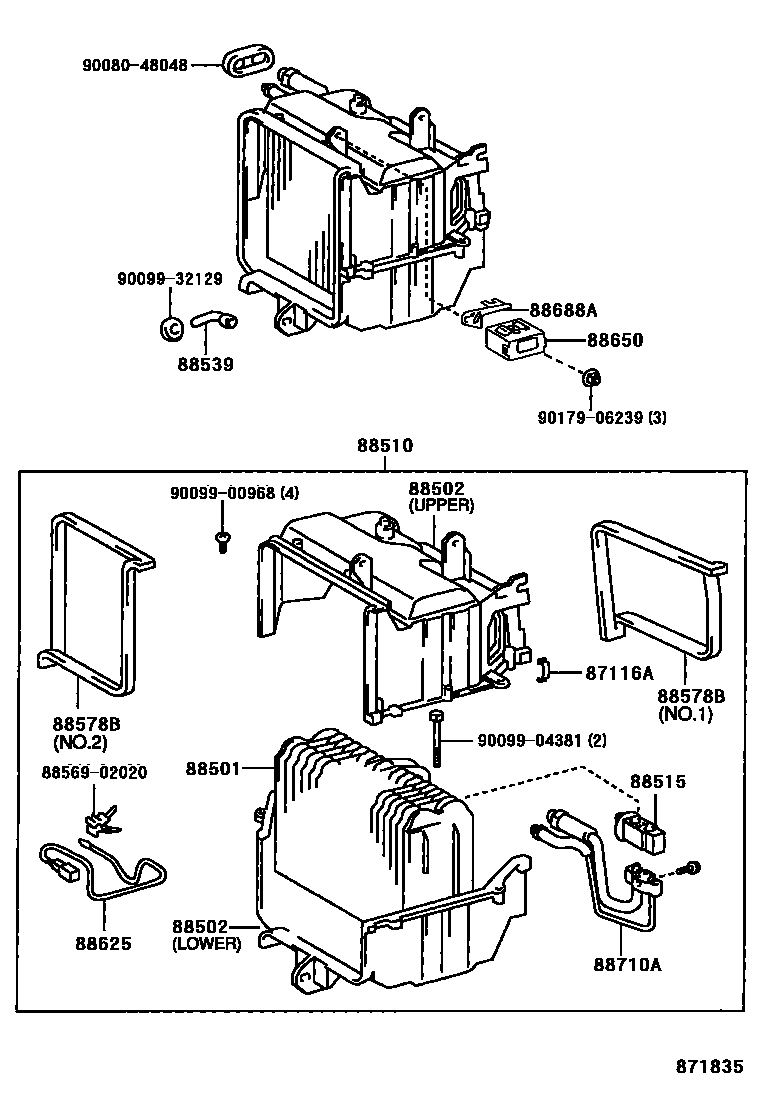

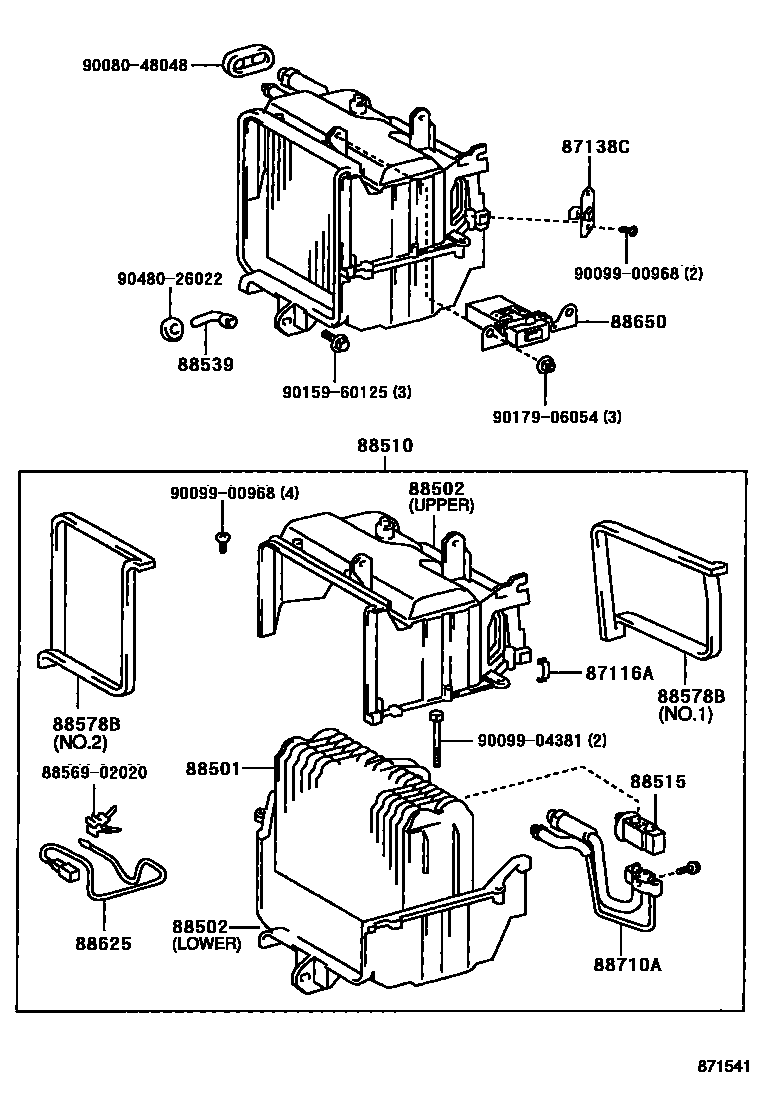

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87116A | Fixing spring (for cooler unit housing) | 87116-04020 |
| 87138C | Blower resistor | 87138-02010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02021 |
| 88502 | Cooling device shell sub-assembly | 88502-02030 · 88502-02040 |
| 88510 | Cooler device assembly | 88510-02080 |
| 88515 | Cooler expansion valve | 88515-06020 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-02020 |
| 88578B | Cooling unit seal No. 1 | 88578-02030 · 88578-02040 |
| 88625 | Cooler No. 1 Thermistor | 88625-02010 · 88625-12280 |
| 88650 | Cooler stabilized amplifier assembly | 88650-02160 · 88650-02170 |
| 88688A | Cooler stabilized amplifier stand | 88688-1A090 |
| 88710A | Air conditioning pipe assembly | 88710-02080 |
