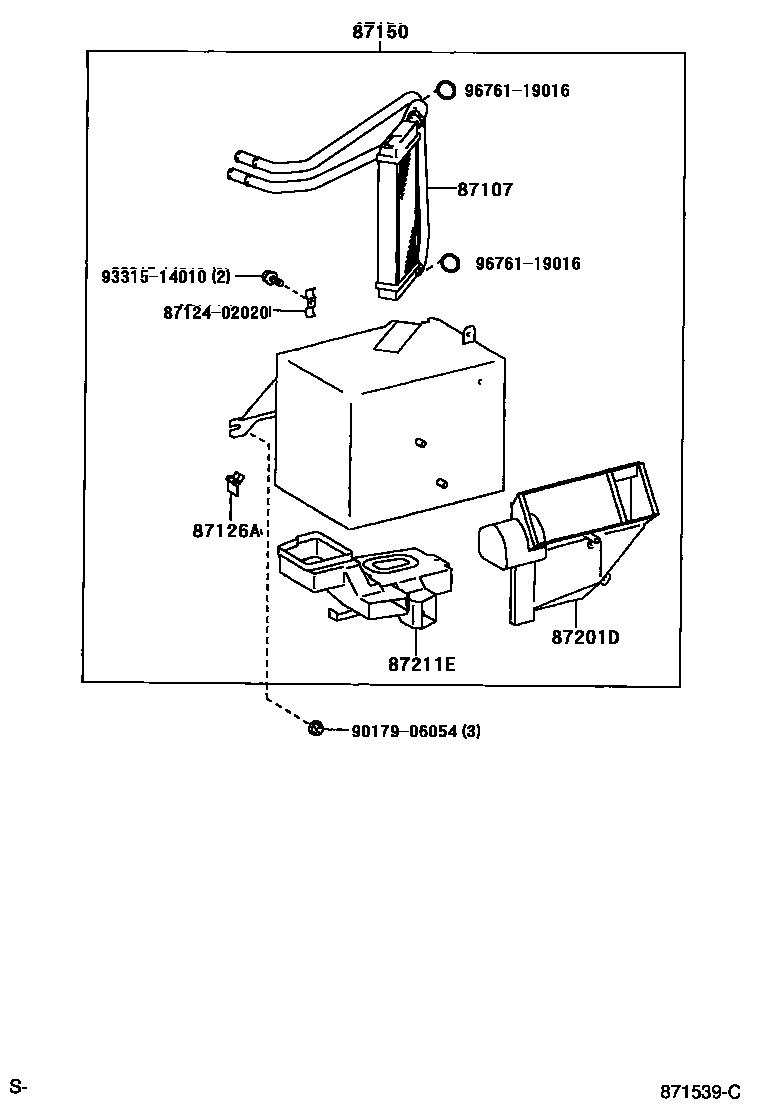

Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-02020 · 87103-02021 |
| 87106C | Damper servo mechanism sub-assembly (for blower) | 87106-02010 |
| 87107 | Heater radiator device sub-assembly | 87107-02050 · 87107-02060 |
| 87126A | heater control clip | 87126-02010 |
| 87126B | heater control clip | 87126-02020 |
| 87130 | Front heater blower assembly | 87130-02020 · 87130-02021 · 87130-02022 · 87130-02050 |
| 87131 | Left front heater bracket | 87131-02030 |
| 87150 | Heater radiator assembly | 87150-02050 · 87150-02060 |
| 87201D | Air duct sub-assembly | 87201-02030 |
| 87211E | air duct | 87211-02040 · 87211-02050 |
| 88899Y | cover (for air cleaner) | 88899-02050 |
