Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

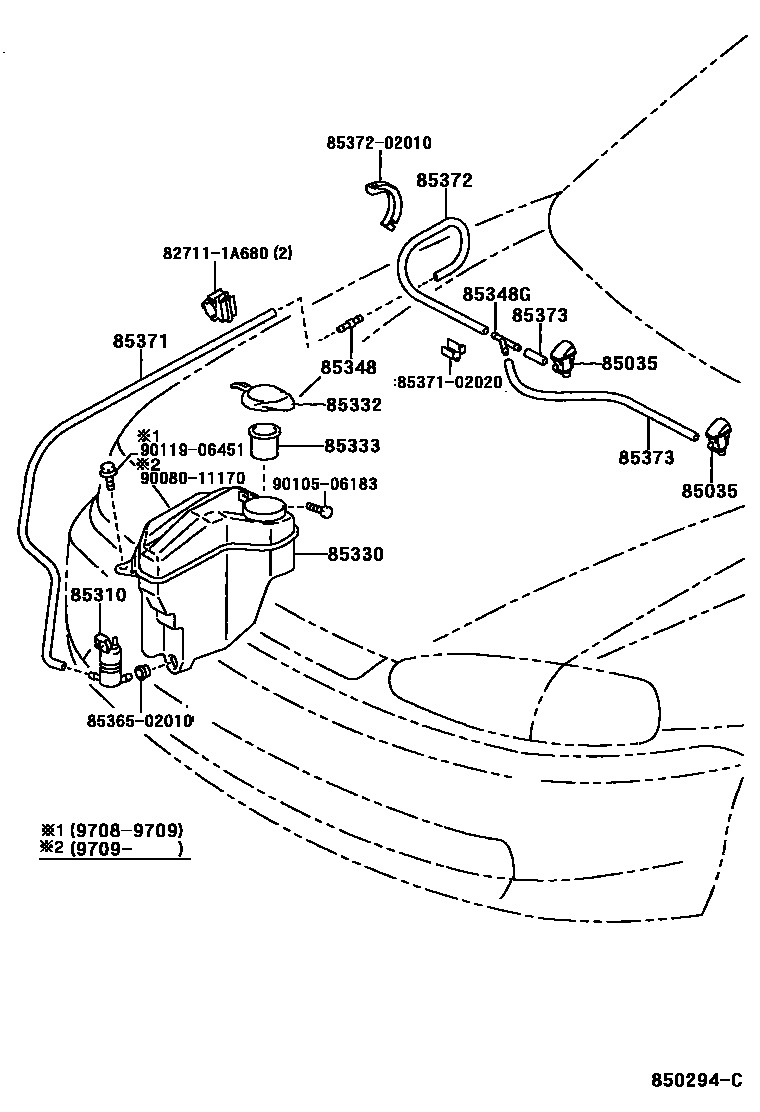

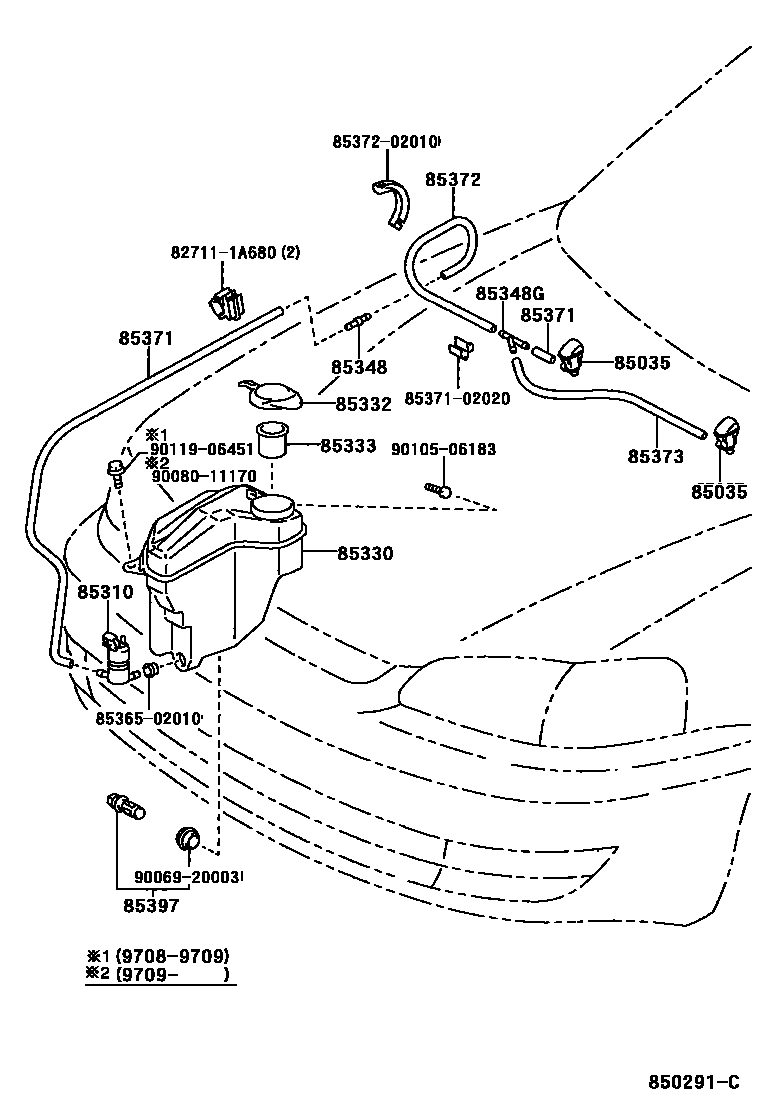

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-02020 · 85381-12160 |
| 85310 | Windshield washer motor and pump assembly | 85330-06030 |
| 85330 | Windshield washer fluid tank assembly | 85315-02030 · 85315-02040 |
| 85332 | Windshield washer fluid tank cap | 85316-01011 |
| 85333 | Windshield washer fluid tank filter | 85312-06011 |
| 85348 | Windshield washer hose connector No. 1 | 85377-01010 |
| 85348G | Windshield washer hose connector No. 2 | 85378-01010 |
| 85371 | Windshield washer hose (from motor to connector) | 85374-02040 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85374-02030 |
| 85397 | Liquid level warning switch assembly | 85397-AA010 |
