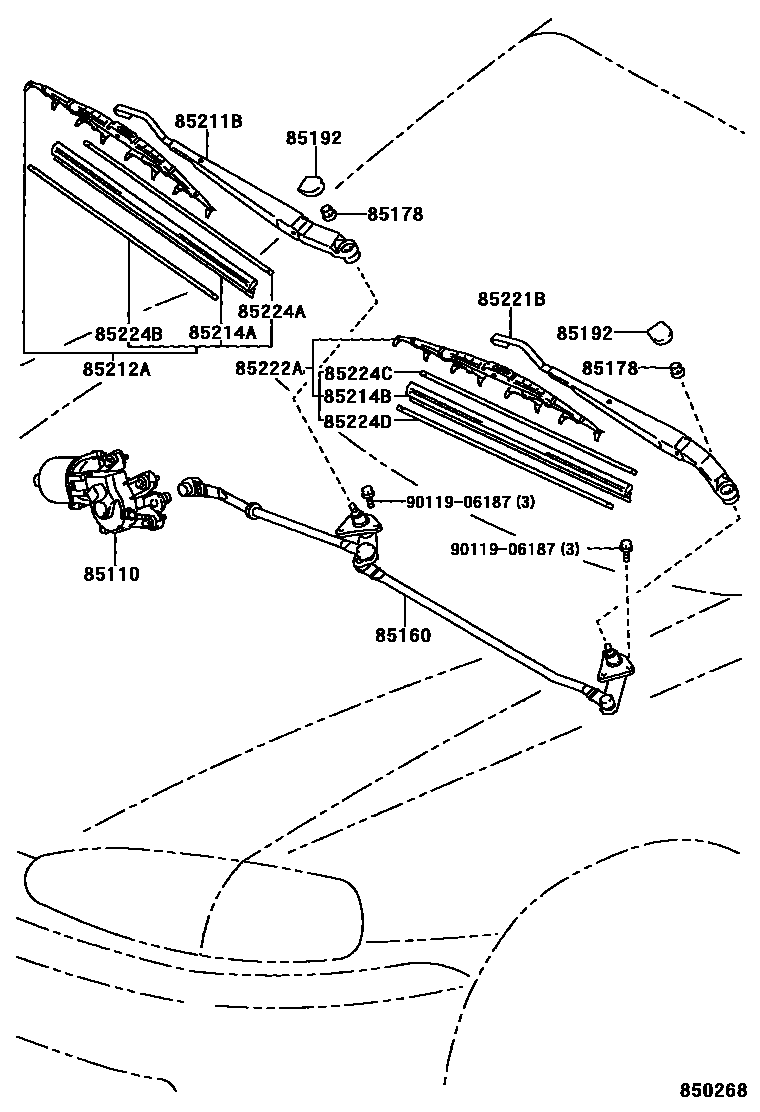

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-02040 · 85110-02051 |
| 85160 | Windshield wiper connecting rod assembly | 85150-02020 |
| 85178 | Nut (for securing front wiper arm) | 90179-08113 |
| 85192 | windshield wiper arm cover | 85292-01020 |
| 85211B | Right front wiper arm | 85211-02030 |
| 85212A | Right front wiper blade | 85212-08010 |
| 85214A | Right wiper rubber strip | 85214-08010 |
| 85214B | Left wiper rubber strip | 85214-02020 |
| 85221B | Left front wiper arm | 85221-02040 |
| 85222A | Left front wiper blade | 85222-02030 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-08010 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-08010 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-02020 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-02020 |
