Toyota COROLLA 空气囊 — Figure 8421

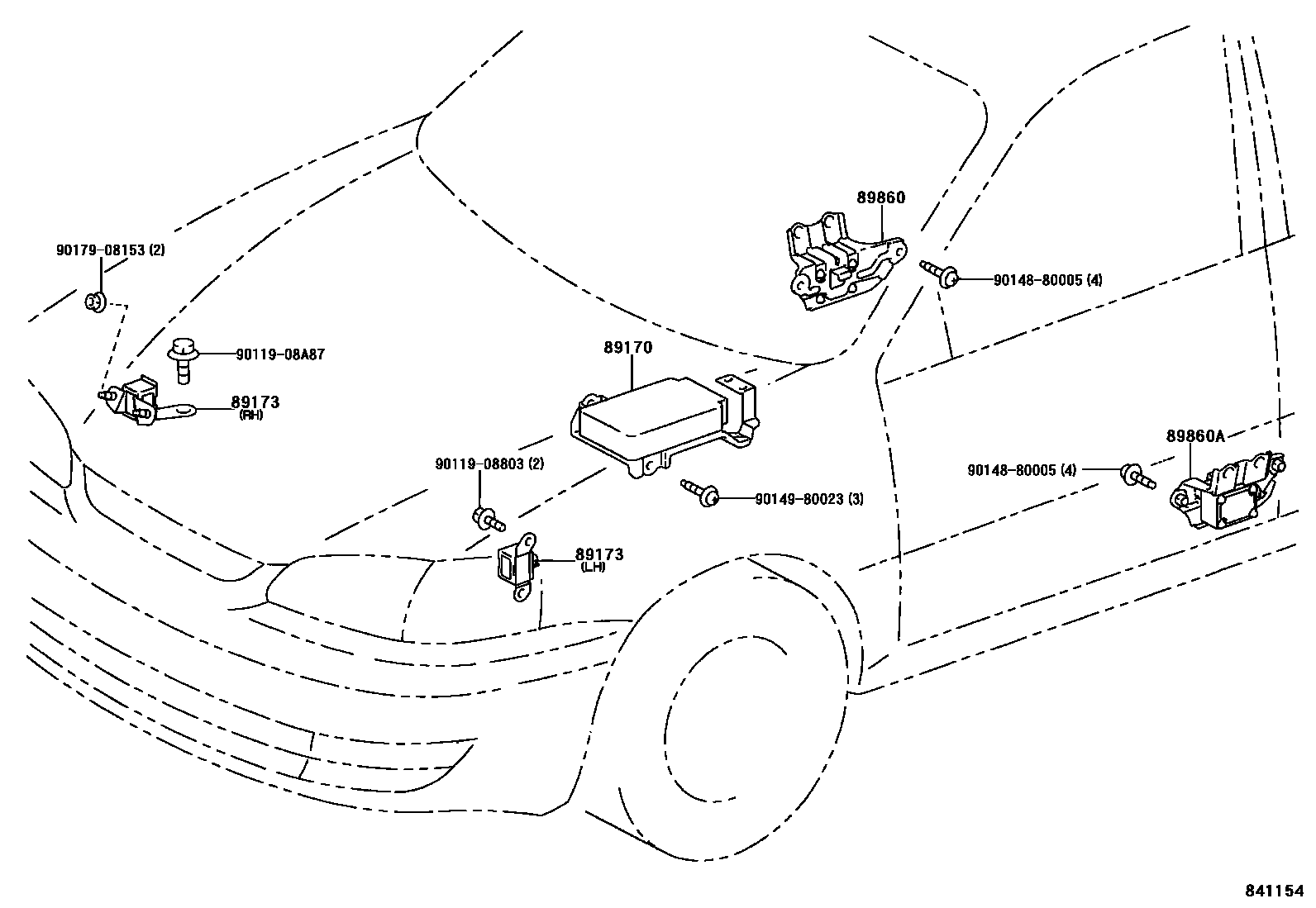

Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-02050 · 89170-02051 · 89170-02060 · 89170-02061 · 89170-02140 · 89170-02150 |
| 89173 | front airbag sensor | 89173-19095 · 89173-19105 |
| 89860 | Right side airbag sensor assembly | 89860-12010 · 89860-12011 |
| 89860A | Left side air bag sensor assembly | 89830-12010 · 89830-12011 |
