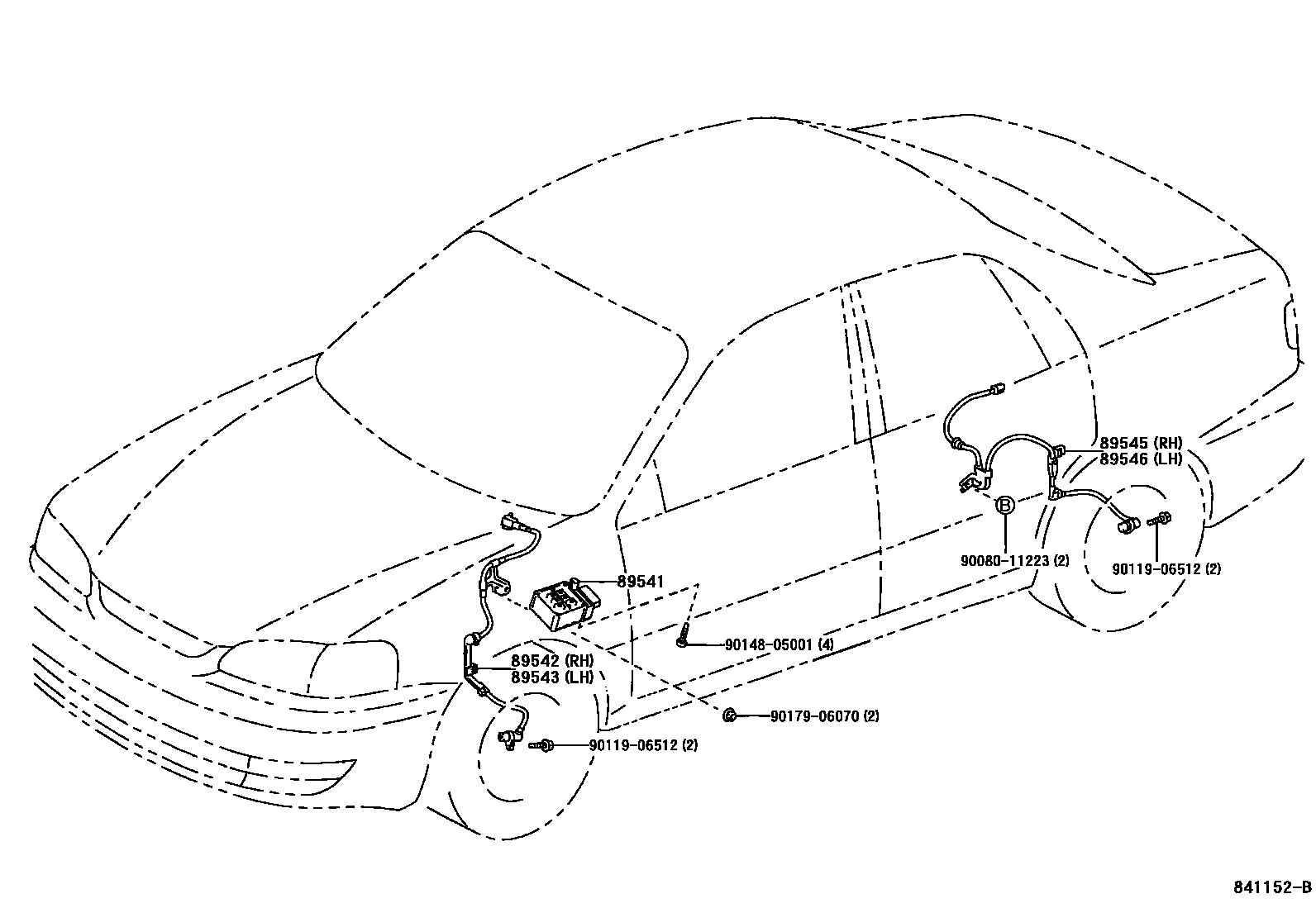

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89541 | Anti-skid control ECU | 89541-12110 |
| 89542 | Right front wheel speed sensor | 89542-02030 |
| 89543 | Left front wheel speed sensor | 89543-02030 |
| 89545 | Right rear wheel speed sensor | 89545-02020 · 89545-12040 |
| 89546 | Left rear wheel speed sensor | 89546-02020 · 89546-12040 |
