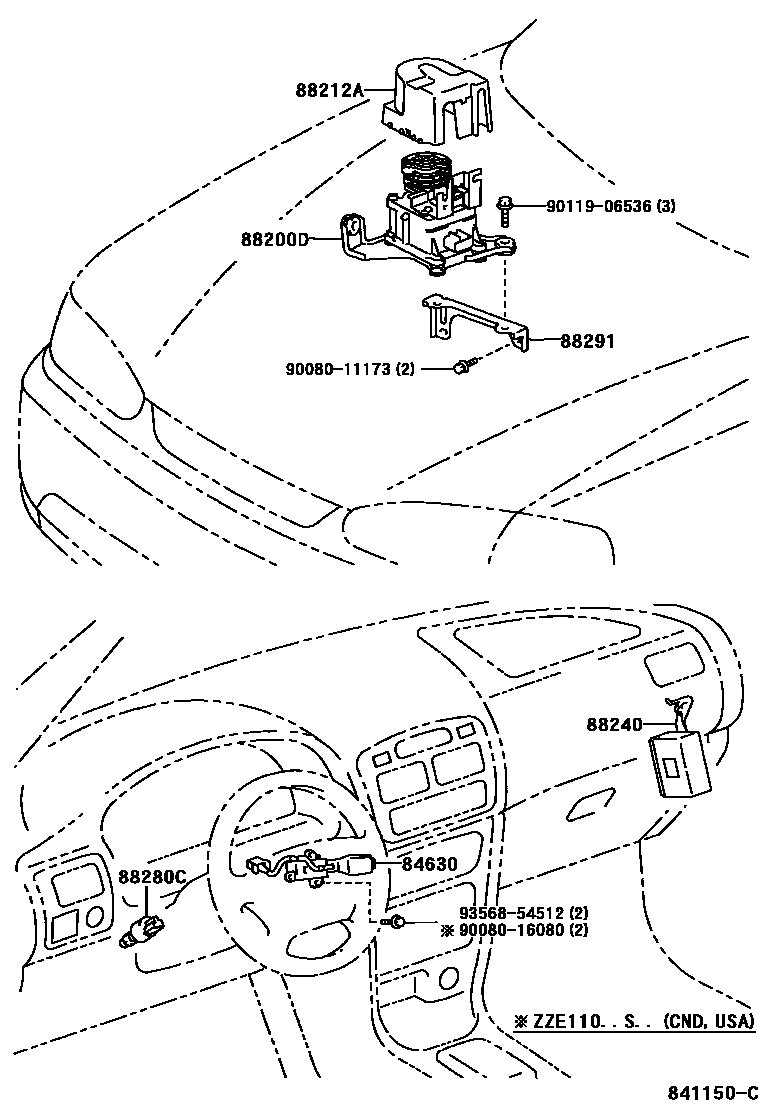

Toyota COROLLA 巡航控制(自动行驶) — Figure 8408
Toyota COROLLA EPC diagram 8408, 巡航控制(自动行驶), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84630 | Cruise control main switch assembly | 84630-06010 · 84630-06020 · 84630-14130 |
| 88200D | Cruise control actuator assembly | 88200-02020 |
| 88212A | cruise control actuator cover | 88212-06010 |
| 88240 | Cruise control ECU assembly | 88240-02020 · 88240-02030 · 88240-02040 |
| 88280C | Clutch switch assembly | 88280-14030 |
| 88291 | No. 1 cruise control (automatic driving) bracket | 88291-12140 |
