Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 6 images and 82 PNC and OE references.
PNC and OE references

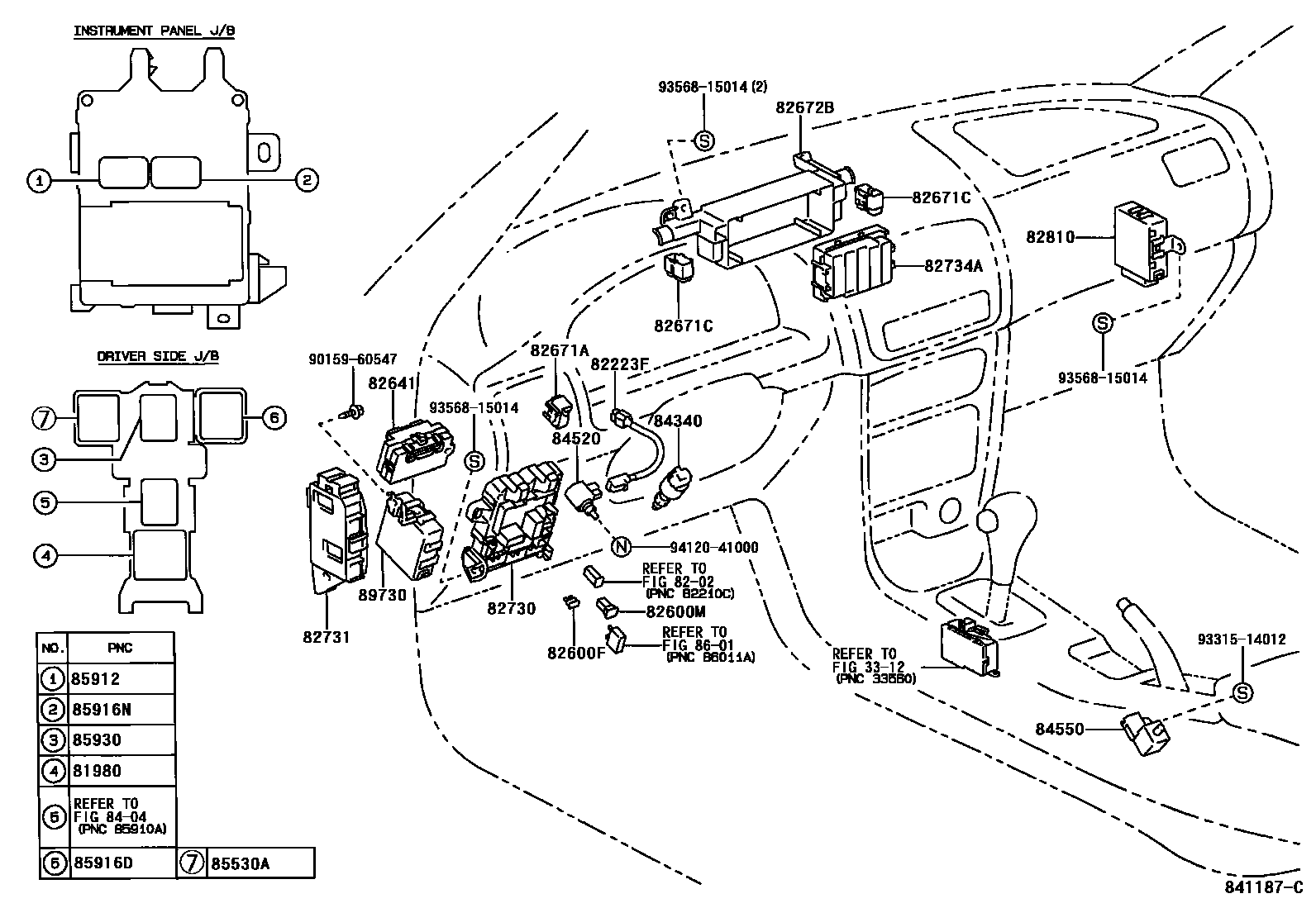

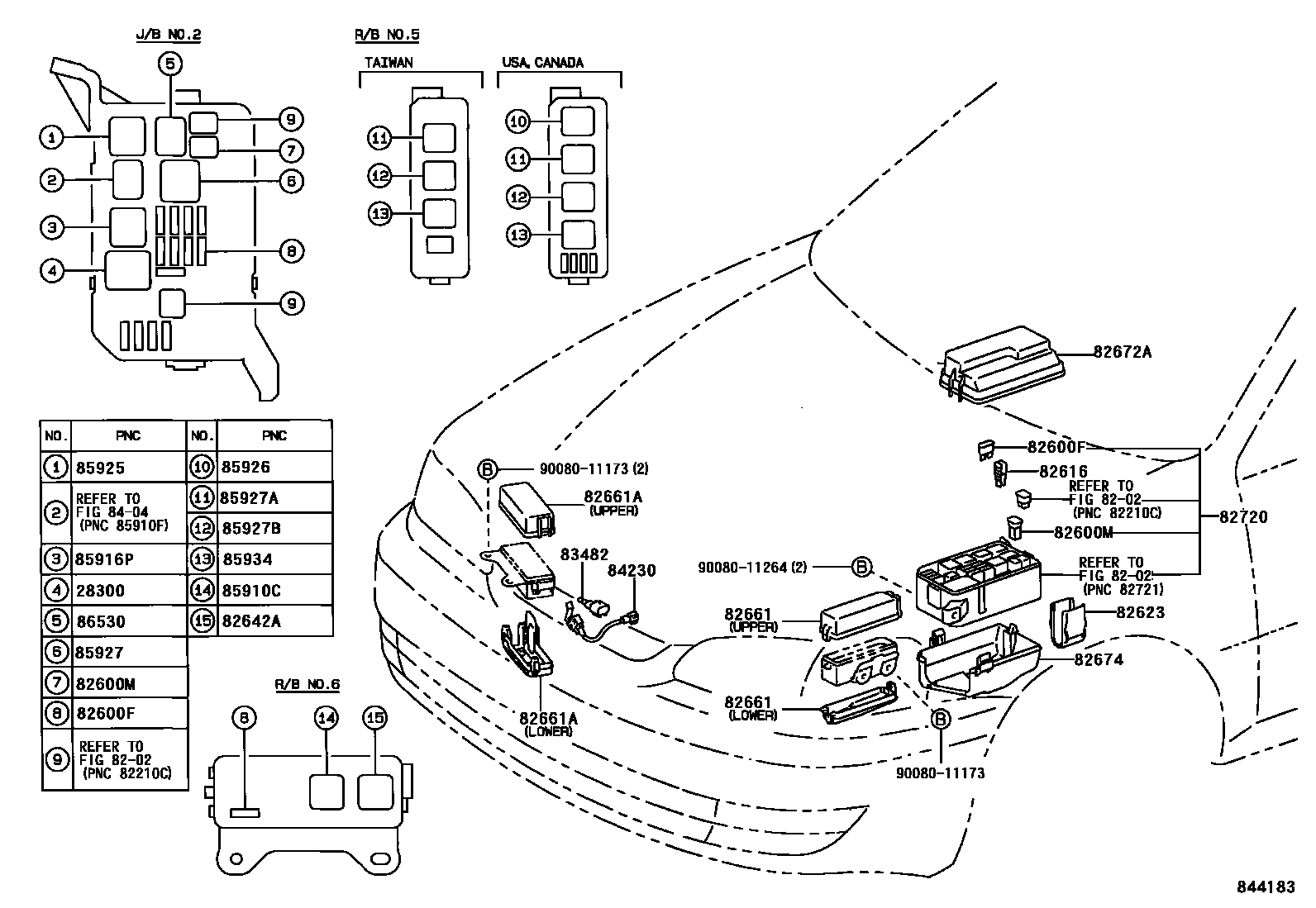

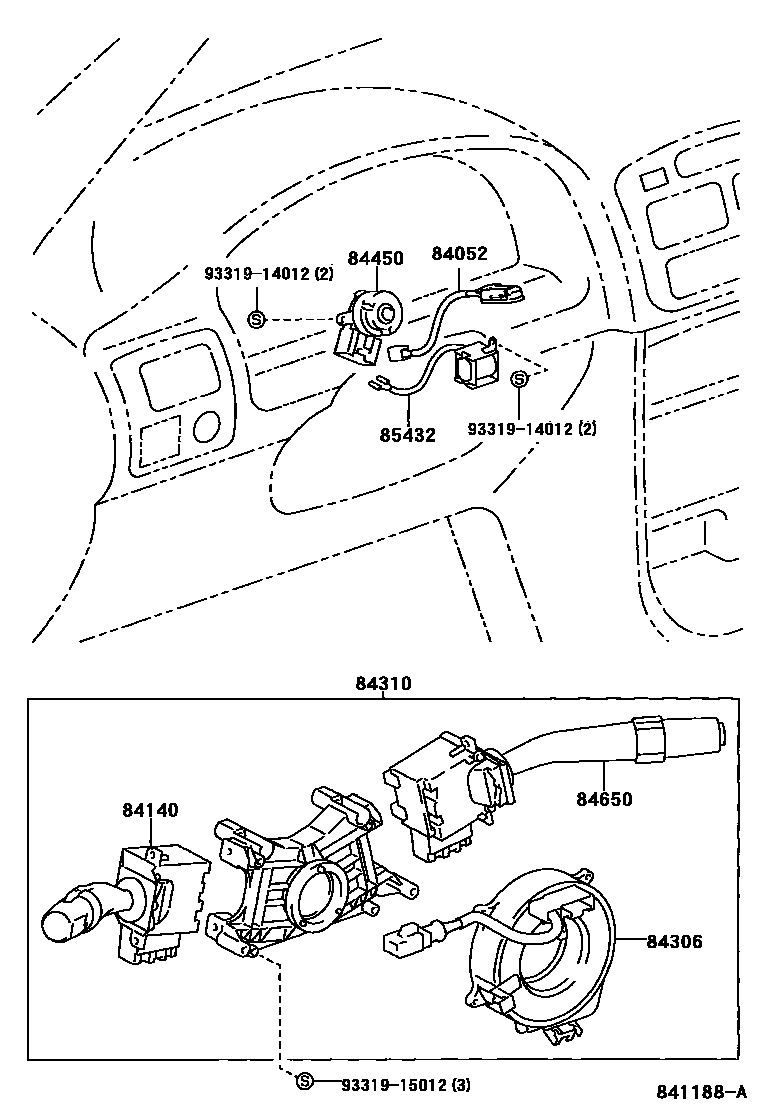

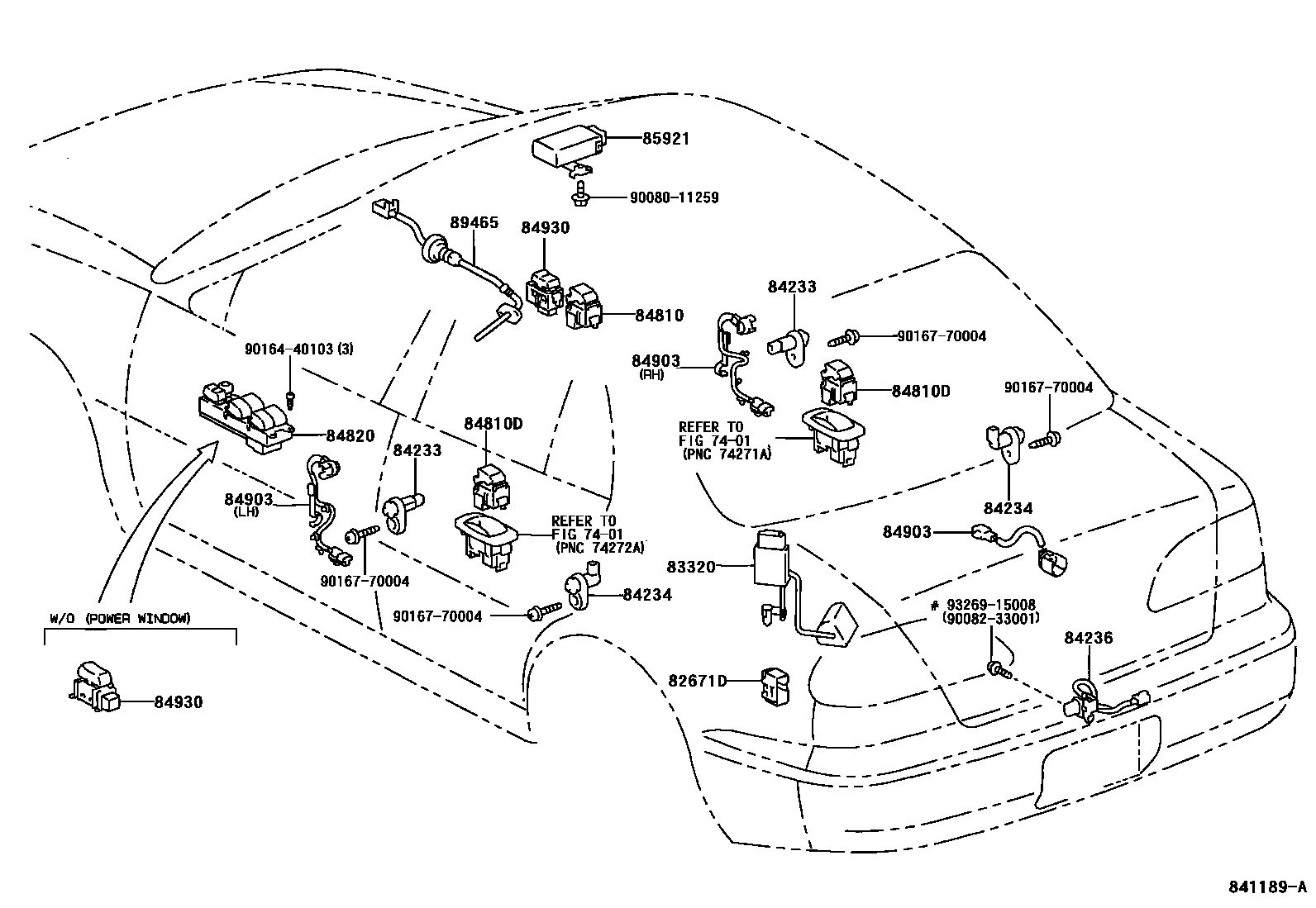

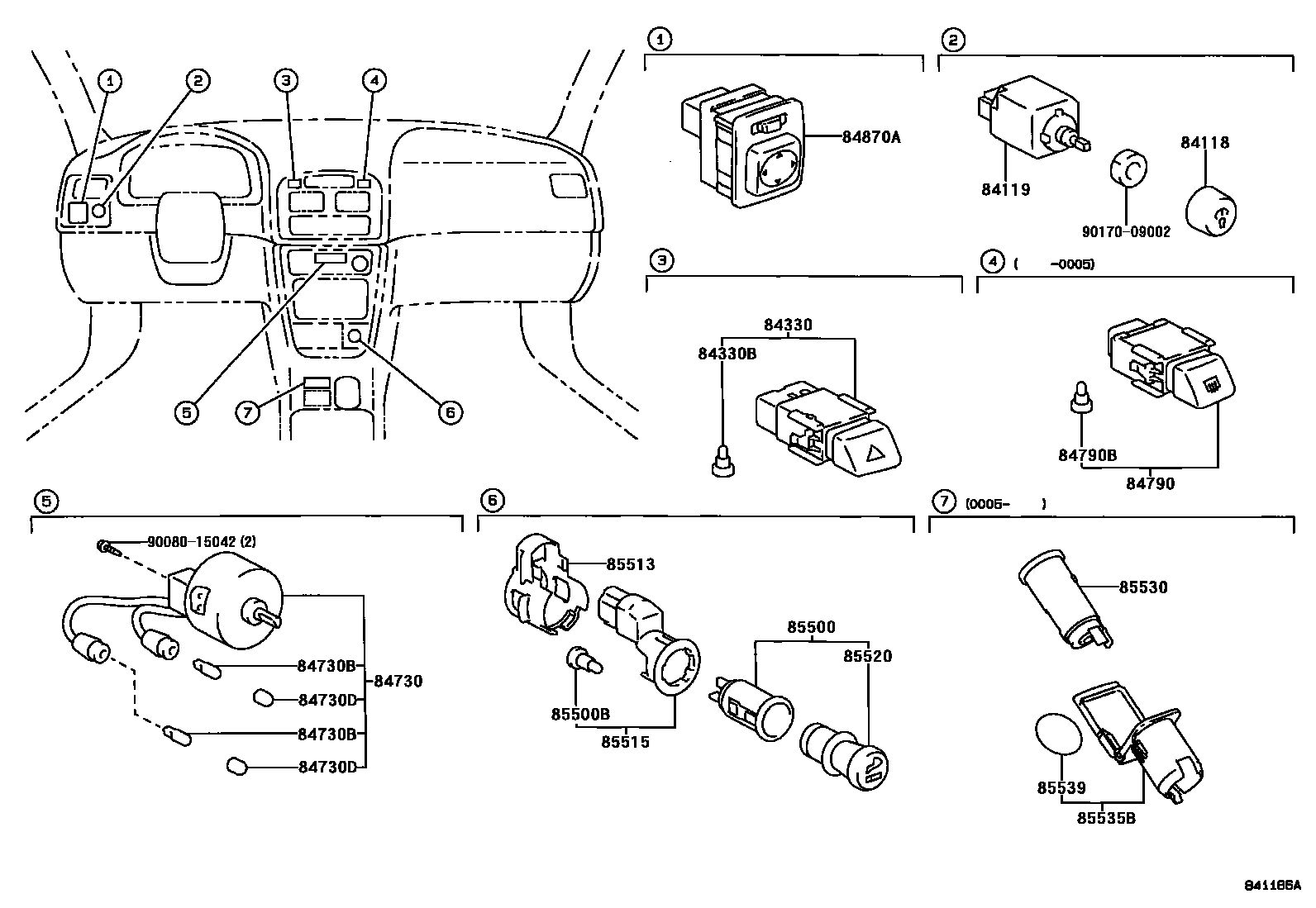

| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 81980 | Turn signal flasher relay assembly | 81980-AA020 · 81980-AA021 · 81980-AC010 · 81980-AC030 |
| 82223F | switch harness | 82223-12540 |
| 82600F | Spare fuse | 90080-82020 · 90080-82021 · 90080-82022 · 90080-82023 · 90080-82024 · 90080-82031 |
| 82600M | medium current fuse | 90982-10001 |
| 82616 | fuse puller | 82616-20010 |
| 82623 | Fuse lower cover | 82623-02010 |
| 82641 | Integrated relay No. 1 | 82641-AB020 · 82641-AB030 |
| 82642A | driving light relay | 90987-02006 |
| 82661 | No. 1 relay box cover | 82661-12200 · 82661-12210 · 82661-12220 |
| 82661A | No. 2 relay box cover | 82661-02020 · 82661-02030 |
| 82671A | junction box | 82671-30350 |
| 82671C | junction box | 82671-30370 |
| 82671D | junction box | 82671-30340 |
| 82672A | Junction box cover | 82672-02050 · 82672-02051 |
| 82672B | Junction box cover | 82672-12290 |
| 82674 | Junction box lower cover | 82674-02010 |
| 82720 | Engine room junction box assembly | 82720-02010 · 82720-02011 |
| 82730 | Instrument panel junction box assembly | 82732-02010 |
| 82731 | Driver's side junction box | 82731-12020 |
| 82734A | central junction box | 82734-12010 |
| 82810 | Driving light relay assembly | 82810-AB010 · 82810-AB030 · 82810-AB031 · 82810-AB040 |
| 83320 | Fuel gauge sensor assembly | 83320-12620 |
| 83482 | Outside car ambient temperature sensor | 83482-02010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-30090 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-12070 |
| 84118 | Light control rheostat button | 84118-02020 |
| 84119 | Light control rheostat | 84119-02040 |
| 84140 | Headlight dimmer switch assembly | 84140-02020 · 84140-02080 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84230 | Door control light switch assembly (for engine room) | 84231-12180 |
| 84233 | Door control light switch assembly (for front door) | 84231-08010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-AA030 |
| 84236 | Door control light switch assembly (for trunk) | 84231-02030 |
| 84306 | Spiral cable sub-assembly | 84306-06010 · 84306-0C010 |
| 84310 | Turn signal switch assembly | 84310-02090 · 84310-02100 · 84310-02110 · 84310-02290 · 84310-02300 · 84310-02310 · 84310-02320 · 84310-02330 |
| 84330B | Hazard warning signal switch light bulb | 90011-01003 |
| 84340 | brake light switch assembly | 84340-32050 · 84340-32070 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84520 | Clutch start switch assembly | 84520-24010 |
| 84540 | Neutral start switch assembly | 84540-12200 · 84540-12210 · 84540-12230 · 84540-16050 · 84540-32110 · 84540-52010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-02070 · 84652-02080 · 84652-02090 · 84652-02170 · 84652-02180 |
| 84730 | Heater blower switch assembly | 84732-08020 |
| 84730B | heater blower switch light bulb | 90069-98004 |
| 84730D | Heater blower switch bulb cover | 90069-09014 |
| 84790B | Bulb (for rear window defogger switch) | 90011-01001 · 90011-01017 |
| 84810 | Electric window lift switch assembly | 84810-08010 |
| 84810D | Rear electric window lift switch assembly | 84810-08010 |
| 84820 | Electric window lift main switch assembly | 84820-AA011 |
| 84870A | Exterior rearview mirror switch assembly | 84870-02020 |
| 84903 | Door unlock switch sub-assembly | 84903-12140 · 84903-12150 · 84903-12160 |
| 84930 | Door control switch assembly | 84930-02010 · 84930-06011 |
| 85432 | Key interlock solenoid valve | 85432-12020 |
| 85500 | Cigarette lighter assembly | 85500-02011 |
| 85500B | Cigarette lighter bulb | 90011-01014 |
| 85513 | Cigarette lighter cover | 85513-02010 |
| 85515 | Cigarette lighter frame bracket | 85515-02020 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-06020 |
| 85530 | No. 1 power socket assembly | 85530-06010 |
| 85530A | power outlet relay | 90080-87010 · 90084-98031 |
| 85535B | No. 1 power outlet cover | 85535-02010 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90080-87010 · 90084-98031 |
| 85916D | fog light relay | 90080-87010 · 90084-98031 |
| 85916N | Tail light relay | 90080-87010 · 90084-98031 |
| 85916P | headlight relay | 90987-02006 |
| 85921 | Sliding sunroof control relay | 85921-12070 |
| 85925 | Radiator fan relay | 85925-17010 |
| 85926 | Headlight dimmer relay | 85926-30020 |
| 85927 | cooling fan relay | 90080-87015 · 90084-98011 · 90987-03003 |
| 85927A | Cooling fan relay No. 2 | 90080-87014 · 90084-98032 · 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90080-87010 · 90084-98031 · 90987-02012 |
| 85930 | Electric window relay assembly | 90080-87010 · 90084-98031 |
| 85934 | Electromagnetic clutch relay | 90080-87010 · 90084-98031 · 90987-02012 |
| 86530 | Speaker relay assembly | 90080-87010 · 90084-98031 |
| 89427 | Temperature detection switch | 89428-12160 |

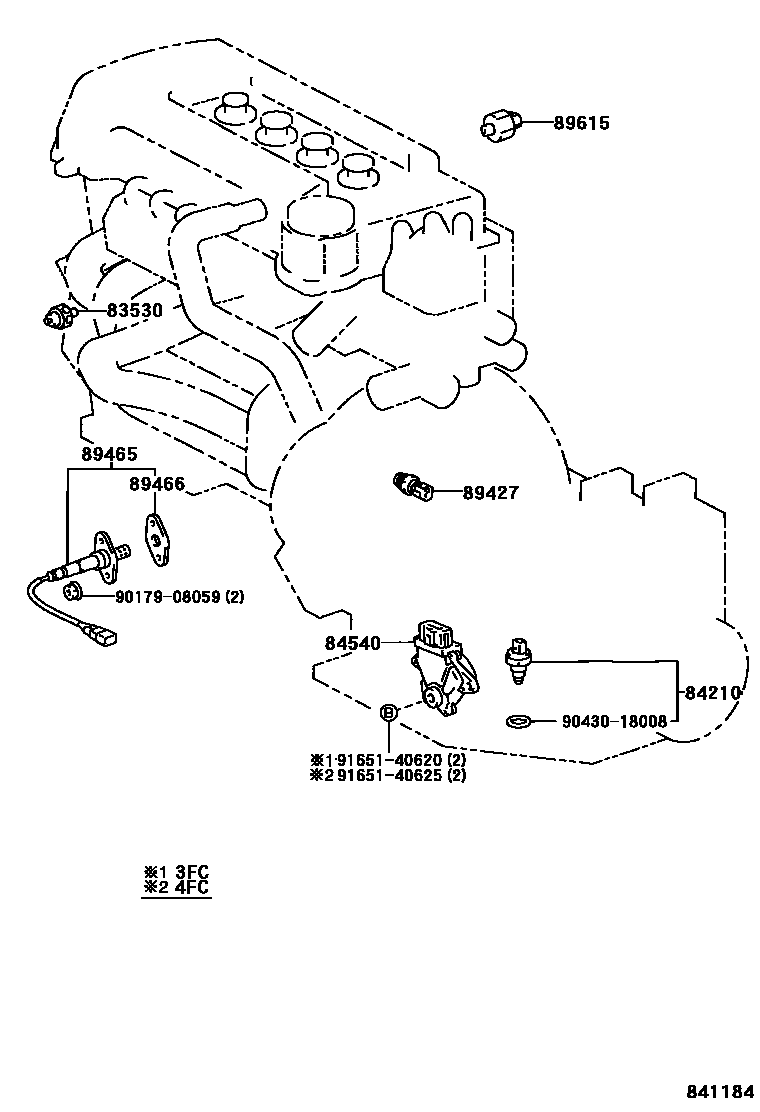

| 89465 | oxygen sensor | 89465-02030 · 89465-09200 · 89465-12510 · 89465-19715 · 89465-49125 |
| 89466 | Oxygen sensor pad | 89466-12020 |
| 89615 | knock control sensor | 89615-12120 |
| 89730 | Safety warning ECU assembly | 89730-02010 · 89730-02011 |
