Toyota COROLLA 倒车灯 — Figure 8112

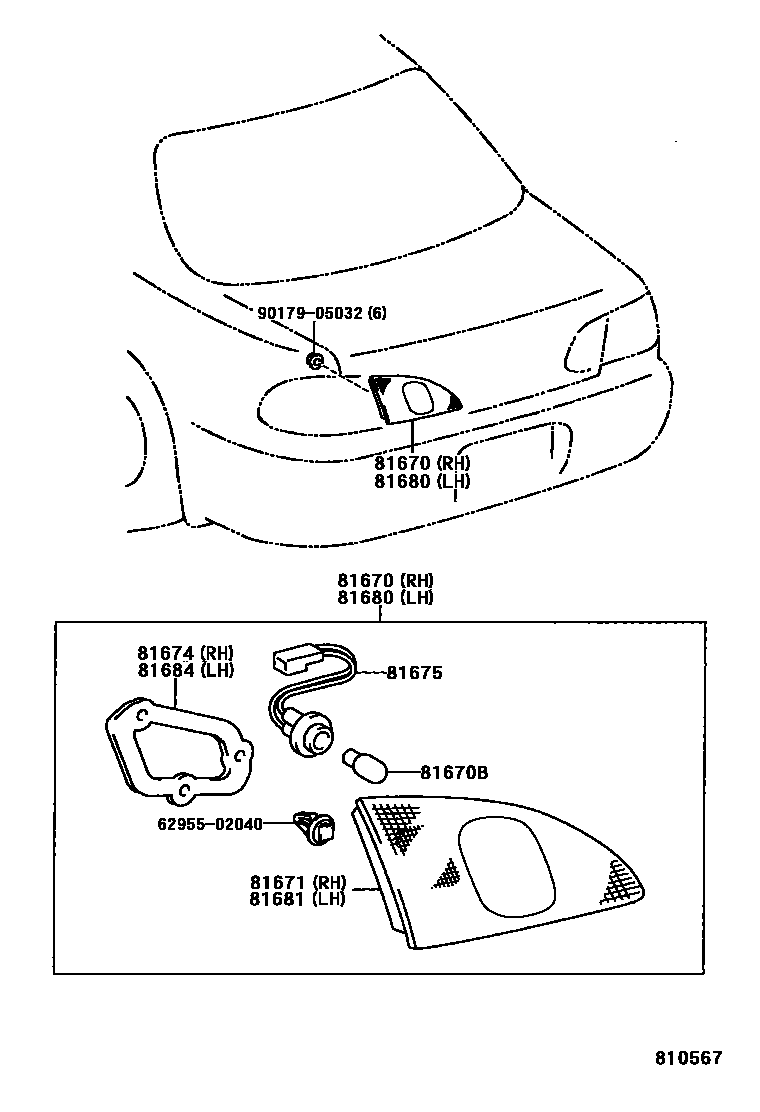

Toyota COROLLA EPC diagram 8112, 倒车灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670 | Right reversing light assembly | 81670-02010 · 81670-02020 |
| 81670B | Bulb (for reversing lights) | 90080-81065 · 90084-98039 |
| 81671 | Right reversing light cover | 81671-02010 · 81671-02020 |
| 81674 | Right reversing light body gasket | 81674-02010 |
| 81675 | Reversing light holder and wiring harness | 81675-02010 |
| 81680 | Left reversing light assembly | 81680-02010 · 81680-02020 |
| 81681 | Left reversing light cover | 81681-02010 · 81681-02020 |
| 81684 | Left reversing light body gasket | 81674-02010 |
