Toyota COROLLA 后组合灯 — Figure 8111

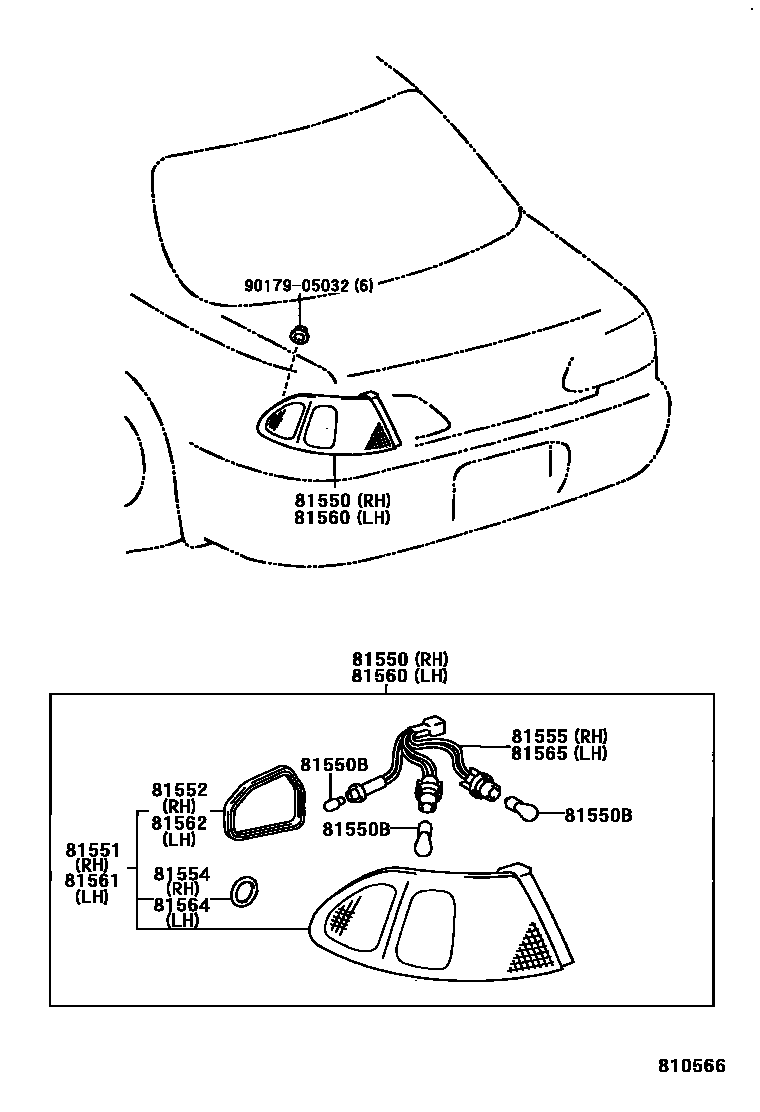

Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-02070 |
| 81550B | Bulb (for rear combination lights) | 90080-81073 · 90084-98036 · 90084-98037 |
| 81551 | Right rear combination lamp shade | 81551-02070 |
| 81552 | Right rear combination lamp shade gasket | 81552-02070 |
| 81554 | Right rear combination lamp body gasket | 81554-02070 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02070 |
| 81560 | Left rear combination light assembly | 81560-02070 |
| 81561 | Left rear combination lamp shade | 81561-02070 |
| 81562 | Left rear combination lamp shade gasket | 81562-02070 |
| 81564 | Left rear combination lamp body gasket | 81554-02070 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02070 |
