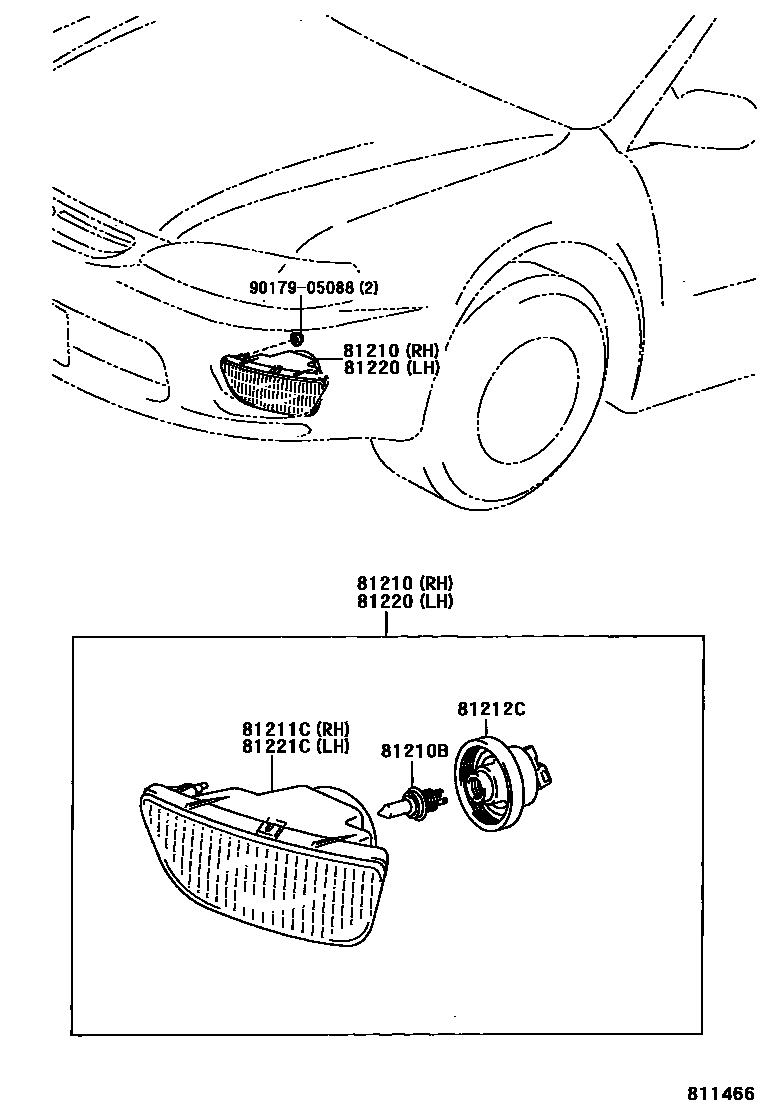

Toyota COROLLA Fog Lamp — Figure 8102
Toyota COROLLA EPC diagram 8102, Fog Lamp, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210 | Fog light assembly | 81210-02040 |
| 81210B | fog light bulb | 90080-81084 |
| 81211C | Right fog light assembly | 81211-02040 |
| 81212C | fog light cover | 90069-81009 |
| 81220 | Left fog light assembly | 81220-02030 |
| 81221C | Left fog light assembly | 81221-02030 |
