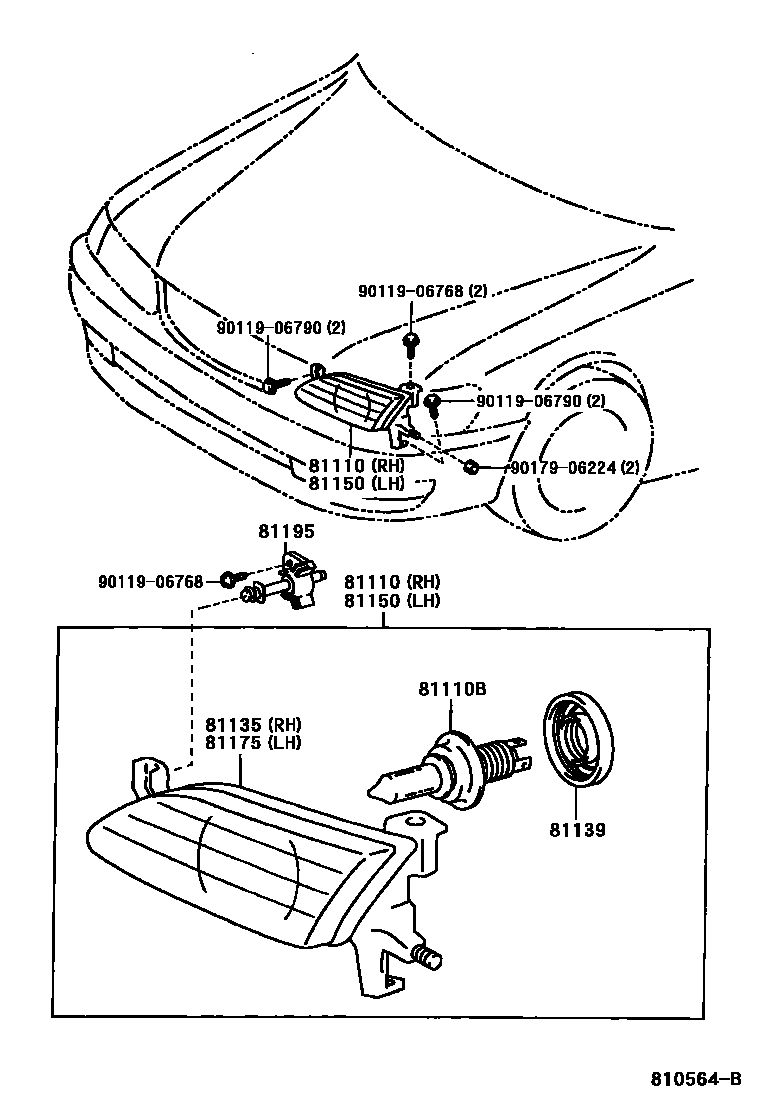

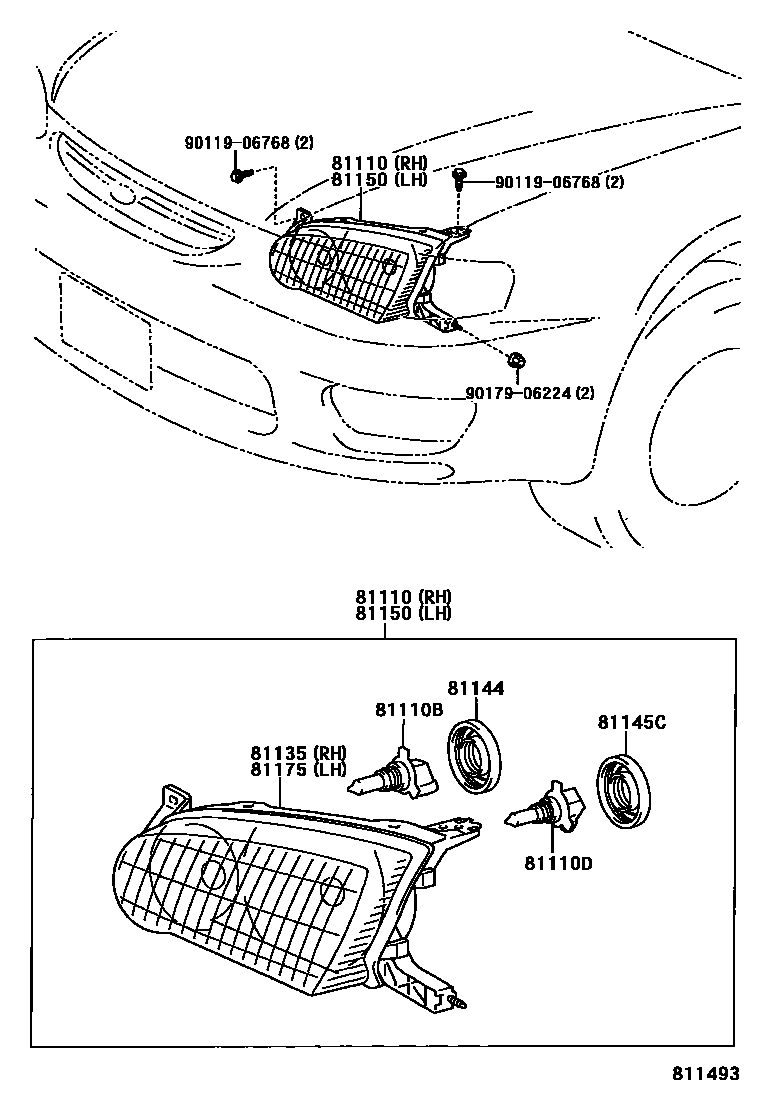

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-02060 · 81110-02110 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13058 |
| 81110D | Bulb (for headlight No. 2) | 90080-81040 |
| 81135 | Right headlight assembly | 81130-02060 · 81130-02110 |
| 81139 | Headlight lamp holder cover | 81139-02060 |
| 81144 | No. 1 headlight cover | 90069-81008 |
| 81145C | No. 2 headlight lamp holder cover | 90069-81008 |
| 81150 | Left headlight assembly | 81150-02050 · 81150-02100 |
| 81175 | Left headlight assembly | 81170-02050 · 81170-02100 |
| 81195 | headlight screw | 81195-02010 |
