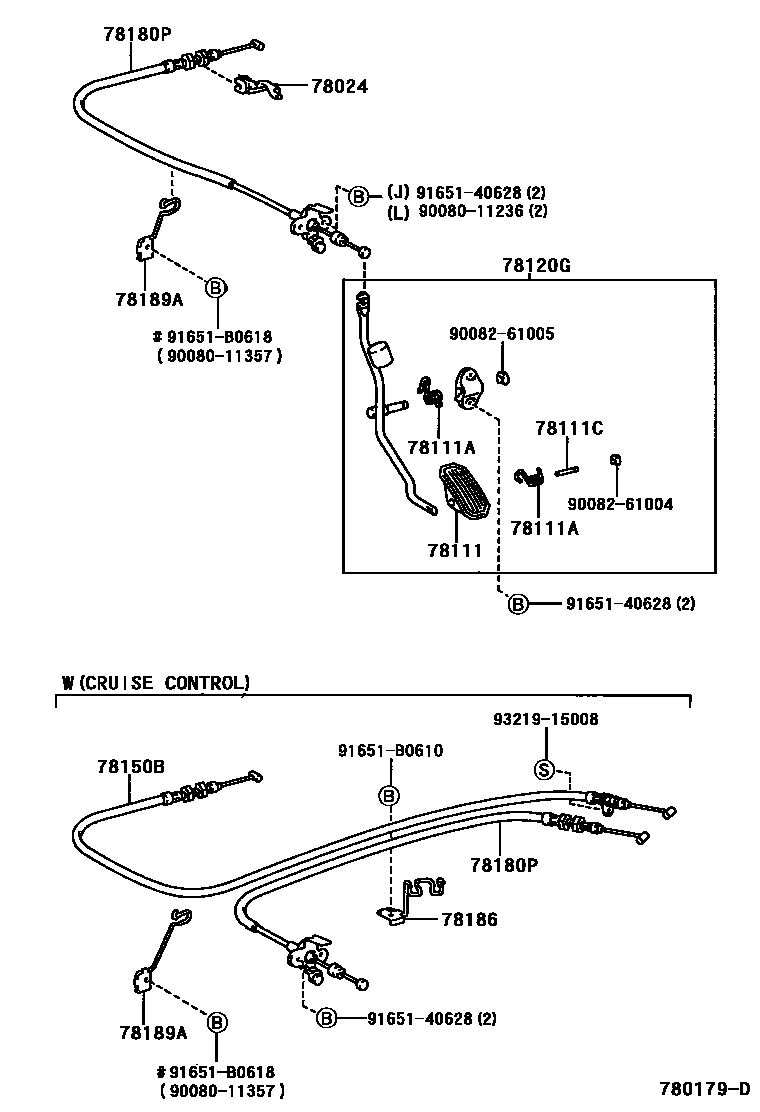

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-02010 · 78024-12060 |
| 78111 | accelerator pedal | 78111-01020 |
| 78111A | Spring (for gas pedal) | 90080-50027 · 90080-50029 |
| 78111C | pin (for gas pedal) | 90080-24008 |
| 78120G | Accelerator pedal lever assembly | 78120-02020 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-02020 |
| 78180P | Accelerator pedal control cable assembly | 78180-02040 · 78180-02050 · 78180-02120 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12270 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-12040 · 78189-12050 |
