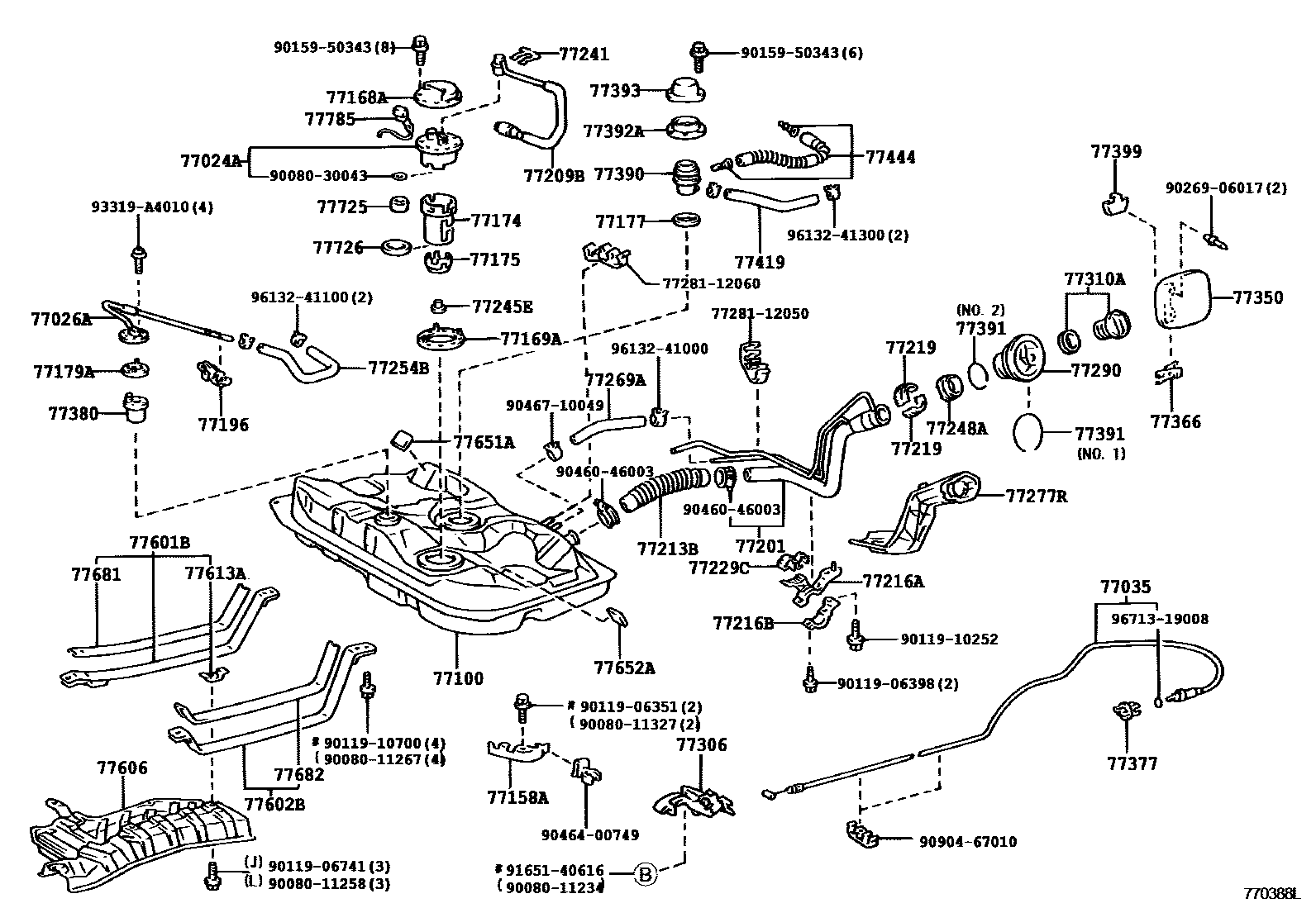

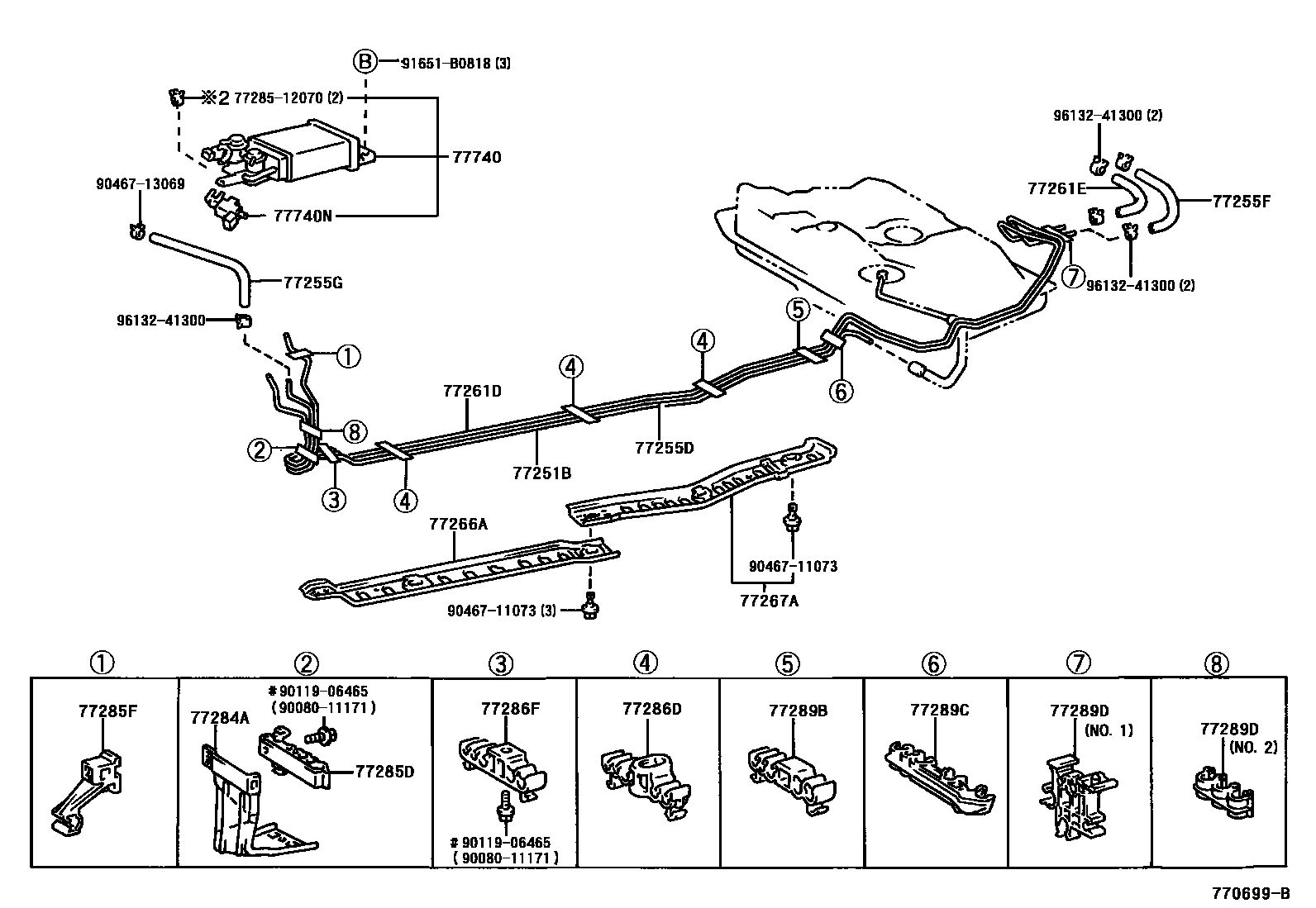

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 2 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77024A | Fuel absorber sub-assembly | 77024-02010 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-02010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02020 |
| 77100 | fuel tank assembly | 77001-02041 · 77001-02070 |
| 77158A | Fuel tank suction pipe bracket | 77158-12040 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-12240 |
| 77169A | Fuel suction pipe fixed gasket | 77169-02020 |
| 77174 | No. 1 oil suction pipe bracket | 77174-02010 |
| 77175 | No. 2 oil suction pipe bracket | 77175-02010 |
| 77177 | Check valve gasket | 77177-02010 |
| 77179A | fuel tank breather gasket | 77179-26010 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-02020 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-02010 · 77201-12560 |
| 77209B | Fuel pump pipe sub-assembly | 77209-02020 |
| 77213B | Fuel tank to filler pipe hose | 77213-02010 · 77213-12210 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77104-02010 · 77104-12010 |
| 77216B | No. 2 fuel tank filler pipe bracket | 77216-02010 · 77216-12070 |
| 77219 | Fuel tank filler pipe cap | 77219-06020 |
| 77229C | Snorkel clamp | 77229-02010 · 77229-12040 |
| 77241 | No. 1 main fuel pipe | 77241-02010 |
| 77245E | fuel tank suction cap | 77245-02010 |
| 77248A | Fuel tank filler pipe cap holder | 77248-06020 |
| 77251B | main fuel pipe | 77251-02080 |
| 77254B | No. 2 fuel hose (for No. 1 drain pipe) | 90080-44092 |
| 77255D | fuel return pipe | 77255-02080 · 77255-02090 |
| 77255G | No. 1 fuel return hose (for fuel return pipe) | 95333-08030 · 95333-08040 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02080 · 77261-02090 |
| 77266A | No. 1 fuel line protection device | 77266-02010 |
| 77267A | No. 2 fuel pipe protection device | 77267-02010 |
| 77269A | fuel tank breather hose | 77269-12040 · 90080-44090 |
| 77277R | Fuel tank filler pipe protection device | 77277-02040 |
| 77284A | No. 3 fuel pipe protection device | 77284-02030 |
| 77285D | No. 1 fuel pipe clamp | 77285-02030 |
| 77285F | No. 1 fuel pipe clamp | 77285-20120 |
| 77286D | No. 2 fuel pipe clamp | 77286-02040 |
| 77286F | No. 2 fuel pipe clamp | 77286-02050 |
| 77289B | No. 3 fuel pipe clamp | 77289-02030 |
| 77289C | No. 4 fuel pipe clamp | 77289-02040 |
| 77289D | No. 5 fuel pipe clamp | 77298-02020 · 77299-02010 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-12110 |
| 77310A | Fuel tank cap assembly | 77310-01012 · 77310-06020 |
| 77350 | Fuel filler cap assembly | 77350-12370 |
| 77366 | Fuel filler cap hinge spring | 77360-12080 |
| 77377 | Fuel filler cap lock retainer | 77377-02010 |
| 77380 | Fuel shut-off valve assembly | 77380-26010 |
| 77390 | Fuel tank inlet valve assembly | 77390-12010 · 77390-12011 |
| 77391 | fuel inlet ring | 77391-02030 · 77391-02040 |
| 77392A | One-way valve bracket | 77392-02010 |
| 77393 | One-way valve protection device | 77393-12020 |
| 77399 | Fuel tank cap hanger | 77399-12020 |
| 77419 | No. 3 fuel hose | 90080-44091 |
| 77444 | fuel tank vent hose | 77404-02010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-02020 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-02020 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-02010 |
| 77613A | No. 1 fuel tank strap bracket | 77613-02010 |
| 77651A | No. 1 fuel tank liner | 77651-02010 |
| 77652A | No. 2 fuel tank liner | 77652-02010 |
| 77681 | Fuel tank right side strap seat | 77681-02010 |
| 77682 | Fuel tank left side strap seat | 77681-02010 · 77682-02010 |
| 77725 | No. 1 fuel filter cushion | 77725-02010 |
| 77726 | No. 2 fuel filter cushion | 77726-02010 |
| 77740 | Carbon canister assembly | 77740-02070 · 77740-02100 · 77740-02101 · 77740-02102 |
| 77740N | Vacuum switching valve (for carbon canister) | 90080-91167 · 90080-91186 · 90910-12172 |
| 77785 | fuel pump wiring harness | 77785-02010 |
