Toyota COROLLA 侧防护条 — Figure 7503

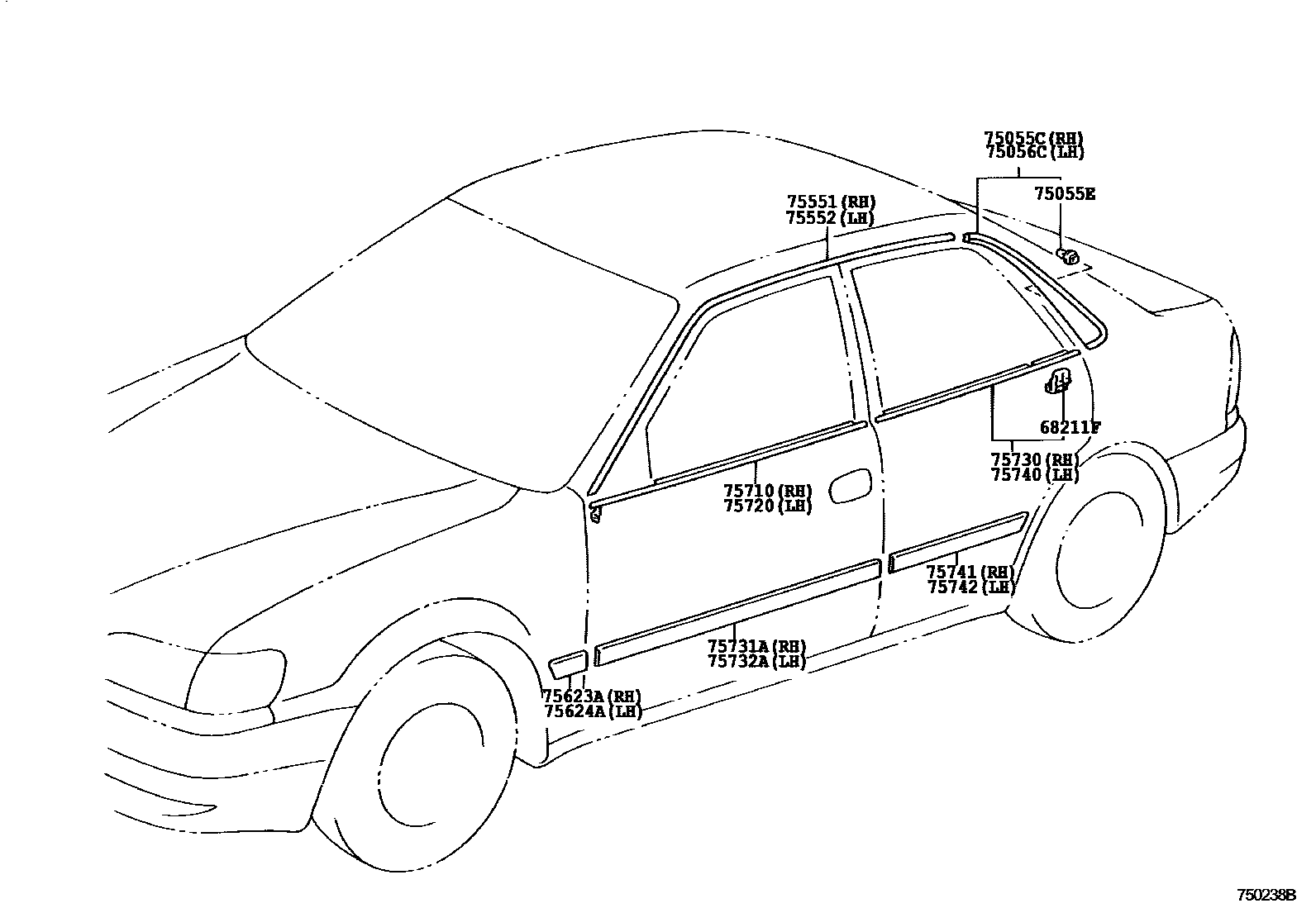

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68211F | Door glass seal strip clip | 68211-02090 · 68211-12240 |
| 75055C | Roof right rear gutter side decorative strip sub-assembly | 75055-02020 |
| 75055E | Roof drain gutter protection strip clip | 62955-12040 · 90080-46269 |
| 75056C | Roof left rear gutter side decorative strip sub-assembly | 75056-02020 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-02050 · 75551-02051 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-02050 · 75552-02051 |
| 75623A | Right front fender outer rear protective strip | 75623-02080 |
| 75624A | Left front fender outer rear protective strip | 75624-02080 |
| 75710 | Right front door waistline protection strip assembly | 75710-02050 |
| 75720 | Left front door waistline protection strip assembly | 75720-02050 |
| 75730 | Right rear door waistline protection strip assembly | 75730-02040 |
| 75731A | Right front door outer protective strip | 75731-02080 |
| 75732A | Left front door outer protective strip | 75732-02080 |
| 75740 | Left rear door waistline protection strip assembly | 75740-02040 |
| 75741 | Right rear door outer protective strip | 75741-02050 |
| 75742 | Left rear door outer protective strip | 75742-02050 |
