Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 5 PNC and OE references.

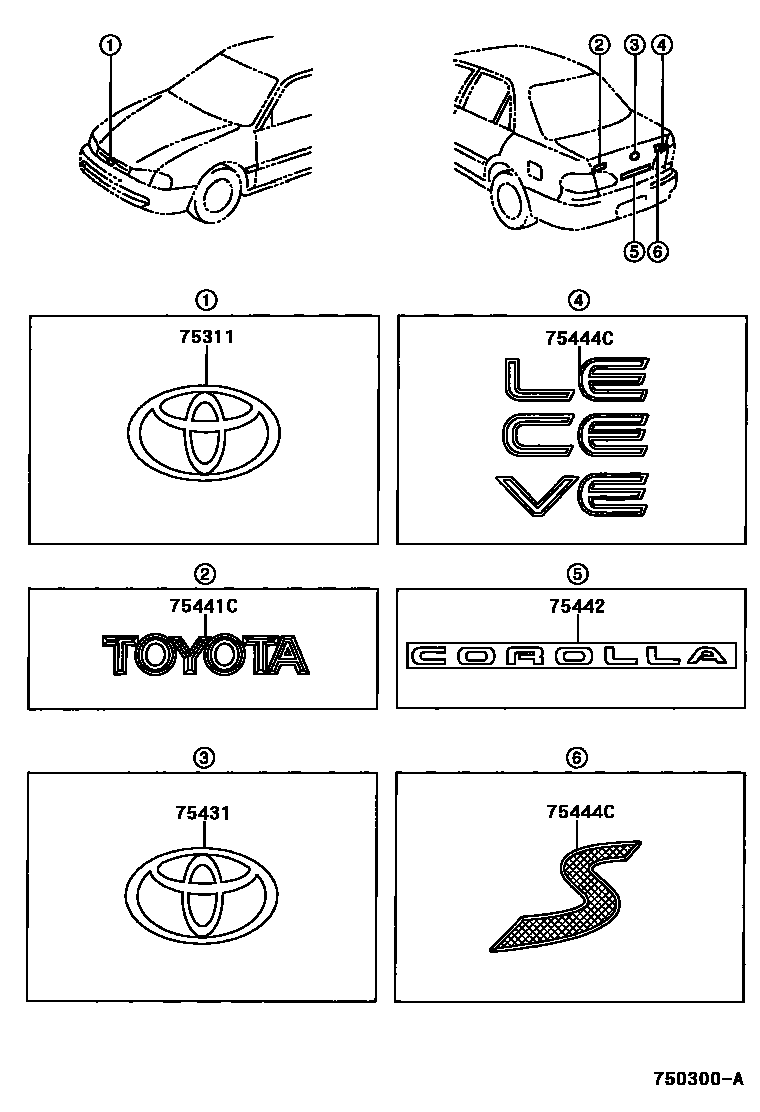

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 750300A
丰田徽标和铭牌(车外和车内) — 750300A (199708 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-02050 · 75311-02080
75431luggage compartment door sign75431-12050
75441CBack door nameplate75441-12770
75442Trunk door number plate No. 275442-02020
75444CTrunk door No. 4 nameplate75444-02080 · 75444-1A260 · 75444-1A270 · 75444-1A300
