Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

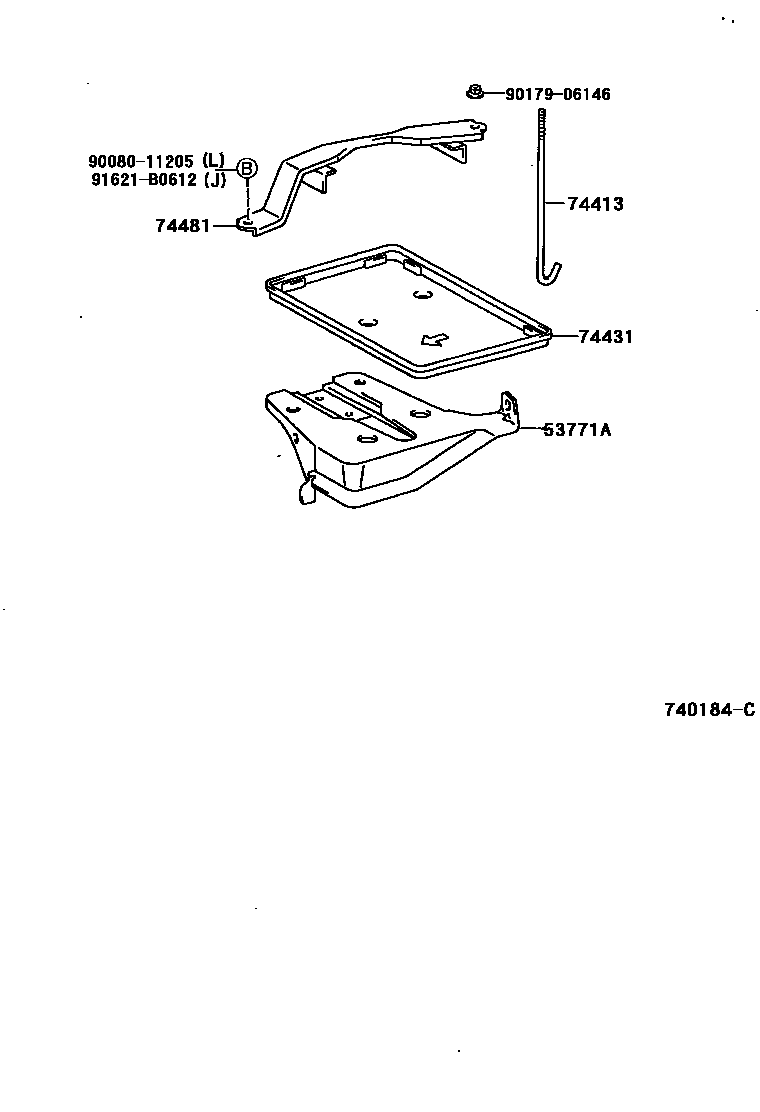

Toyota COROLLA battery holder EPC diagram — 740184C
battery holder — 740184C (199708 – 999999)

PNC and OE references

PNCPart nameOE numbers
53771Abattery holder bracket53771-13010
74413Battery clamp bolt74451-02020
74431battery tray74431-02020
74481Battery fixing clip74404-02020 · 74404-12340
