Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

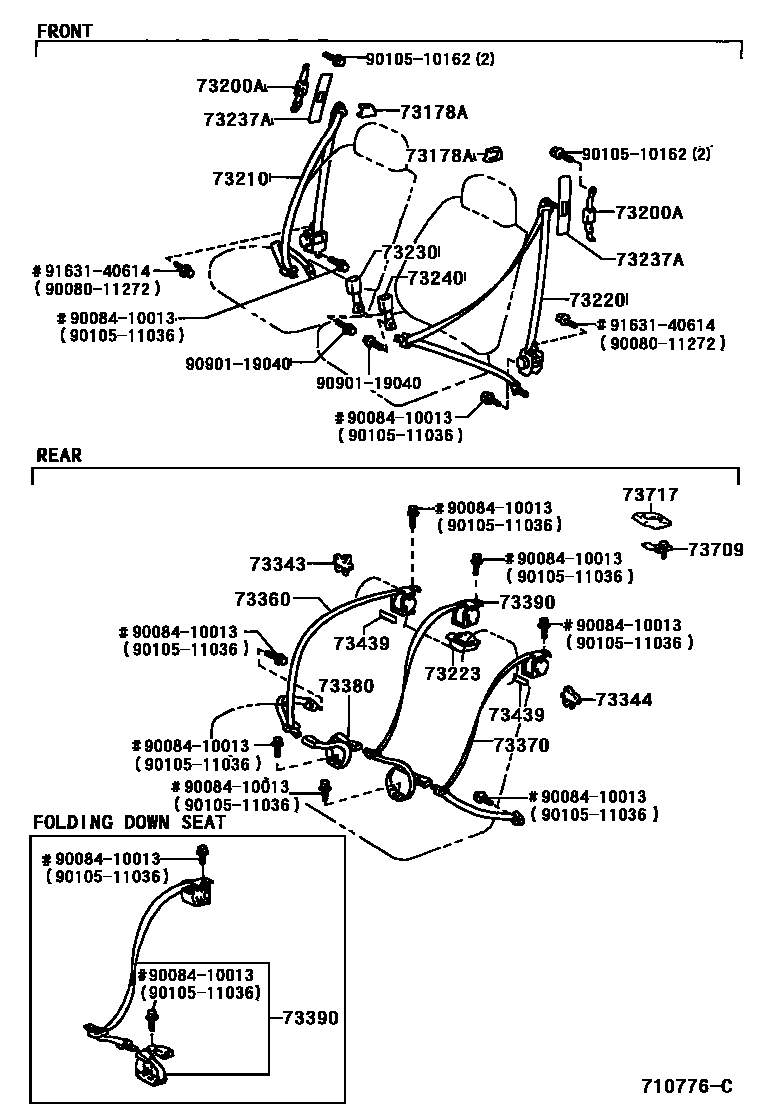

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73223 | seat belt retractor cover | 73223-02010 · 73223-02020 |
| 73439 | Rear seat belt retractor cushion | 73439-02010 |
| 73709 | Tie anchor bracket sub-assembly | 73708-12060 · 73708-50020 · 73709-20010 |
