Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

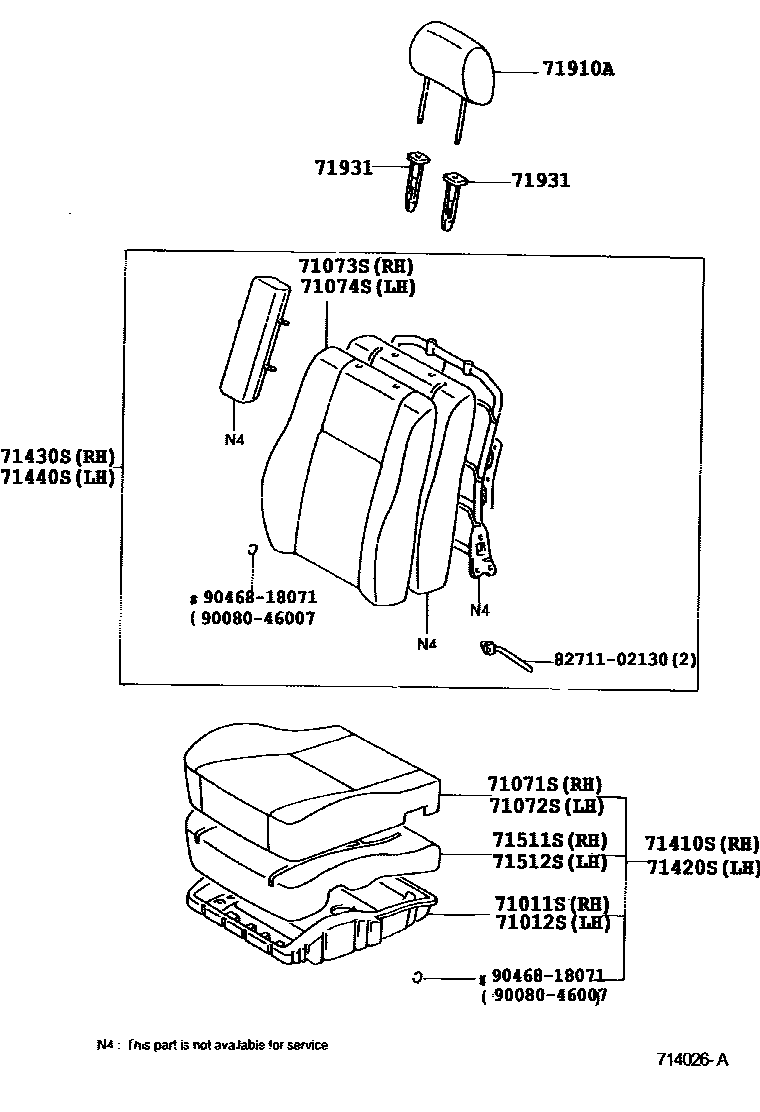

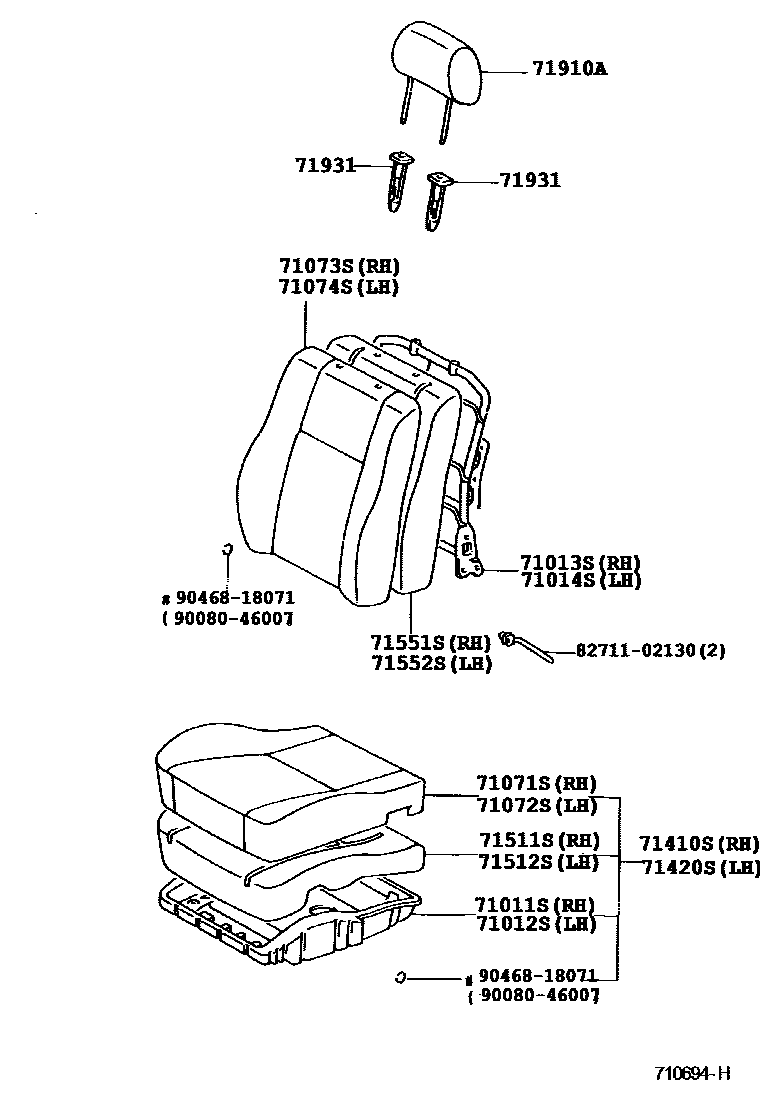

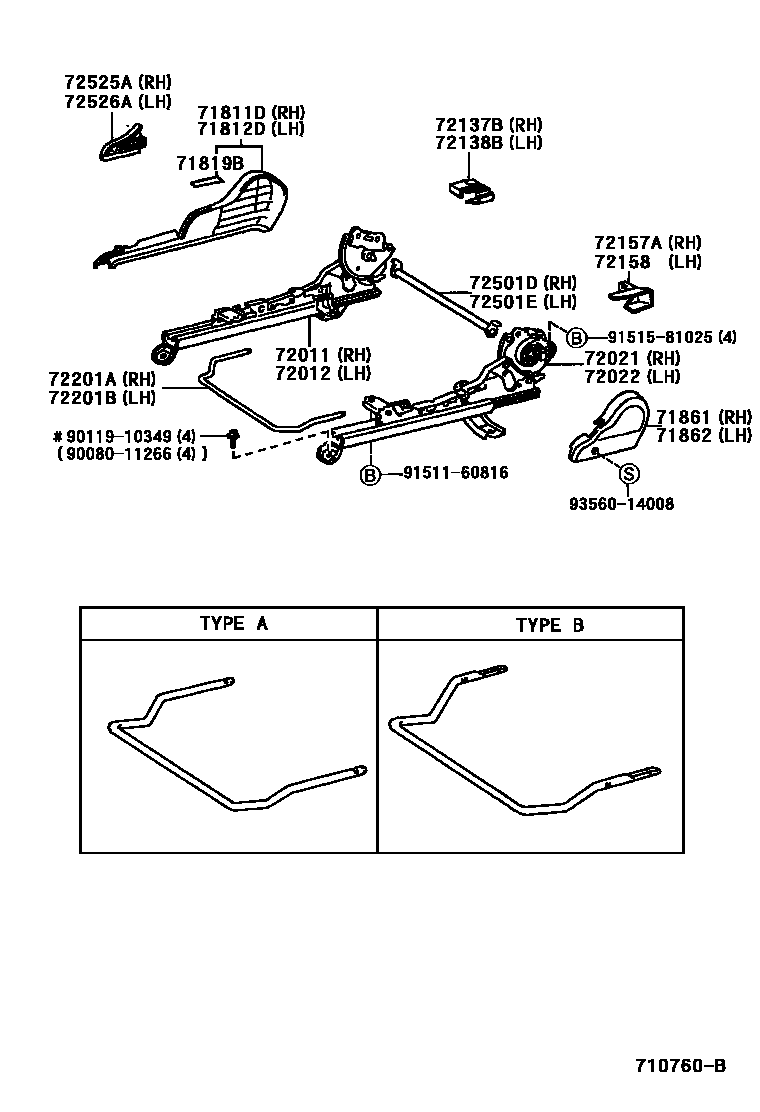

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-02020 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-02020 |
| 71013S | Front right seat back frame sub-assembly | 71013-02040 |
| 71014S | Front left seat back frame sub-assembly | 71013-02040 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-02040 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-02040 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02020 · 71551-02021 |
| 71552S | Front left seat back cushion (for split seats) | 71551-02020 · 71551-02021 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-02030 · 72011-02040 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-02030 · 72012-02040 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-02030 · 72021-02040 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-02030 · 72022-02040 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-02020 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-02010 · 72201-02020 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72345-02010 · 72345-02020 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72345-02010 · 72345-02020 |
