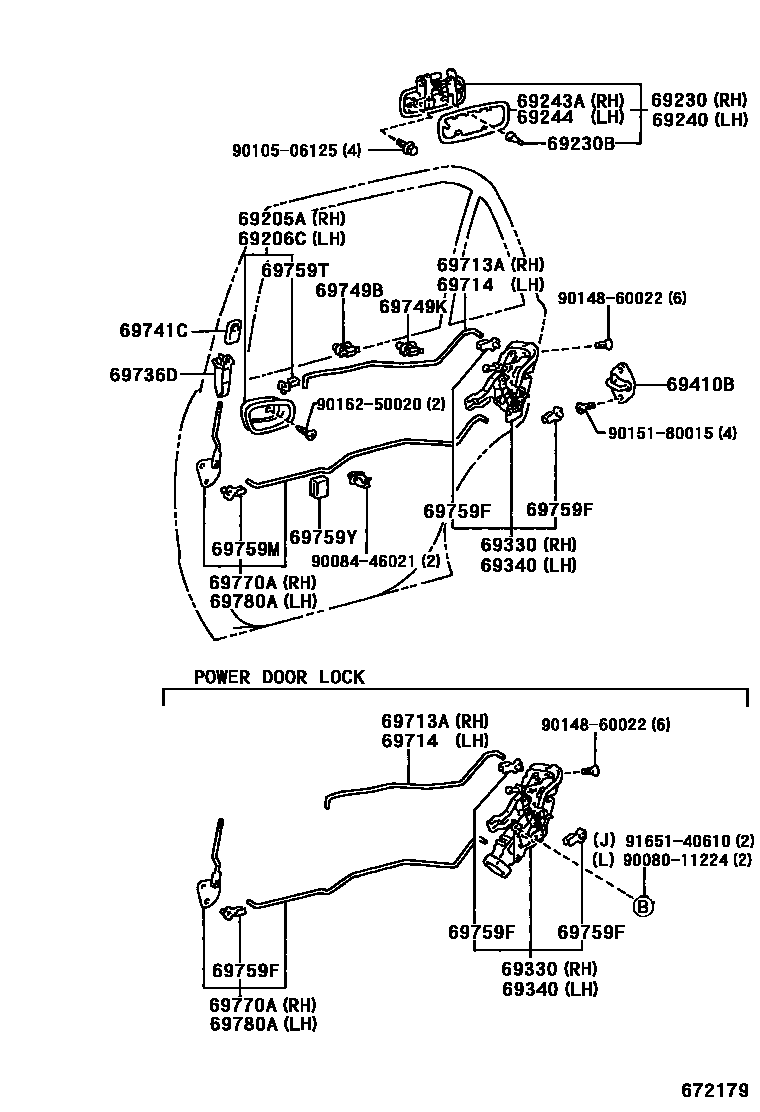

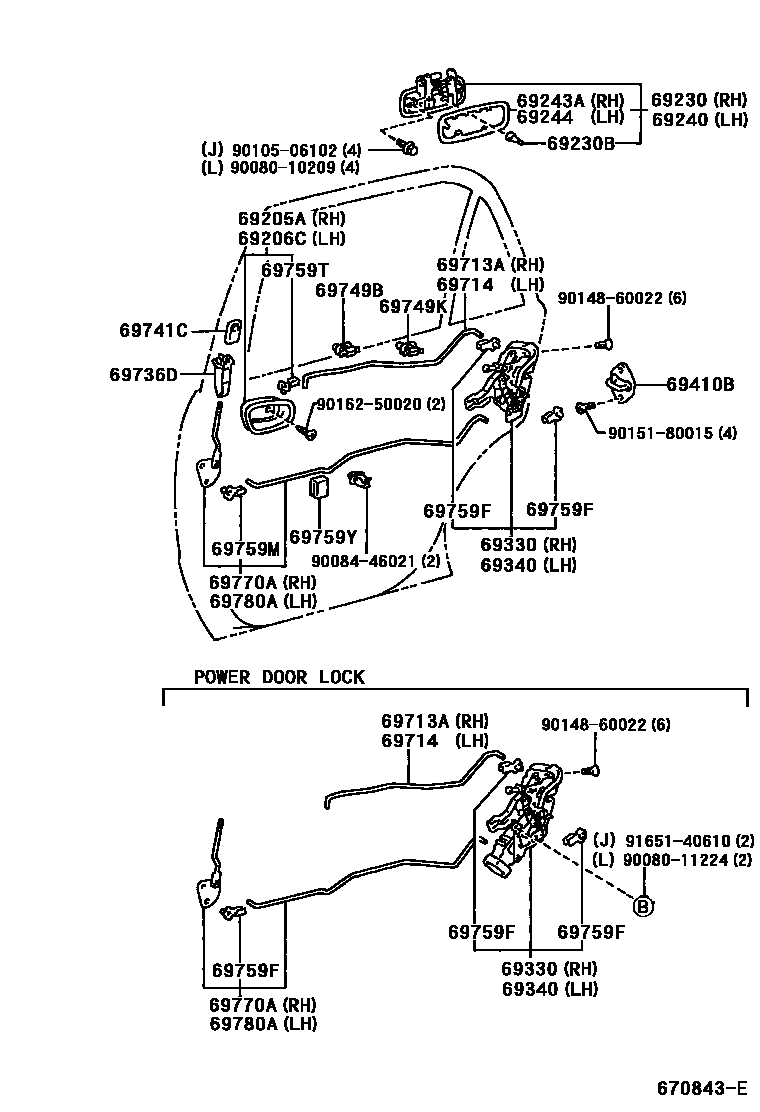

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69230 | Right rear door outer handle assembly | 69230-02030 |
| 69230B | Cushion pad (for rear door outer handle) | 90080-54005 |
| 69240 | Left rear door outer handle assembly | 69240-02030 |
| 69243A | Right rear door outer handle pad | 69243-02020 |
| 69244 | Left rear door outer handle pad | 69244-02020 |
| 69330 | Right rear door door lock assembly | 69305-02040 · 69305-02050 · 69305-02070 · 69305-02080 · 69305-02090 |
| 69340 | Left rear door lock assembly | 69306-02040 · 69306-02050 · 69306-02070 · 69306-02080 · 69306-02090 |
| 69410B | Rear door lock plate assembly | 69410-02020 · 69410-02030 |
| 69713A | Right rear door lock remote control lever | 69713-02020 · 69713-02030 |
| 69714 | Left rear door lock remote control lever | 69714-02020 · 69714-02030 |
| 69736D | Rear door locking link guide block | 69736-12140 |
| 69749B | Rear door lock link clamp | 90467-04014 |
| 69749K | Rear door lock clip | 90467-08117 |
| 69759F | Rear door lock control link buckle | 69759-20040 · 69759-20050 |
| 69759M | Door lock control link buckle | 69759-20020 · 69759-20030 |
| 69759T | Rear door inner handle buckle | 69759-01030 · 69759-01040 |
| 69759Y | Rear door lock link silencer | 69759-20390 |
| 69770A | Right rear door inner locking link assembly | 69770-02020 · 69770-02030 |
| 69780A | Left rear door inner locking link assembly | 69780-02020 · 69780-02030 |
