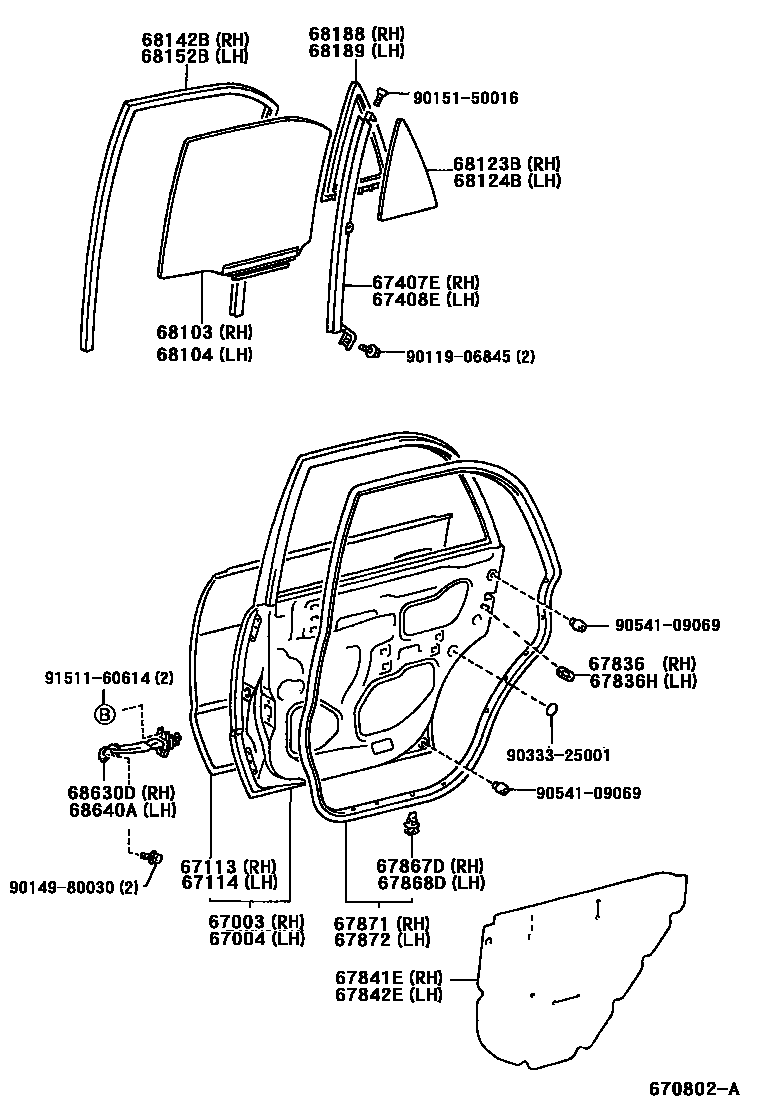

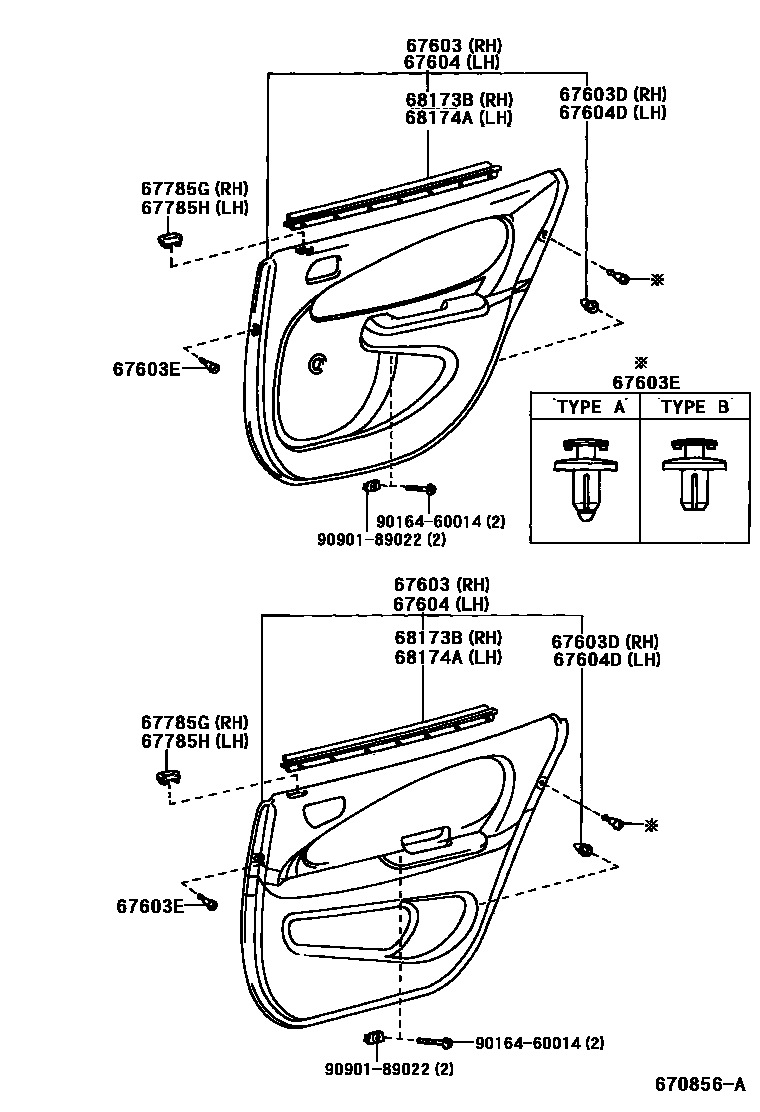

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-02110 · 67003-02120 |
| 67004 | Left rear door panel sub-assembly | 67004-02110 · 67004-02120 |
| 67113 | Right rear door outer panel | 67113-02040 |
| 67114 | Left rear door outer panel | 67114-02040 |
| 67407E | Right rear door window divider sub-assembly | 67407-12250 |
| 67408E | Left rear door window divider sub-assembly | 67408-12250 |
| 67603D | Right rear door trim panel fixing | 67771-02030 |
| 67604D | Left rear door trim panel fixing | 67771-02030 |
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-02050 |
| 67842E | Left rear door access hole cover | 67842-02030 |
| 67867D | Right rear door seal strip fixing | 67868-02020 |
| 67868D | Left rear door seal strip fixing | 67868-02020 |
| 67871 | Right rear door sealing strip | 67871-02040 |
| 67872 | Left rear door sealing strip | 67872-02040 |
| 68103 | Right rear door glass sub-assembly | 68103-02040 |
| 68104 | Left rear door glass sub-assembly | 68104-02040 |
| 68123B | Right rear door corner window glass | 68123-02040 |
| 68124B | Left rear door corner window glass | 68124-02040 |
| 68142B | Right rear door window lift chute | 68142-02030 |
| 68152B | Left rear door window lift chute | 68152-02030 |
| 68173B | Right rear door glass inner sealing strip | 68173-02060 |
| 68174A | Left rear door glass inner sealing strip | 68174-02030 |
| 68188 | Right rear door corner window seal | 68188-02020 |
| 68189 | Left rear door corner window seal | 68189-02020 |
| 68630D | Right rear door opening limiter assembly | 68630-02030 |
| 68640A | Left rear door opening limiter assembly | 68640-02030 |
