VOCR EPC

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 3 PNC and OE references.

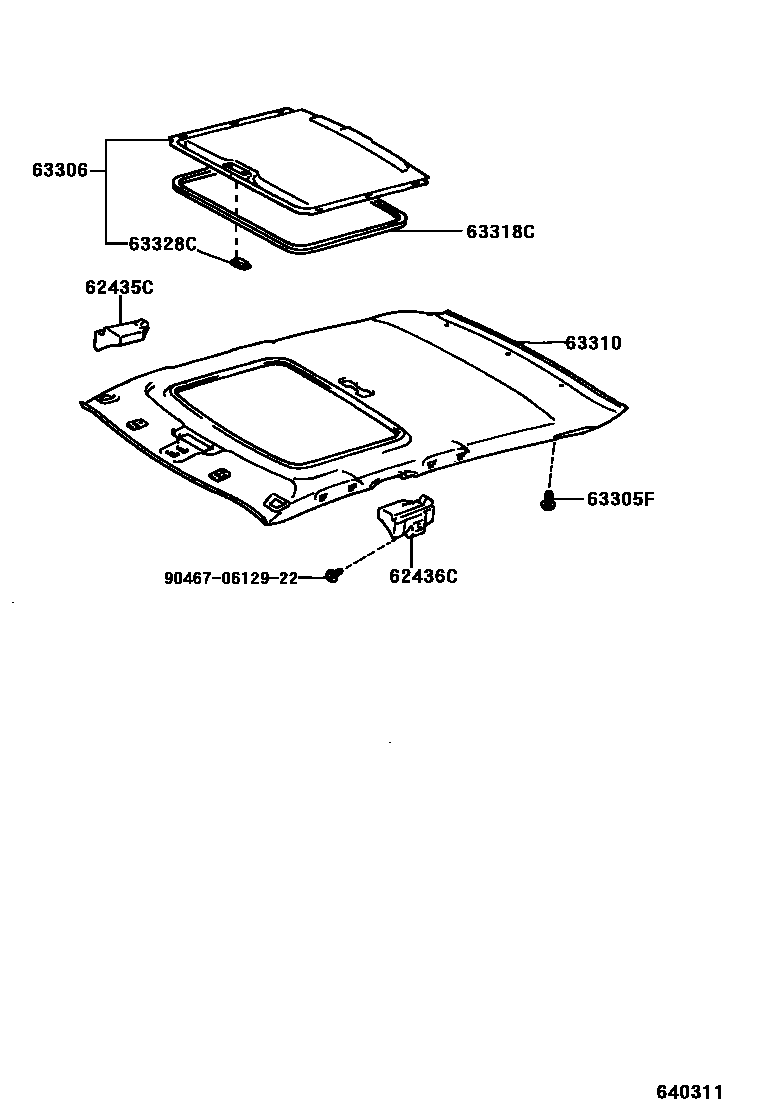

Toyota COROLLA 车顶内衬和消声垫 EPC diagram — 640311
车顶内衬和消声垫 — 640311 (199708 – 999999)

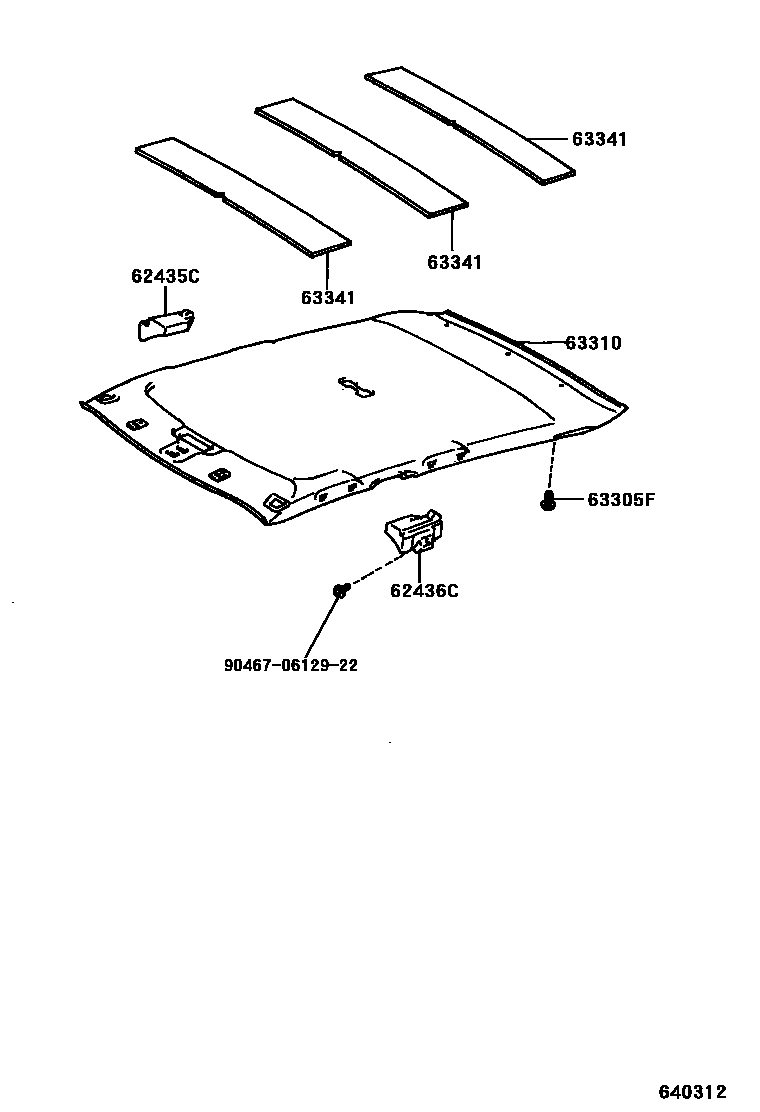

Toyota COROLLA 车顶内衬和消声垫 EPC diagram — 640312
车顶内衬和消声垫 — 640312 (199708 – 999999)

PNC and OE references

PNCPart nameOE numbers
62435CRoof right side rail decorative pad62435-12010 · 62435-12011 · 62435-12030 · 62435-12031
62436CRoof left side rail decorative pad62436-12010 · 62436-12011 · 62436-12030 · 62436-12031
63341No. 1 roof silencer mat63342-02040
