Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

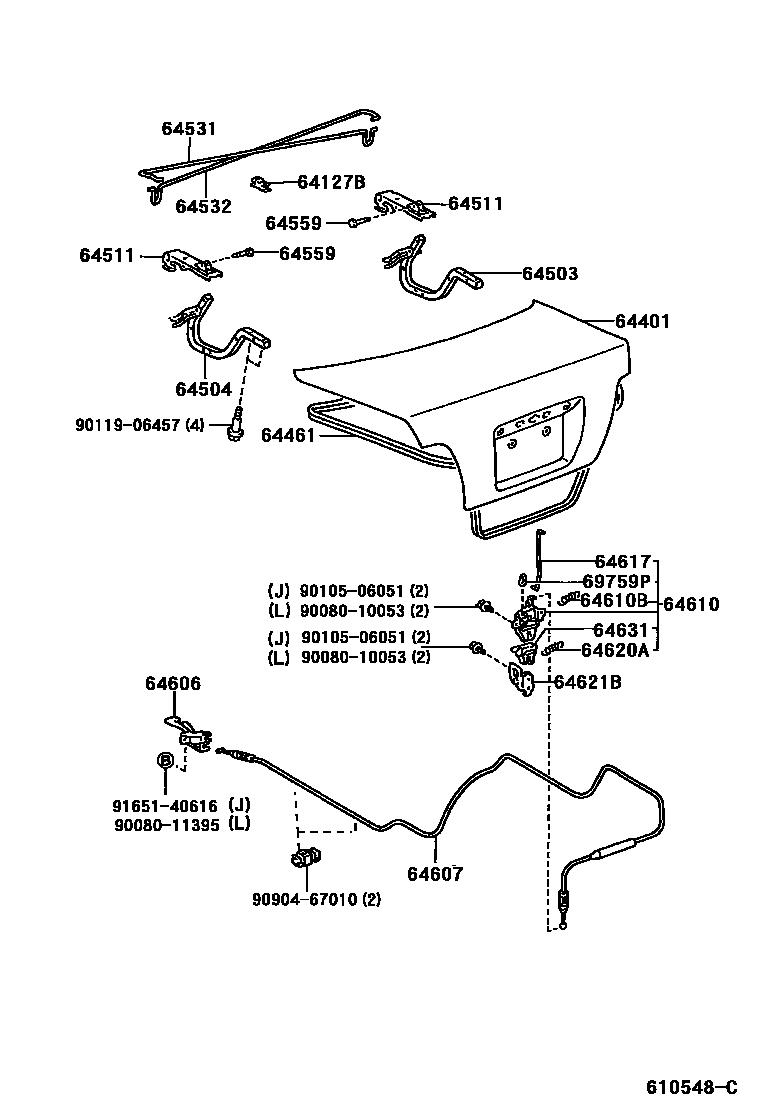

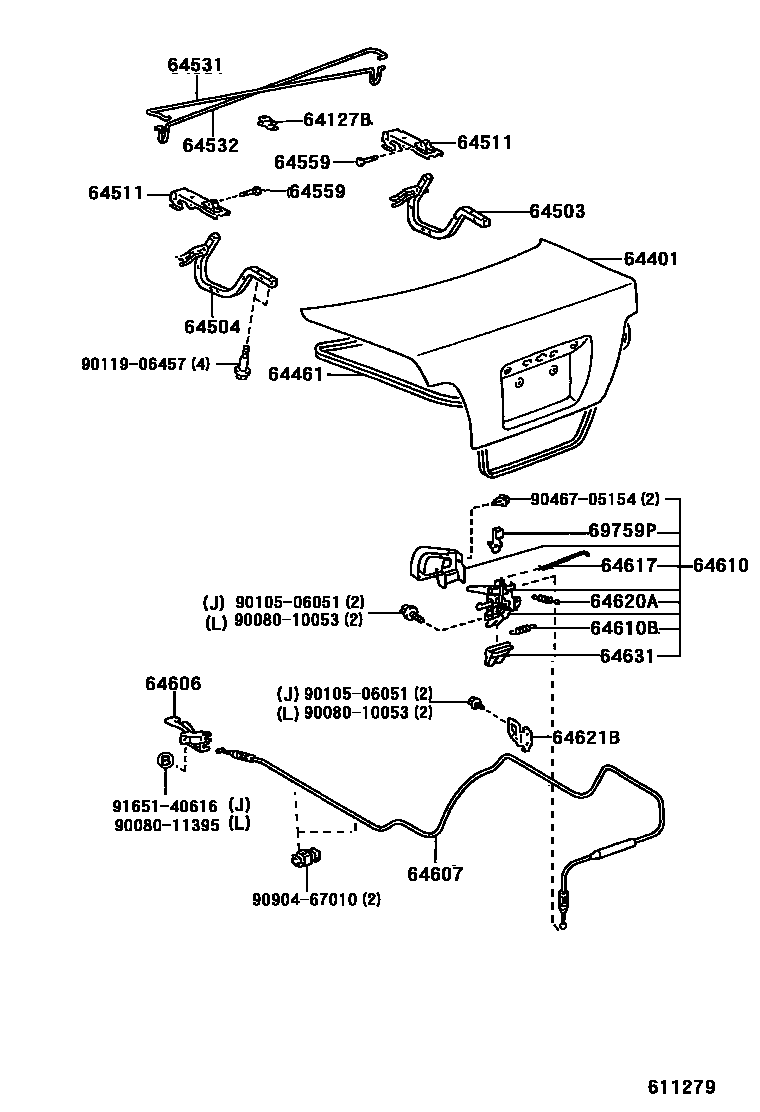

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33041 |
| 64401 | Trunk door panel sub-assembly | 64401-02060 |
| 64461 | Trunk door seal | 64461-02050 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02030 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02030 |
| 64511 | Trunk door right hinge bracket | 64511-02020 |
| 64531 | Trunk door right hinge torsion bar | 64531-02030 |
| 64532 | Trunk door left hinge torsion bar | 64532-02030 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-02010 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02030 |
| 64610 | Trunk door lock assembly | 64610-02040 · 64610-02060 |
| 64610B | Tension spring (for trunk door lock) | 90080-50097 |
| 64617 | Trunk door lock linkage | 64617-02040 |
| 64620A | Tension spring (for trunk door lock) | 90080-50128 |
| 64621B | Trunk door latch | 64621-01020 |
| 64631 | Trunk door lock protector | 64631-02020 |
| 69759P | Door lock control link buckle | 69759-03010 |
