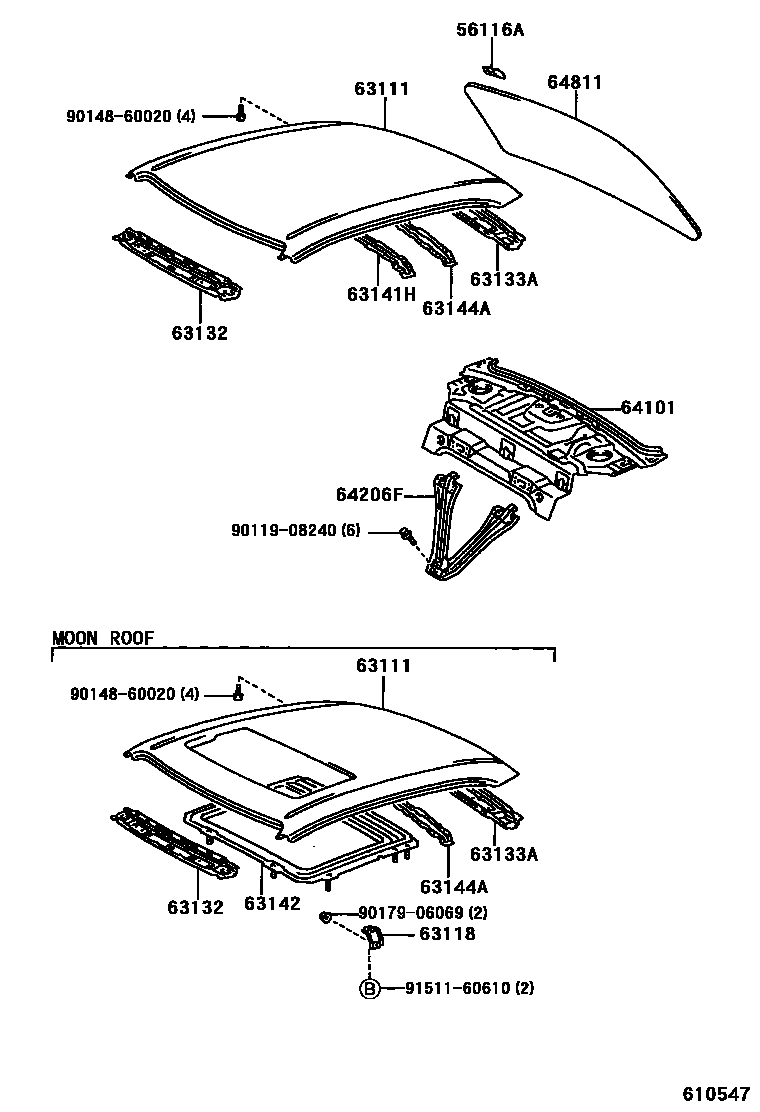

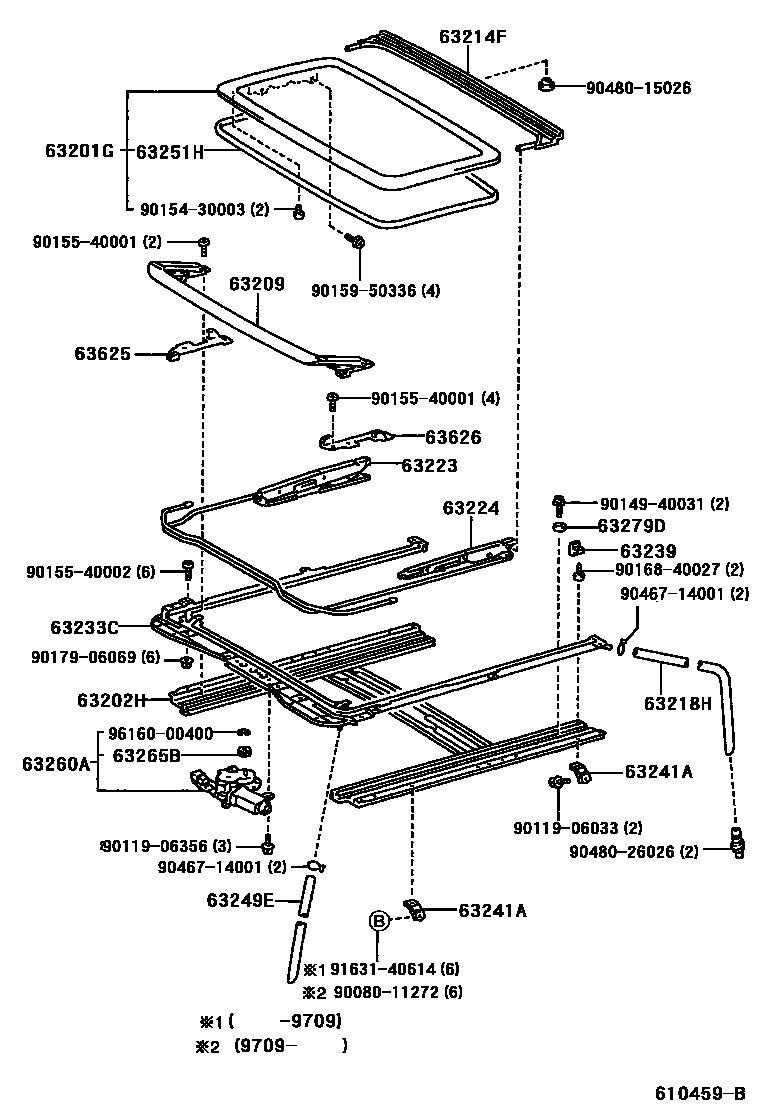

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56116A | windshield spacer | 56116-35050 |
| 63111 | roof panel | 63111-02070 · 63111-02080 |
| 63118 | Right roof panel bracket | 63118-12070 |
| 63132 | Windshield inner roof panel | 63132-02020 |
| 63133A | upper frame of back window | 63133-02010 |
| 63141H | Center roof panel reinforcement | 63141-02020 |
| 63142 | No. 2 roof panel reinforcement | 63142-12080 |
| 63144A | No. 4 roof panel reinforcement | 63144-12050 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-02020 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-02010 |
| 63209 | Roof deflector sub-assembly | 63209-12150 |
| 63214F | Roof rear drain channel | 63214-12070 |
| 63218H | Sliding skylight drain hose | 63249-02030 · 63249-02040 |
| 63223 | Right sliding sunroof transmission cable | 63223-02020 |
| 63224 | Left sliding sunroof transmission cable | 63224-02020 |
| 63233C | Sliding skylight shelf | 63233-12100 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-02020 |
| 63249E | Sliding skylight drain hose | 63249-02040 |
| 63251H | Sliding skylight seal | 63251-02020 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12090 |
| 63265B | Sliding sunroof driving gear | 63265-12040 |
| 63279D | Sliding sunroof guide rail stop | 63279-12030 |
| 63625 | Right sliding sunroof guide block | 63625-12050 |
| 63626 | Left sliding sunroof guide block | 63626-12050 |
| 64101 | Upper back panel sub-assembly | 64101-02060 · 64101-02070 |
| 64206F | Car partition sub-assembly | 64206-02010 |
| 64811 | back window glass | 64811-02100 · 64811-02110 · 64811-02120 |
