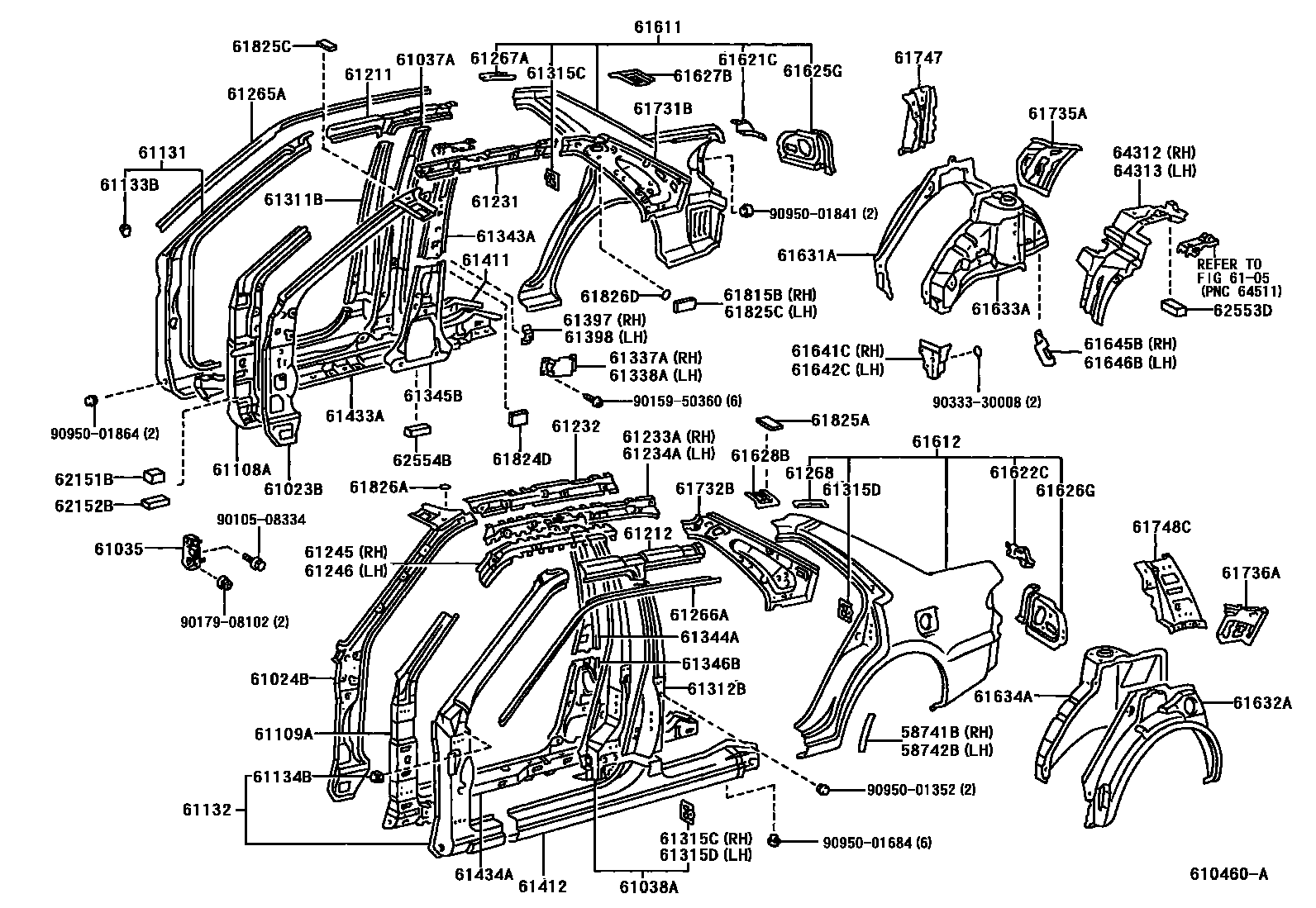

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 1 images and 75 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-02010 |
| 58742B | Left side enclosure protection panel | 58742-02010 |
| 61023B | Right body inner front pillar sub-assembly | 61023-02050 |
| 61024B | Left body inner front pillar sub-assembly | 61024-02050 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61035-12090 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12902 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12902 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-02020 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-02020 |
| 61131 | Right body outer front upper pillar | 61131-02030 · 61131-02040 |
| 61132 | Left body outer front upper pillar | 61132-02040 · 61132-02050 · 61132-02060 · 61132-02070 |
| 61133B | Right body outer front pillar bracket | 61133-12190 |
| 61134B | Left body outer front pillar bracket | 61133-12190 |
| 61211 | Roof right outer longitudinal beam | 61211-02030 |
| 61212 | Roof left outer longitudinal beam | 61212-02030 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-02020 · 61231-02021 |
| 61232 | Roof left inner longitudinal beam | 61232-02020 · 61232-02021 |
| 61233A | No. 2 longitudinal beam inside the right side of the roof | 61233-02010 · 61233-02011 · 61233-02020 · 61233-02021 |
| 61234A | No. 2 longitudinal beam on the inner left side of the roof | 61234-02010 · 61234-02011 · 61234-02020 · 61234-02021 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-02010 · 61245-02020 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-02010 · 61246-02020 |
| 61265A | Drainage channel in the middle section on the right side of the roof | 61265-12230 |
| 61266A | Drainage channel in the middle section of the left side of the roof | 61266-12230 |
| 61267A | Roof right rear gutter | 61267-12230 |
| 61268 | Roof left rear gutter | 61268-12230 |
| 61311B | Right body outer center pillar | 61311-02020 |
| 61312B | Left body outer center pillar | 61312-02020 |
| 61315C | Right door latch fastener | 61315-22020 |
| 61315D | Left door latch fastener | 61315-22020 |
| 61337A | Right body inner center pillar reinforcement | 61337-12160 |
| 61338A | Left body inner center pillar reinforcement | 61338-12100 |
| 61343A | Right body inner center pillar | 61343-02010 · 61343-02020 |
| 61344A | Left body inner center pillar | 61344-02010 · 61344-02020 |
| 61345B | Right body inner middle and lower pillar | 61345-02010 |
| 61346B | Left side inner middle and lower pillar | 61346-02010 |
| 61397 | Right body inner center pillar lining | 61397-12060 |
| 61398 | Left body inner center pillar lining | 61397-12060 |
| 61411 | Right door outer sill panel | 61411-02040 · 61411-02050 |
| 61412 | Left door outer sill panel | 61412-02040 · 61412-02050 |
| 61433A | Right door outer sill reinforcement | 61433-02900 |
| 61434A | Left door outer sill reinforcement | 61434-02900 |
| 61611 | Right side hoarding | 61601-02906 · 61601-02907 · 61601-02908 · 61601-02909 |
| 61612 | left side panel | 61602-02906 · 61602-02907 |
| 61621C | Luggage right opening slot | 61621-02020 |
| 61622C | Luggage trunk left opening slot | 61622-02020 |
| 61625G | Right rear side panel extension | 61625-02010 |
| 61626G | Left rear side panel extension | 61626-02010 |
| 61627B | Right rear side panel extension | 61627-02010 |
| 61628B | Extension on left rear side panel | 61628-02010 |
| 61631A | Right wheel cover outer panel | 61631-02030 |
| 61632A | Left side wheel cover outer panel | 61632-02030 |
| 61633A | Right wheel housing lining panel | 61607-02907 |
| 61634A | Left side wheel housing lining panel | 61608-02907 |
| 61641C | Right front side wheel housing corner panel | 61641-02010 · 61641-12070 |
| 61642C | Left front side wheel housing corner panel | 61642-02010 · 61642-12070 |
| 61645B | Right rear side wheel housing corner panel | 61645-02010 |
| 61646B | Left rear side wheel housing corner panel | 61646-02010 |
| 61731B | Roof right inner panel | 61731-02030 |
| 61732B | Roof left inner panel | 61732-02030 |
| 61735A | Right rear roof inner panel | 61735-02020 |
| 61736A | Left rear roof inner panel | 61736-02020 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-02030 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-02030 |
| 61815B | Right inner upper cover of the roof | 61815-02020 |
| 61824D | Noise Control Panel No. 1 | 61824-50020 |
| 61825A | Noise Control Panel No. 2 | 61815-32020 |
| 61825C | No. 2 silencer panel gasket | 61815-32020 |
| 61826A | Noise Control Panel No. 3 | 61824-12040 |
| 61826D | Noise Control Panel No. 3 | 61824-12040 |
| 62151B | Front cowl side silencer pads | 62151-12130 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62553D | No. 3 column pad | 62555-12050 |
| 62554B | No. 4 column pad | 62554-12150 |
| 64312 | Glove box right bracket | 64301-02030 · 64301-02040 |
| 64313 | Glove box left bracket | 64302-02030 |
