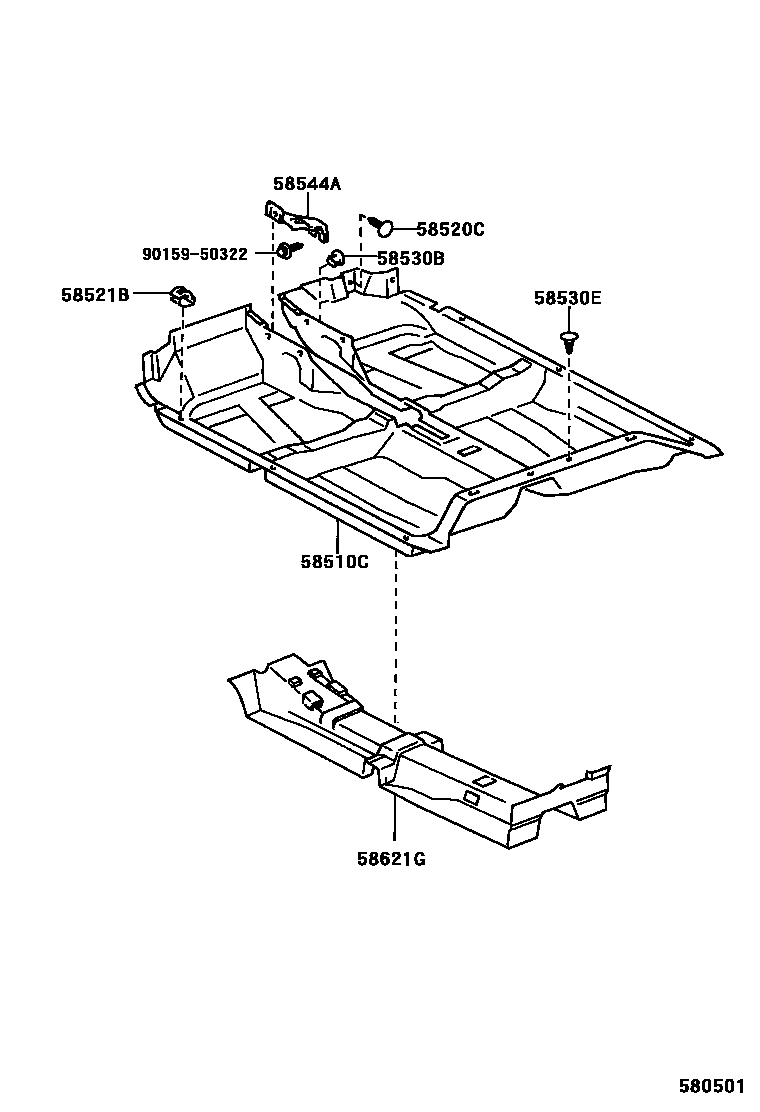

Toyota COROLLA 地板垫和地毯 — Figure 5804
Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58521B | carpet hook | 58521-02020 |
| 58530B | Clip (for front carpet) | 90467-09118 |
| 58544A | left carpet bracket | 58544-12040 |
| 58621G | Front floor right muffler pad | 58621-02010 |
