Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

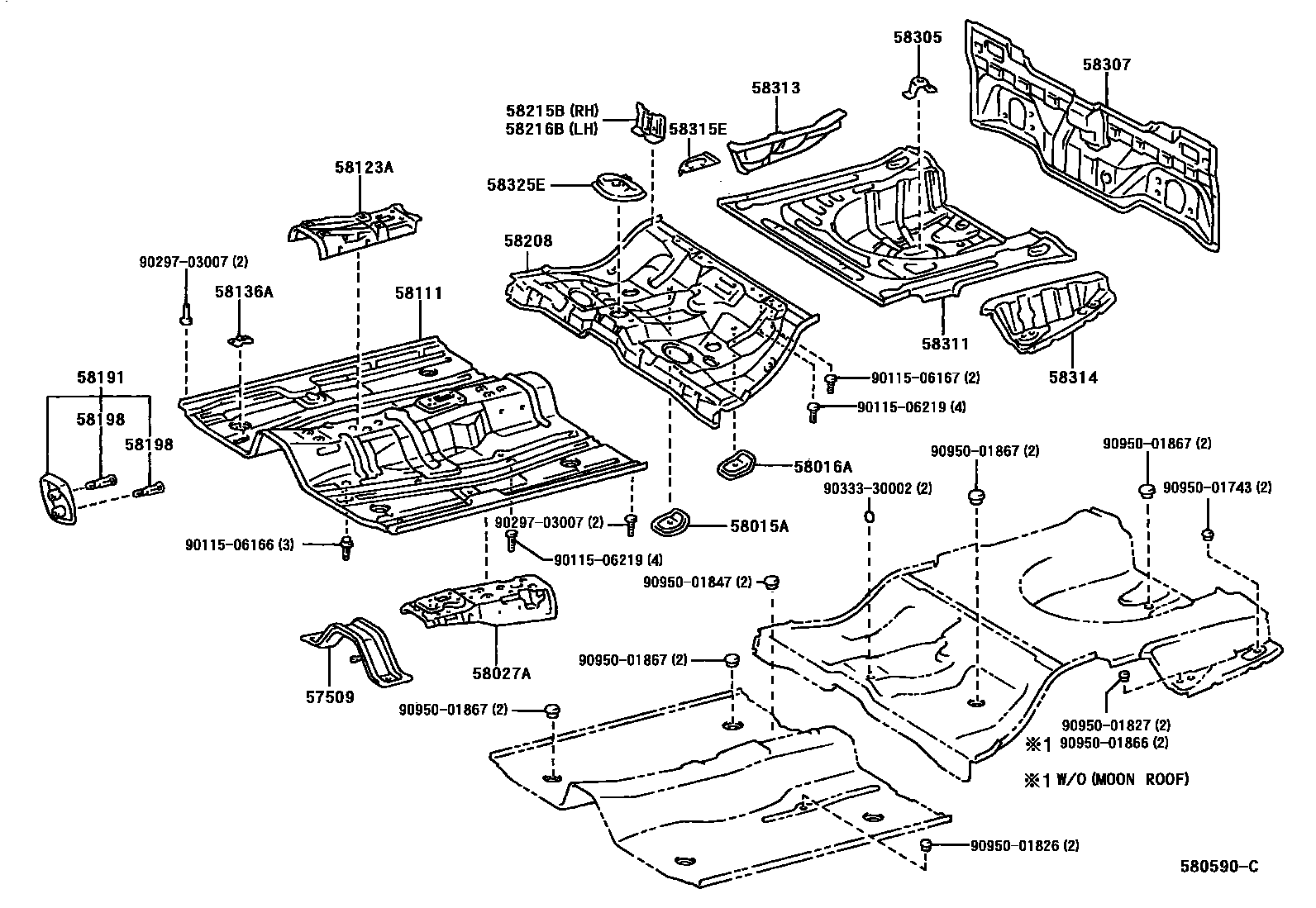

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57509 | Front floor center reinforcement sub-assembly | 57509-12020 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-12040 · 58015-12080 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-12010 · 58016-12040 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-12121 |
| 58111 | front floor pan | 58111-02030 |
| 58123A | shift lever bracket | 58013-02020 · 58013-12060 |
| 58136A | Front floor access hole cover | 58136-12020 · 58136-12030 |
| 58191 | Front floor footrest | 58192-02010 |
| 58198 | Footrest clip | 58198-02010 |
| 58208 | central floor base | 58211-02900 · 58211-02901 · 58211-02904 · 58211-02905 |
| 58215B | Rear right seat mounting bracket | 58203-02010 · 58203-12060 · 58215-12041 |
| 58216B | Rear left seat mounting bracket | 58216-02010 · 58216-12040 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-12040 |
| 58307 | Body lower back panel sub-assembly | 58307-02060 |
| 58311 | rear floor pan | 58311-02040 · 58311-02900 |
| 58313 | Rear floor right panel | 58313-02900 |
| 58314 | rear floor left panel | 58314-02010 |
| 58315E | Rear floor right front side panel extension | 58315-02020 · 58315-12070 |
| 58325E | Rear floor access hole cover | 58325-02020 |
