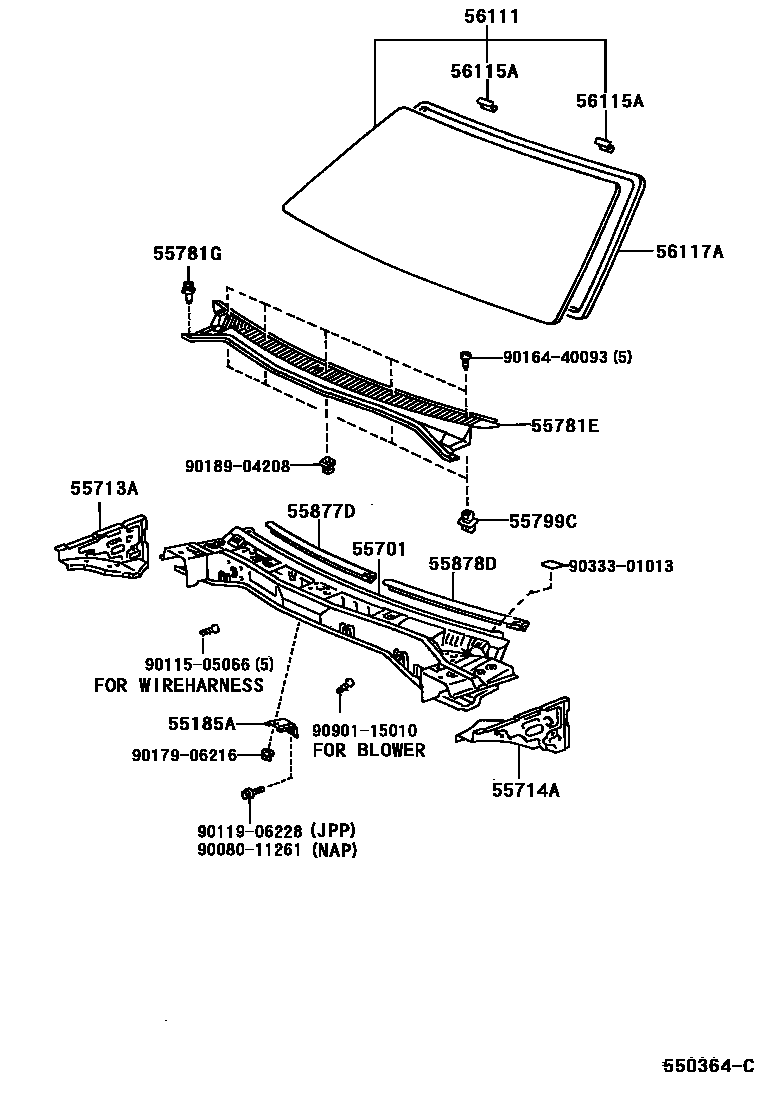

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55185A | cowl panel to cowl bracket | 55185-12010 |
| 55701 | Front apron sub-assembly | 55700-02050 |
| 55713A | Right front wall upper side panel | 55713-12081 |
| 55714A | Left front wall upper side panel | 55714-12081 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-02030 · 55708-02040 |
| 55799C | Ventilation grille clips on front apron | 55799-12010 |
| 55877D | Right front wall rear sealing strip | 55877-12080 |
| 55878D | Left front wall rear sealing strip | 55878-12070 |
| 56111 | windshield | 56101-02020 · 56111-02070 |
| 56115A | Windshield block No. 1 | 56115-02010 · 56115-33020 |
| 56117A | Window glass adhesive seals | 56117-12230 |
