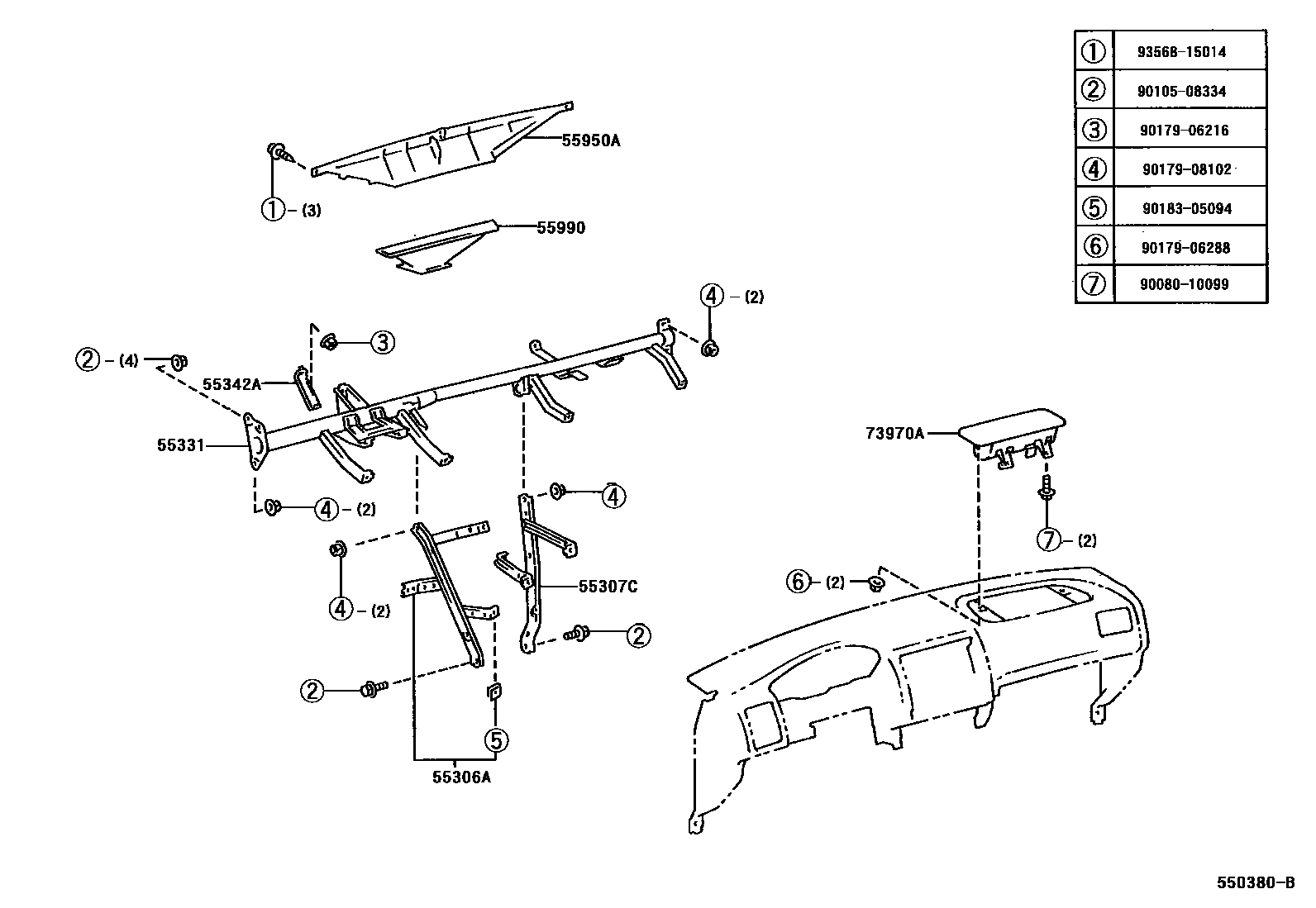

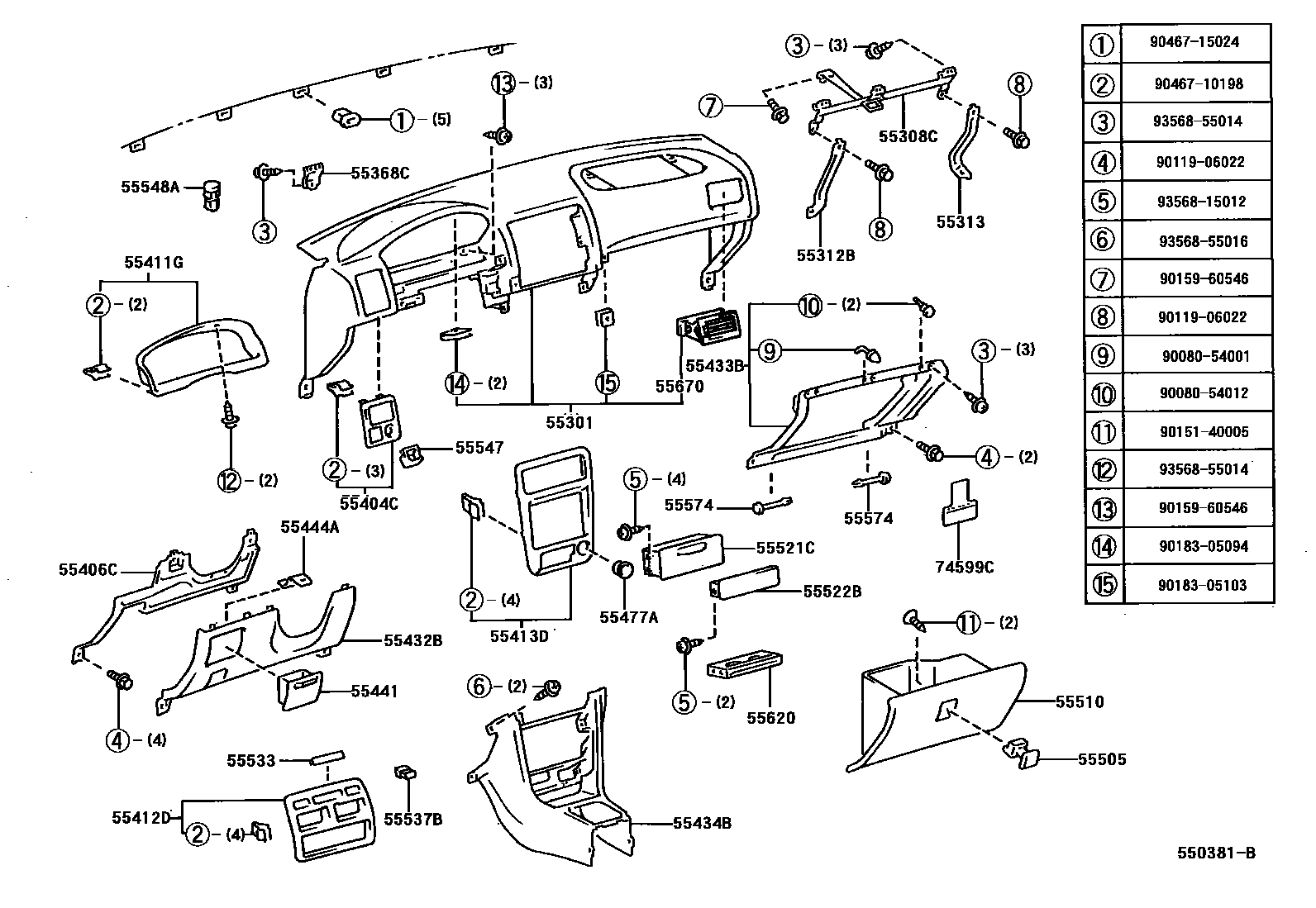

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02020 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02030 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-02020 |
| 55312B | lower right dashboard | 55312-01010 |
| 55313 | lower left instrument panel | 55313-01010 |
| 55331 | Dashboard reinforcement | 55330-02030 |
| 55342A | Dashboard to cowl No. 2 bracket | 55342-02020 |
| 55368C | Instrument mounting bracket | 55368-01020 |
| 55406C | Instrument panel lower left insert sub-assembly | 55406-01010 |
| 55411G | Instrument cluster No. 1 decorative panel | 55410-02020 |
| 55444A | Dashboard storage box spring | 55444-01010 |
| 55477A | Cigarette lighter hole frame | 55477-06010 |
| 55522B | Radio tuner opening cover | 55522-02030 |
| 55574 | Glove box cover hinge shaft | 55574-01010 |
| 55950A | Defroster nozzle assembly | 55950-01030 |
| 55990 | Central defroster nozzle assembly | 55990-02020 |
| 74599C | Driver and passenger air bag information labels | 74599-06010 · 74599-50010 |
