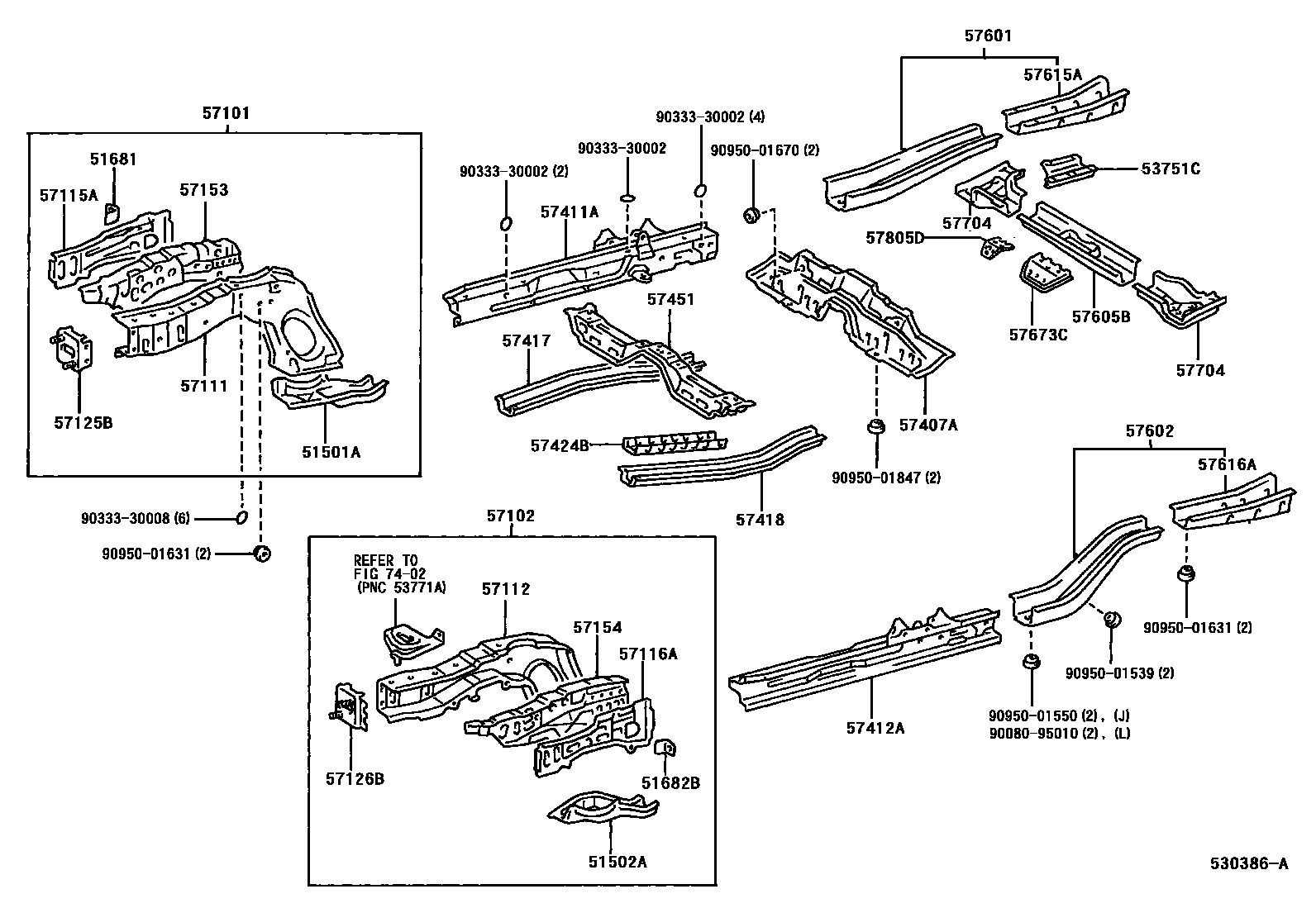

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51501A | Right front suspension cross member reinforcement sub-assembly | 51501-13010 |
| 51502A | Left front suspension cross member reinforcement sub-assembly | 51502-13010 |
| 51681 | Flexible hose bracket | 51681-02010 · 51681-12050 |
| 51682B | Left side flexible hose bracket | 51682-02010 · 51682-12060 |
| 53751C | Carbon canister mounting bracket | 53751-12100 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-02060 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-02060 |
| 57111 | Right front longitudinal beam | 57111-02021 |
| 57112 | Left front longitudinal beam | 57112-02040 |
| 57115A | Right front longitudinal beam outer panel | 57115-12060 |
| 57116A | Left front longitudinal beam outer panel | 57116-12060 |
| 57125B | Right front longitudinal beam reinforcement | 57125-12080 |
| 57126B | Left front longitudinal beam reinforcement | 57126-12040 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57016-12050 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57017-13010 |
| 57407A | Center floor beam sub-assembly | 57407-02020 |
| 57411A | Floor right inner longitudinal beam | 57401-02050 |
| 57412A | Floor left inner longitudinal beam | 57402-02050 |
| 57417 | Front floor lower right reinforcement | 57417-02020 |
| 57418 | Front floor lower left reinforcement | 57418-02020 |
| 57424B | Left inner reinforcement under front floor | 57424-12020 |
| 57451 | front floor cross member | 57451-02030 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-02901 · 57601-02904 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-02901 · 57602-02903 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-02020 · 57605-12150 |
| 57615A | Rear floor right rear longitudinal member | 57615-02901 |
| 57616A | Rear floor left rear longitudinal member | 57616-02901 |
| 57673C | Rear seat back hinge mounting bracket | 57673-12090 |
| 57704 | Rear suspension spring bracket sub-assembly | 57695-12030 · 57696-12030 |
| 57805D | Rear No. 1 seat support No. 1 reinforcement assembly | 57805-12060 |
