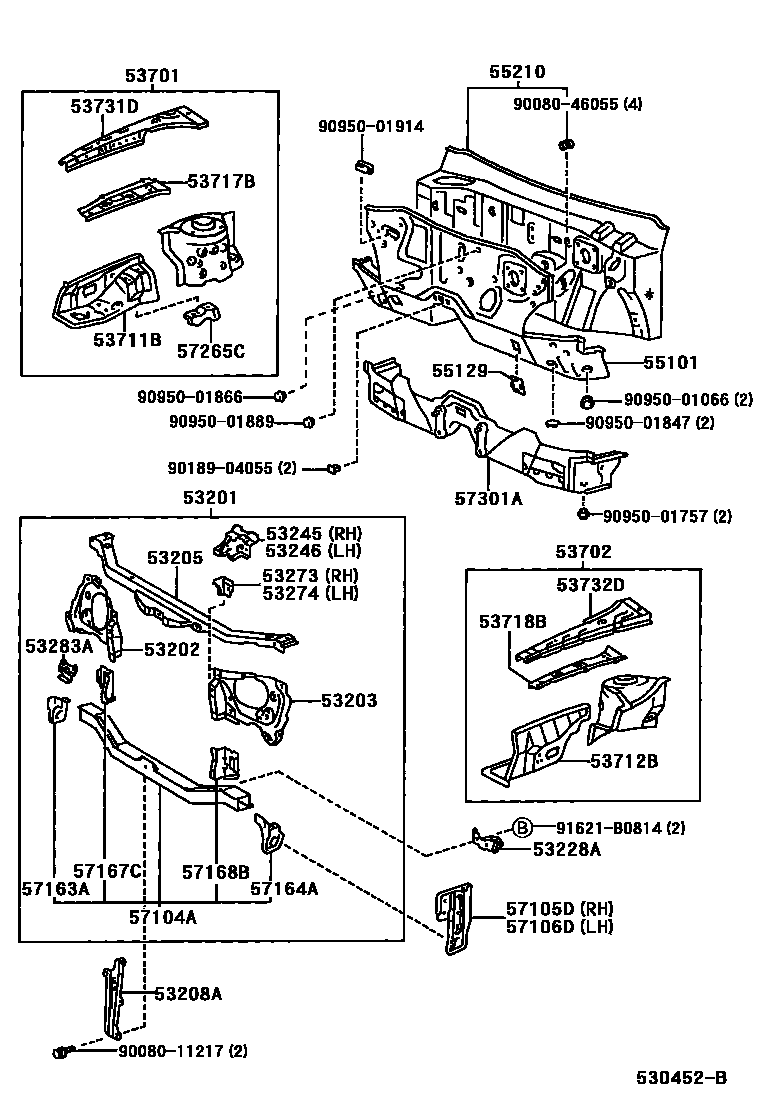

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-02030 · 53201-02060 |
| 53202 | Radiator right side bracket sub-assembly | 53211-02020 · 53211-02040 |
| 53203 | Radiator left bracket sub-assembly | 53212-02020 · 53212-02040 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02900 |
| 53208A | Engine cover lock bracket sub-assembly | 53215-02030 |
| 53228A | Radiator No. 1 lower mounting bracket | 53228-12130 |
| 53245 | Right headlight bracket | 53245-02010 · 53245-02020 |
| 53246 | Left headlight bracket | 53246-02010 · 53246-02020 |
| 53273 | Front bumper arm right mounting bracket | 53273-02010 · 53273-02011 |
| 53274 | Front bumper arm left mounting bracket | 53274-02010 · 53274-02011 |
| 53283A | Radiator lower bracket reinforcement | 53283-12010 |
| 53701 | Right front fender fender sub-assembly | 53701-02040 |
| 53702 | Left front fender fender sub-assembly | 53702-02020 |
| 53711B | Right front fender front fender | 53711-02010 |
| 53712B | Left front fender front fender | 53712-02020 |
| 53717B | Right fender fender corner panel | 53717-02010 · 53717-12051 |
| 53718B | Left fender fender corner panel | 53718-02010 · 53718-12051 |
| 53731D | Right front fender to cowl side upper beam | 53731-02010 · 53731-12150 |
| 53732D | Left front fender to cowl side upper beam | 53732-02010 · 53732-12130 |
| 55101 | Front apron sub-assembly | 55101-02120 · 55101-02130 |
| 55129 | Front panel hole cover | 55129-02010 |
| 55210 | Front wall insulation pad assembly | 55210-02020 |
| 57104A | Front cross member sub-assembly | 57104-02020 |
| 57105D | Right front longitudinal beam plate sub-assembly | 57105-02020 |
| 57106D | Left front longitudinal beam plate sub-assembly | 57106-02020 |
| 57163A | No. 1 front cross member right reinforcement | 57163-02020 |
| 57164A | No. 1 front cross member left reinforcement | 57164-02020 |
| 57167C | Front cross member right corner panel | 57167-02010 |
| 57168B | Front cross member left corner panel | 57168-02010 |
| 57265C | Engine right side mounting bracket | 57265-12050 |
| 57301A | Steering housing support beam sub-assembly | 57301-02060 |
