Toyota COROLLA 发动机盖锁和铰链 — Figure 5303

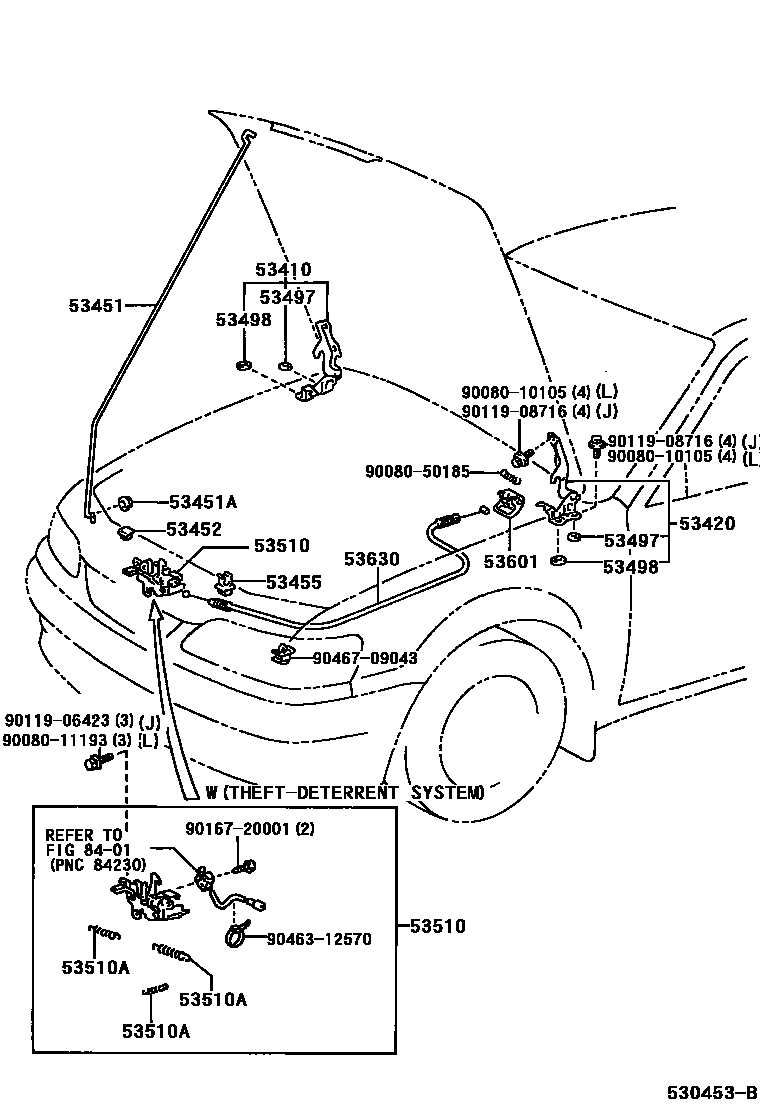

Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-02020 |
| 53420 | Engine cover left hinge assembly | 53420-02020 |
| 53451 | Engine cover support rod | 53451-02020 |
| 53451A | Gasket (for engine cover support rod) | 53454-02010 · 53454-12010 |
| 53452 | Engine cover stay rod fixing | 53452-12030 |
| 53455 | Engine cover support rod clip | 53455-02020 |
| 53497 | No. 1 engine cover hinge gasket | 53497-02010 |
| 53498 | No. 2 engine cover hinge gasket | 53498-02010 |
| 53510 | Engine cover lock assembly | 53510-02040 · 53510-02050 |
| 53510A | Tension spring (for hood lock) | 90080-50098 · 90080-50099 · 90080-50100 |
| 53630 | Engine hood lock control cable assembly | 53630-02020 |
