Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

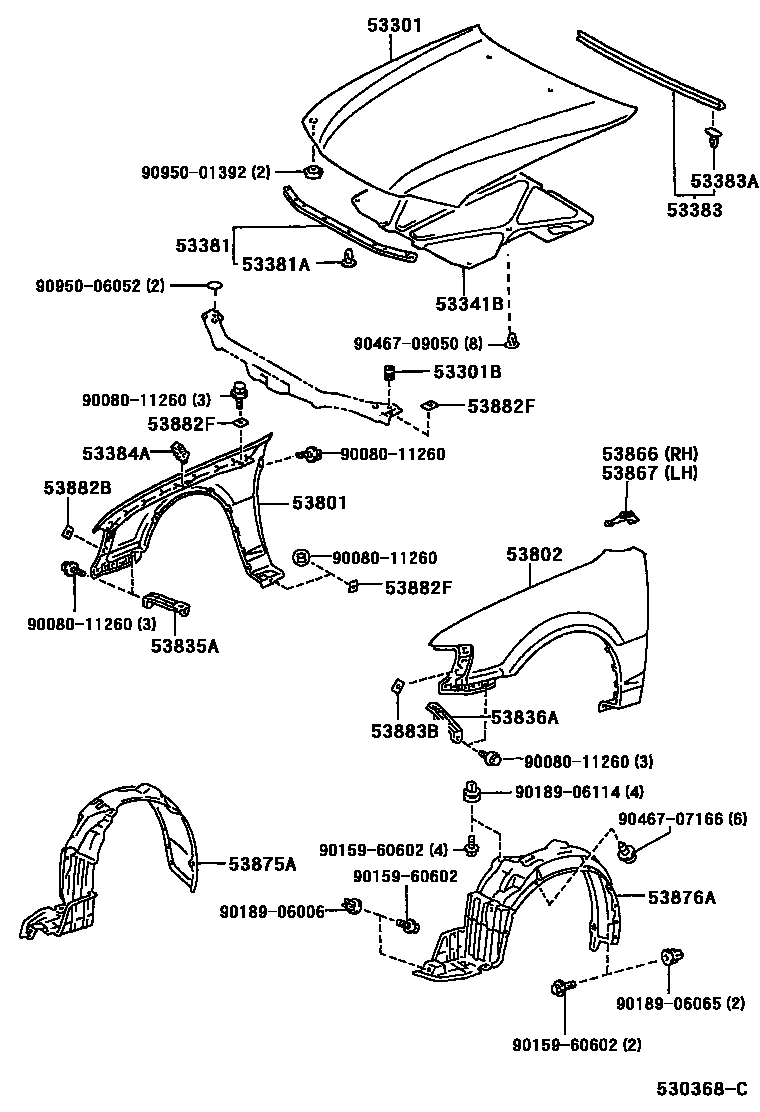

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-02050 |
| 53301B | engine cover cushion | 90541-15021 |
| 53341B | engine cover gasket | 53341-12120 · 53341-12121 |
| 53381 | Engine cover to radiator bracket seal | 53381-02020 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90080-46010 |
| 53383 | Engine cover to cowl upper cover seal | 53383-02020 |
| 53383A | Clamp (for engine cover to cowl upper cover seal) | 90080-46196 |
| 53384A | fender to engine cover buffer block | 53384-02020 |
| 53801 | Right front fender sub-assembly | 53811-02050 · 53811-02051 |
| 53802 | Left front fender sub-assembly | 53812-02050 · 53812-02051 |
| 53835A | Right front fender to fender stay | 53835-02010 |
| 53836A | Left front fender to fender stay | 53836-02010 |
| 53866 | Right front fender to cowl side seal | 53866-12020 |
| 53867 | Left front fender to cowl side seal | 53867-12020 |
| 53875A | Right front fender lining | 53875-02030 · 53875-02060 |
| 53876A | Left front fender lining | 53876-02030 · 53876-02060 |
| 53882B | Right front fender seal | 53882-16030 |
| 53882F | front fender seal | 53882-16030 |
| 53883B | Left front fender seal | 53882-16030 |
