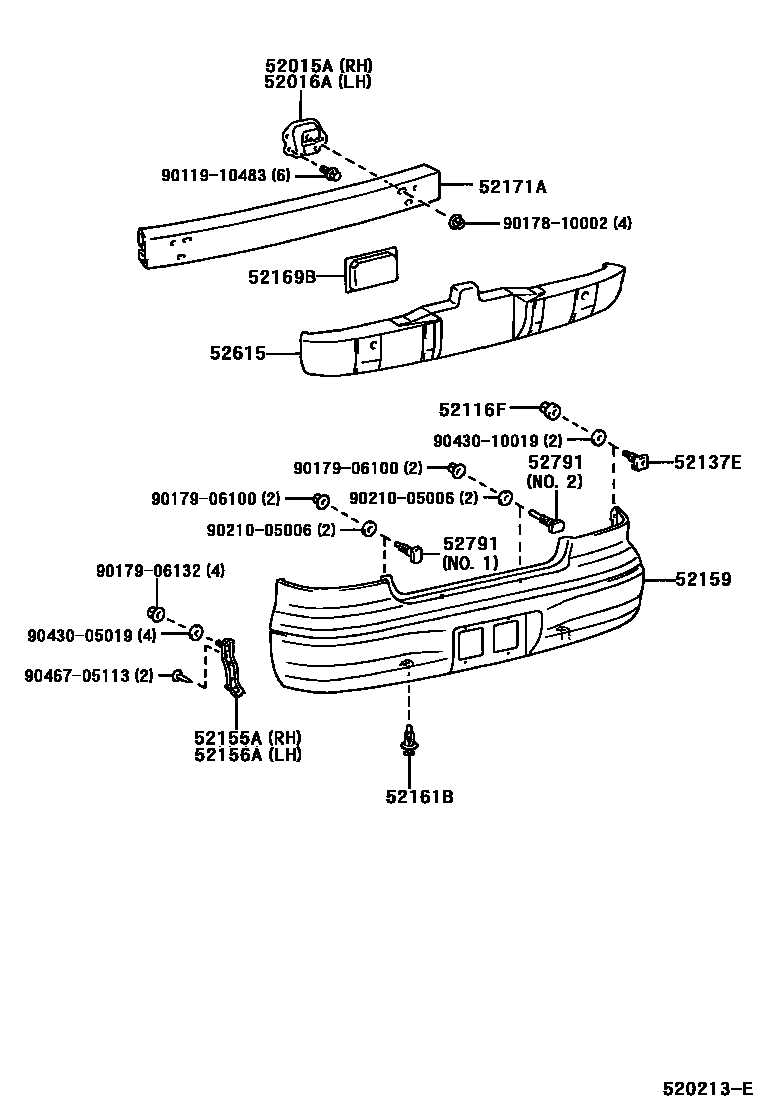

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-02040 |
| 52016A | Rear bumper left arm sub-assembly | 52016-02030 |
| 52116F | Rear bumper fixings | 52116-12310 |
| 52137E | Rear bumper No. 1 bracket plate | 52137-12120 |
| 52155A | Rear bumper right side bracket | 52155-12270 |
| 52156A | Rear bumper left bracket | 52155-12270 |
| 52159 | rear bumper cover | 52159-02903 |
| 52161B | Rear bumper insert | 52161-02020 |
| 52169B | Rear bumper center bracket | 52169-02010 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-02020 |
| 52615 | Rear bumper energy absorber | 52615-02040 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12010 · 90109-06354 · 90109-06355 |
