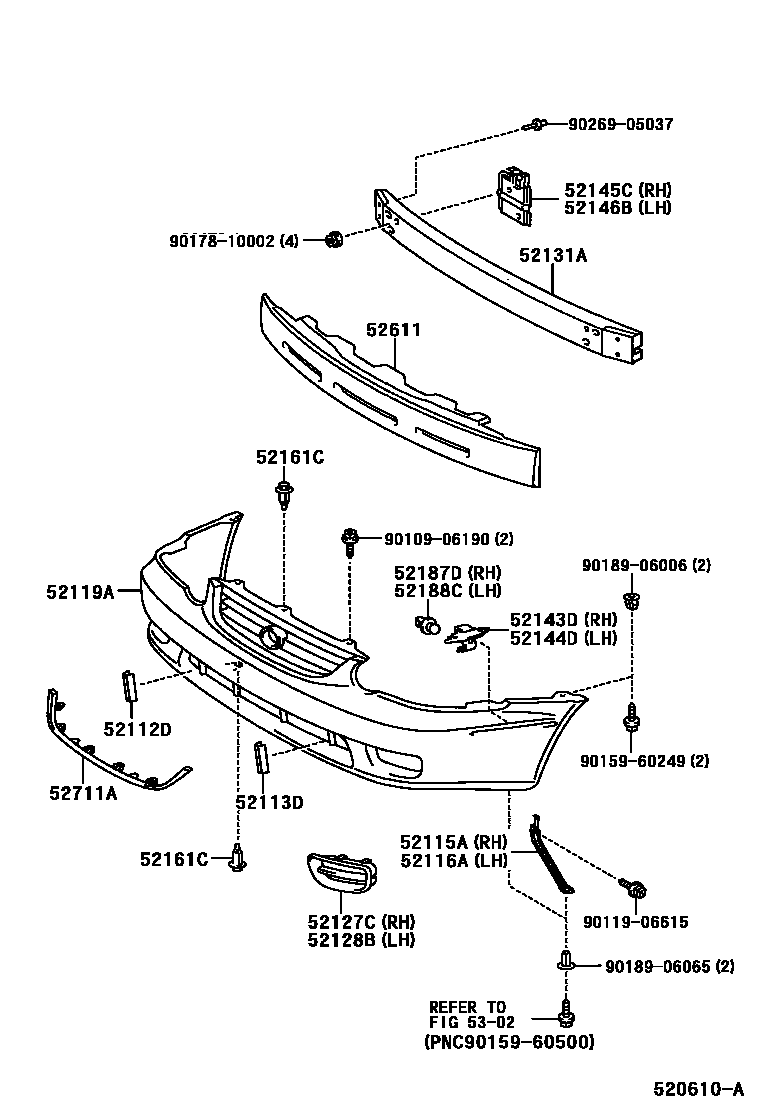

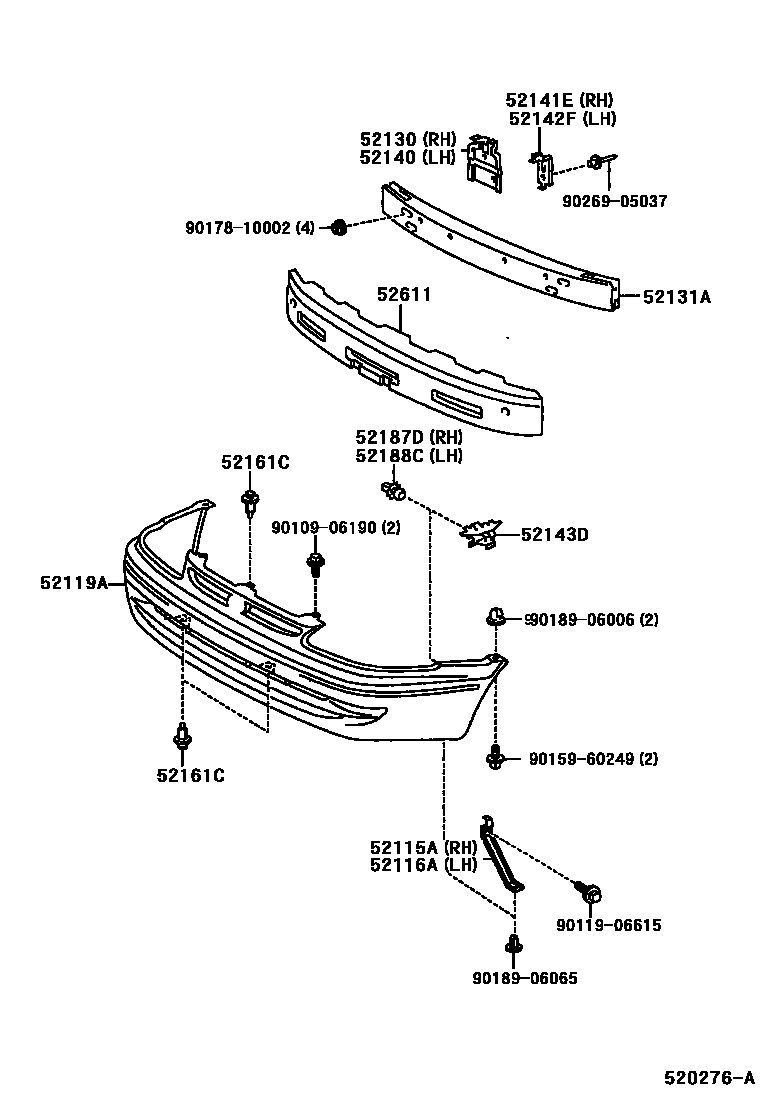

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52112D | Front bumper right extension | 52112-02010 |
| 52113D | Front bumper left extension | 52112-02010 |
| 52115A | Front bumper right side bracket | 52115-12360 · 52115-12370 |
| 52116A | Front bumper left bracket | 52116-12320 · 52116-12330 |
| 52119A | front bumper cover | 52119-02903 · 52119-02908 |
| 52127C | Front bumper hole cover | 52127-02020 |
| 52128B | Front bumper left hole cover | 52128-02010 |
| 52130 | Front bumper right side mounting bracket assembly | 52145-02040 |
| 52131A | Front bumper reinforcement | 52131-02020 |
| 52140 | Front bumper left side mounting bracket assembly | 52146-02030 |
| 52141E | Front energy absorber right mounting bracket | 52141-12450 |
| 52142F | Front energy absorber left mounting bracket | 52142-12380 |
| 52143D | Front bumper right side bracket | 52143-12360 |
| 52144D | Front bumper left bracket | 52143-12360 |
| 52145C | Front bumper right side mounting bracket | 52145-02050 |
| 52146B | Front bumper left mounting bracket | 52146-02040 |
| 52161C | front bumper insert | 52161-02020 |
| 52187D | Front bumper right positioning guide rod | 52187-45010 |
| 52188C | Front bumper left positioning guide rod | 52187-45010 |
| 52611 | front bumper energy absorber | 52611-02040 · 52611-02050 |
| 52711A | front bumper decorative panel | 52711-12280 |
