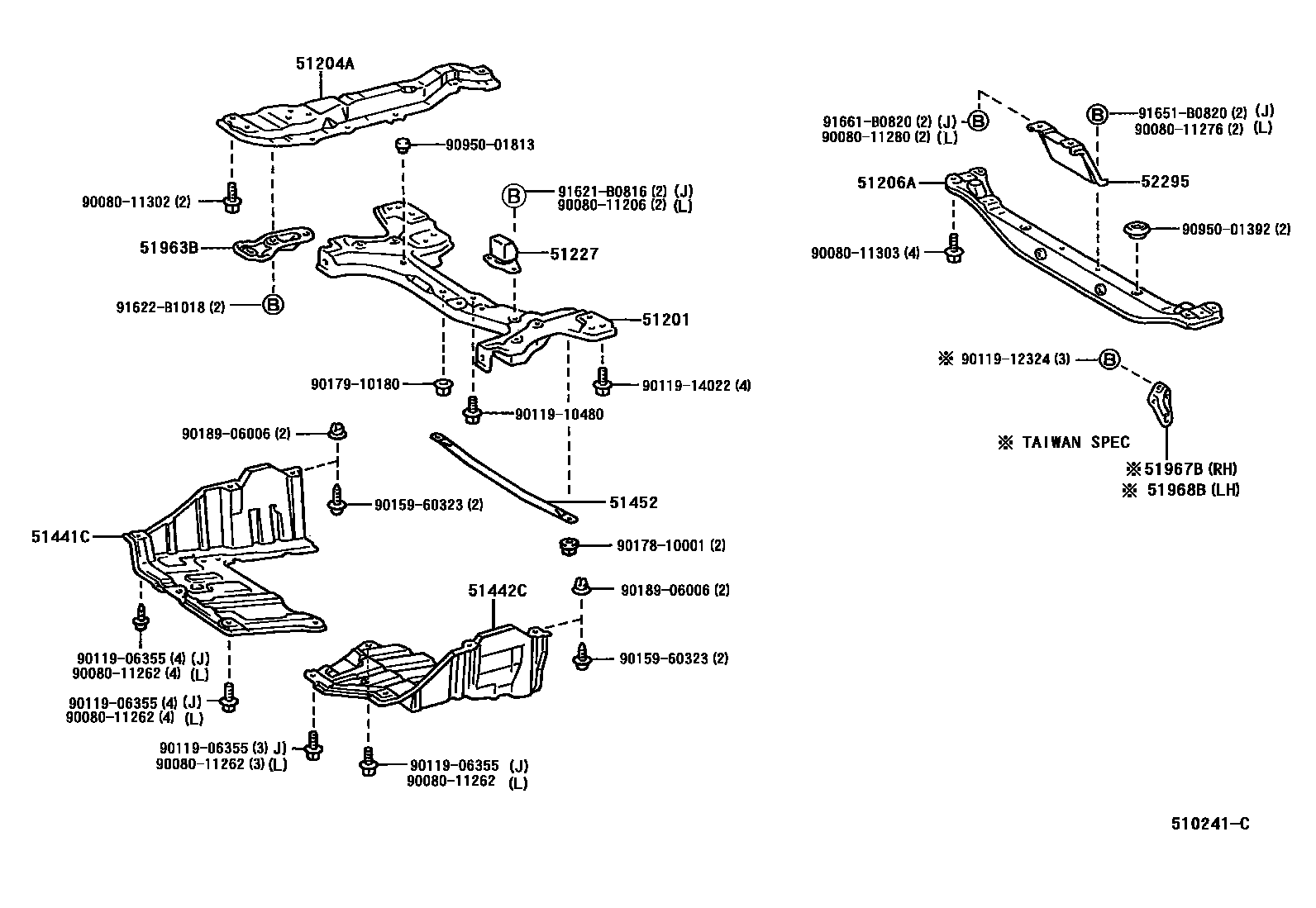

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02061 · 51201-12380 |
| 51204A | Engine center mount beam sub-assembly | 51204-02010 · 51204-02021 |
| 51206A | Rear suspension cross member sub-assembly | 51206-02011 · 51206-12060 |
| 51227 | Front suspension cross member shock absorber counterweight | 51227-02010 |
| 51441C | Engine right bottom cover | 51441-02020 |
| 51442C | Engine left bottom cover | 51442-02010 · 51442-02020 |
| 51452 | Front cross member to front suspension cross member bracket | 51452-12020 |
| 51963B | Right front transport hook | 51963-02010 · 51963-12210 |
| 51967B | right rear transport hook | 51967-12220 |
| 51968B | Left rear transport hook | 51968-12110 |
| 52295 | Right rear suspension cross member bracket | 52295-02010 |
