Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

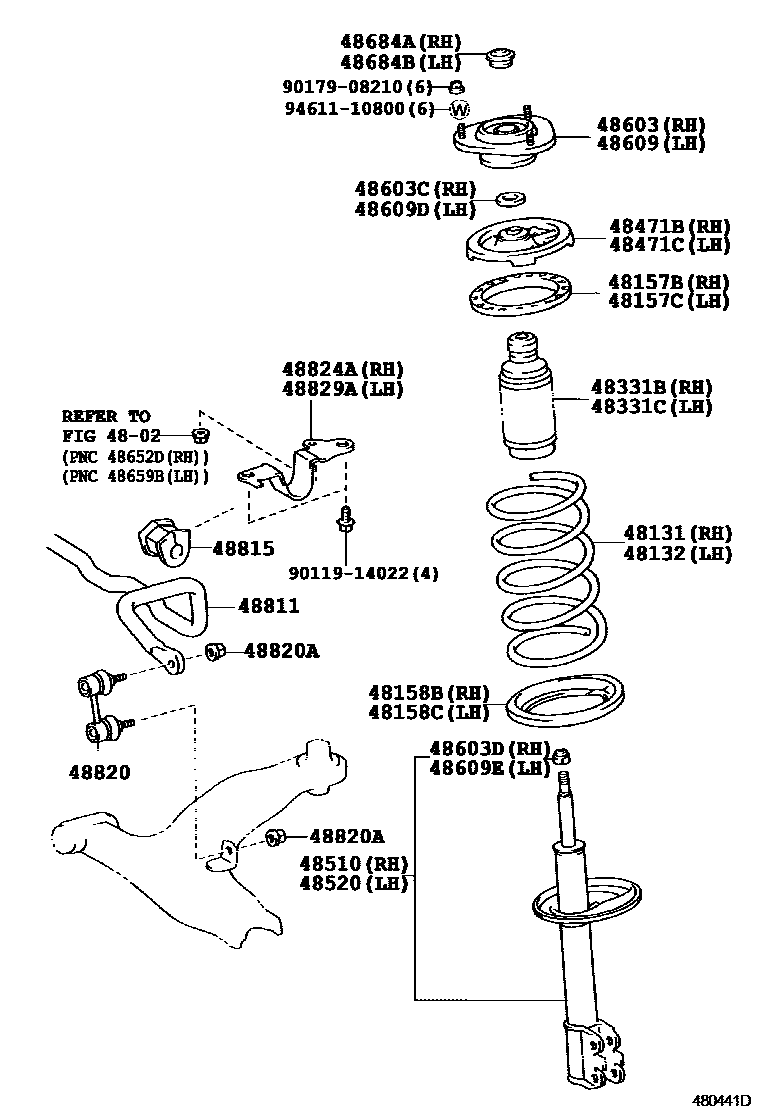

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-02460 · 48131-02470 · 48131-02480 · 48131-02490 · 48131-02520 · 48131-02540 · 48131-02580 · 48131-02590 · 48131-02600 |
| 48132 | Left front coil spring | 48131-02460 · 48131-02470 · 48131-02480 · 48131-02490 · 48131-02500 · 48131-02510 · 48131-02520 · 48131-02540 · 48131-02560 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02030 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02030 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02011 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02011 |
| 48331B | Right front spring buffer block | 48331-02020 |
| 48331C | Left front spring buffer block | 48331-02020 |
| 48471B | Front coil spring upper right seat | 48044-01020 |
| 48471C | Front coil spring upper left seat | 48044-01020 |
| 48510 | Right front shock absorber assembly | 48510-A9060 |
| 48520 | Left front shock absorber assembly | 48520-A9050 |
| 48603 | Right front suspension bearing sub-assembly | 48609-02070 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22049 |
| 48603D | Nut (for front mount to right front shock absorber) | 94182-11400 |
| 48609 | Left front suspension bearing sub-assembly | 48609-02070 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22049 |
| 48609E | Nut (for front mount to left front shock absorber) | 94182-11400 |
| 48684A | Right front suspension support dust cover | 48684-01010 |
| 48684B | Left front suspension support dust cover | 48684-01010 |
| 48811 | front stabilizer bar | 48811-02030 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-02030 |
| 48820 | Front stabilizer bar connecting rod assembly | 48820-33010 |
| 48820A | Nut (for front stabilizer bar link) | 90179-10183 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-02040 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48829-02040 |
