Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

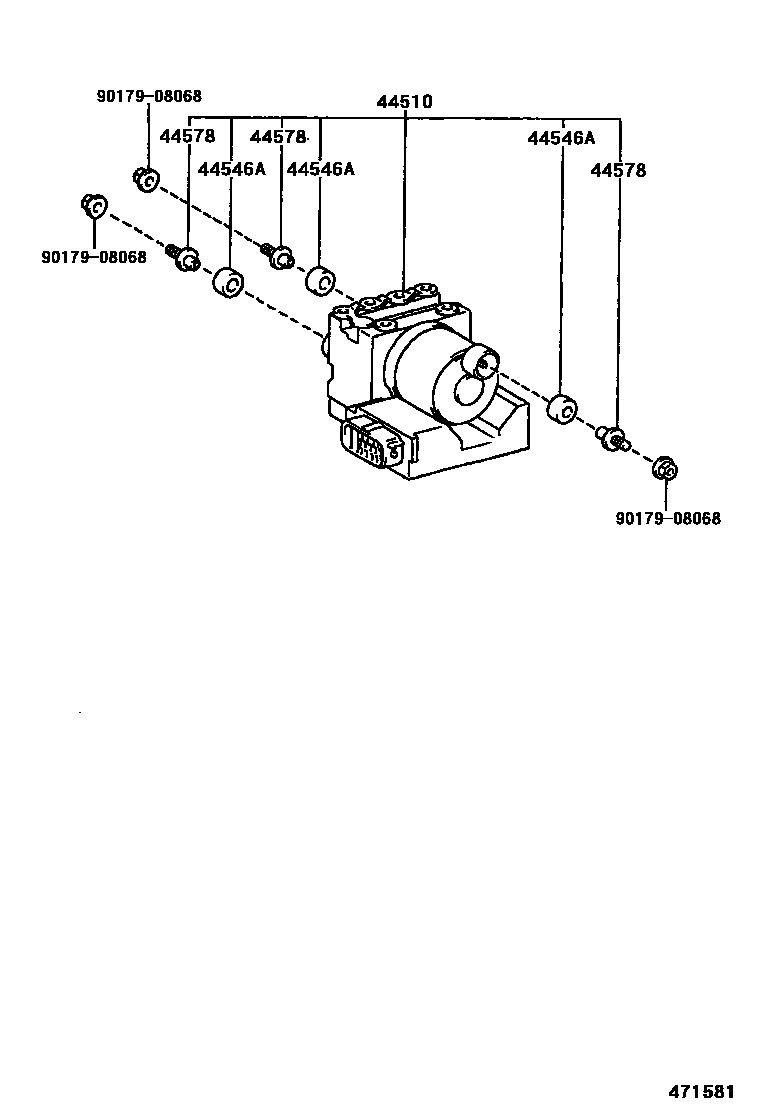

| 44510 | brake actuator assembly | 44050-01030 |
| 44546A | Brake actuator bolt cushion | 44546-01030 |
| 44578 | Brake actuator cushion bolt | 44578-08010 |
| 47150 | Proportional valve assembly | 47150-02030 · 47150-12210 · 47150-12240 · 47150-20130 |

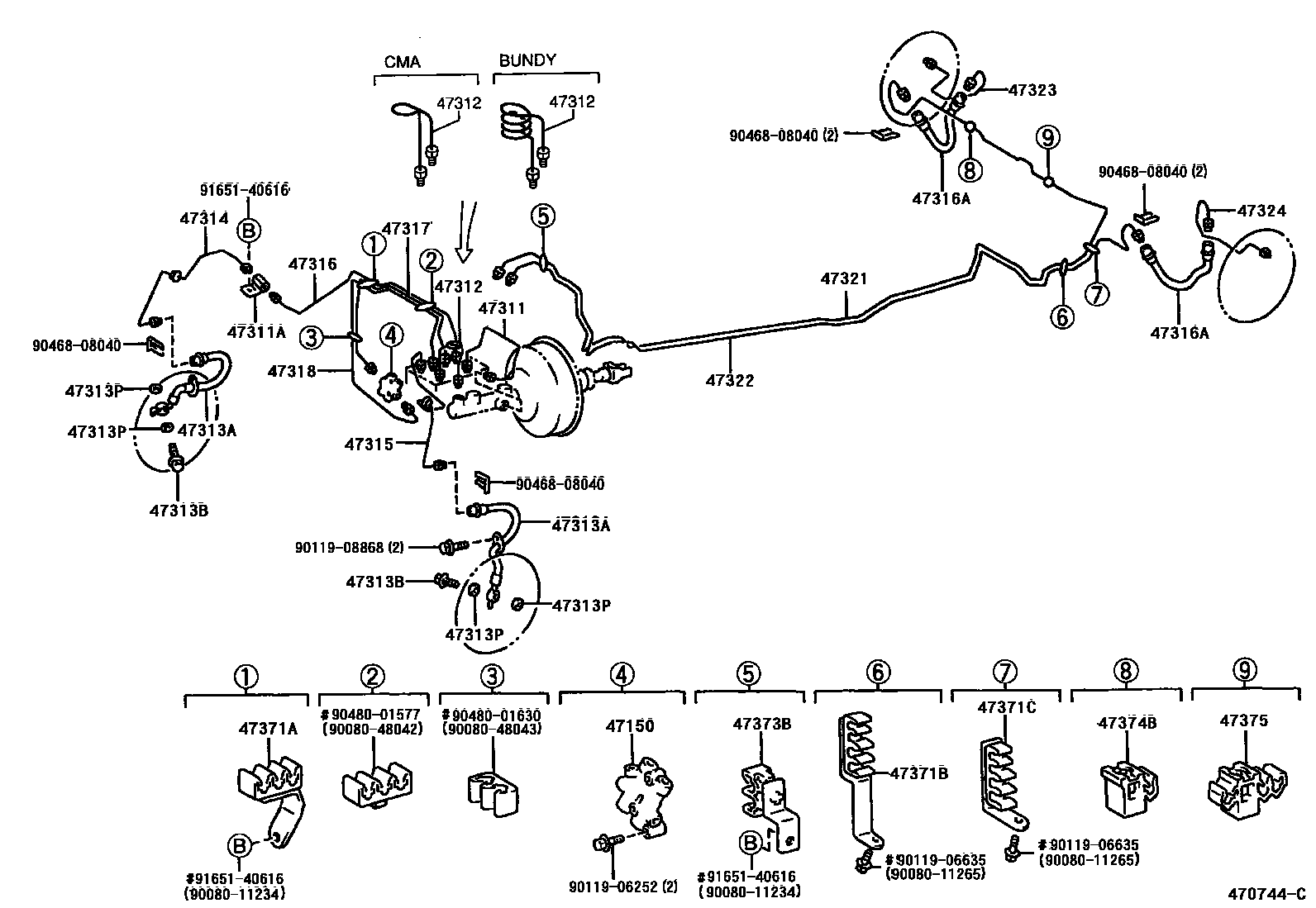

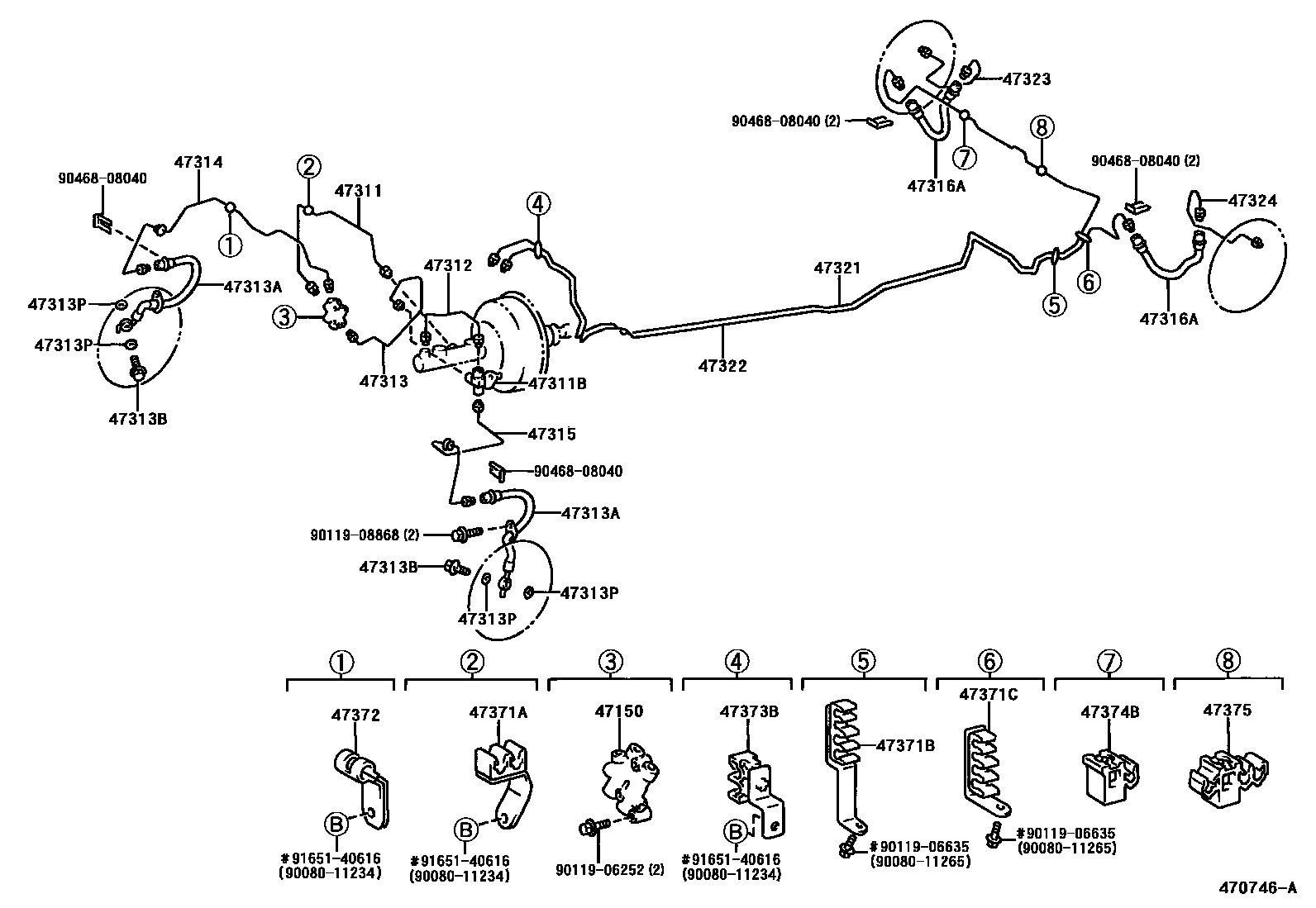

| 47311 | No. 1 front brake pipe | 47311-01040 · 47311-02060 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10041 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90413-10159 |
| 47312 | No. 2 front brake pipe | 47312-01020 · 47312-02060 · 47312-12260 |
| 47313 | No. 3 front brake pipe | 47313-02020 · 47313-02030 |
| 47313A | No. 1 front flexible hose | 90080-94037 · 90080-94038 · 90080-94103 · 90080-94104 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-02060 · 47314-02080 |
| 47315 | No. 5 front brake pipe | 47315-01030 · 47315-02020 · 47315-02030 · 47315-02060 |
| 47316 | No. 6 front brake pipe | 47316-01020 · 47316-02030 |
| 47316A | Flexible hose (for rear brake pipe) | 90080-94039 |
| 47317 | No. 7 front brake pipe | 47317-01020 · 47317-02030 |
| 47318 | No. 8 front brake pipe | 47318-01020 · 47318-02030 |
| 47321 | No. 1 rear brake pipe | 47321-02040 · 47321-02050 |
| 47322 | No. 2 rear brake pipe | 47322-02040 · 47322-02050 |
| 47323 | No. 3 rear brake pipe | 47323-02020 · 47323-02030 |
| 47324 | No. 4 rear brake pipe | 47324-02020 · 47324-02030 |
| 47371A | No. 1 brake pipe clamp | 47371-02030 · 47371-12170 |
| 47371B | No. 6 brake pipe clamp | 47375-02030 |
| 47371C | No. 7 brake pipe clamp | 47375-02040 |
| 47372 | No. 2 brake pipe clamp | 90461-08652 |
| 47373B | No. 3 brake pipe clamp | 47371-02010 |
| 47374B | No. 4 brake pipe clamp | 47371-12150 · 90949-01B45 |
| 47375 | No. 5 brake pipe clamp | 47371-12180 |
