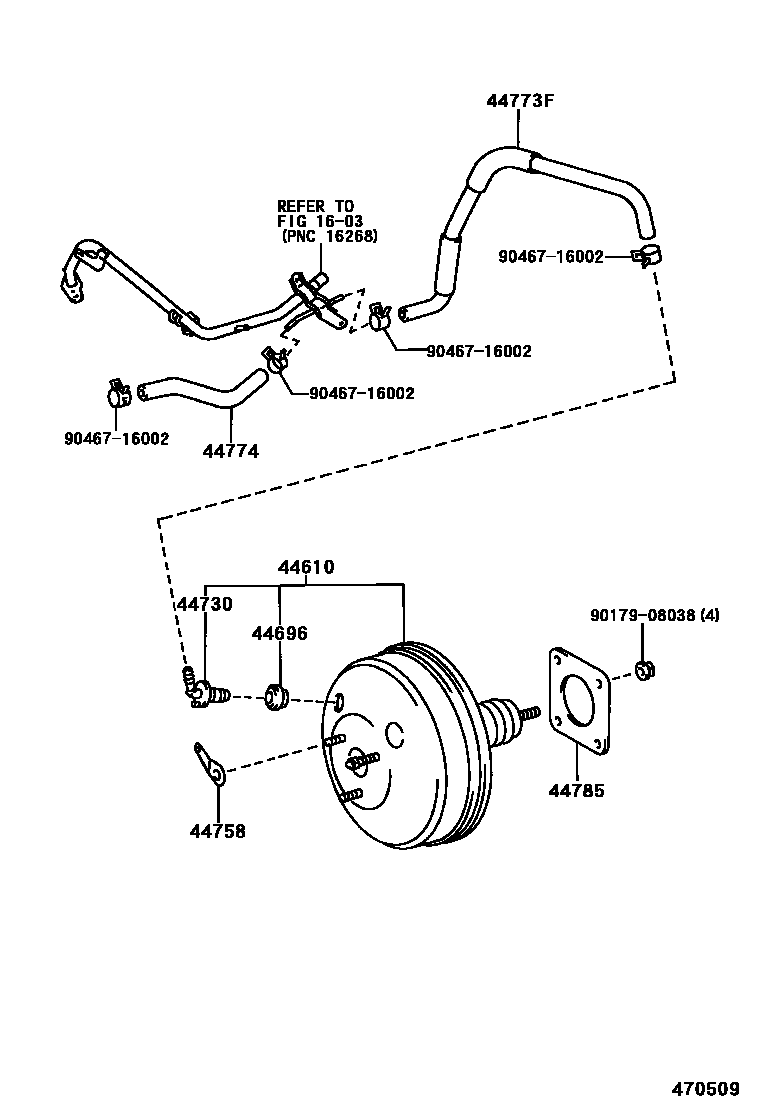

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-02020 · 44610-02030 · 44610-1E210 · 44610-1E590 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-42010 |
| 44758 | Vacuum check valve bracket | 44758-02010 · 44758-12320 |
| 44773F | Hoses (connector to check valve) | 44773-02010 |
| 44774 | Hoses (joints to connector tubes) | 44774-02030 · 44774-12350 |
| 44785 | brake booster pad | 44785-02010 · 44785-20020 |
