Toyota COROLLA 制动总泵 — Figure 4702

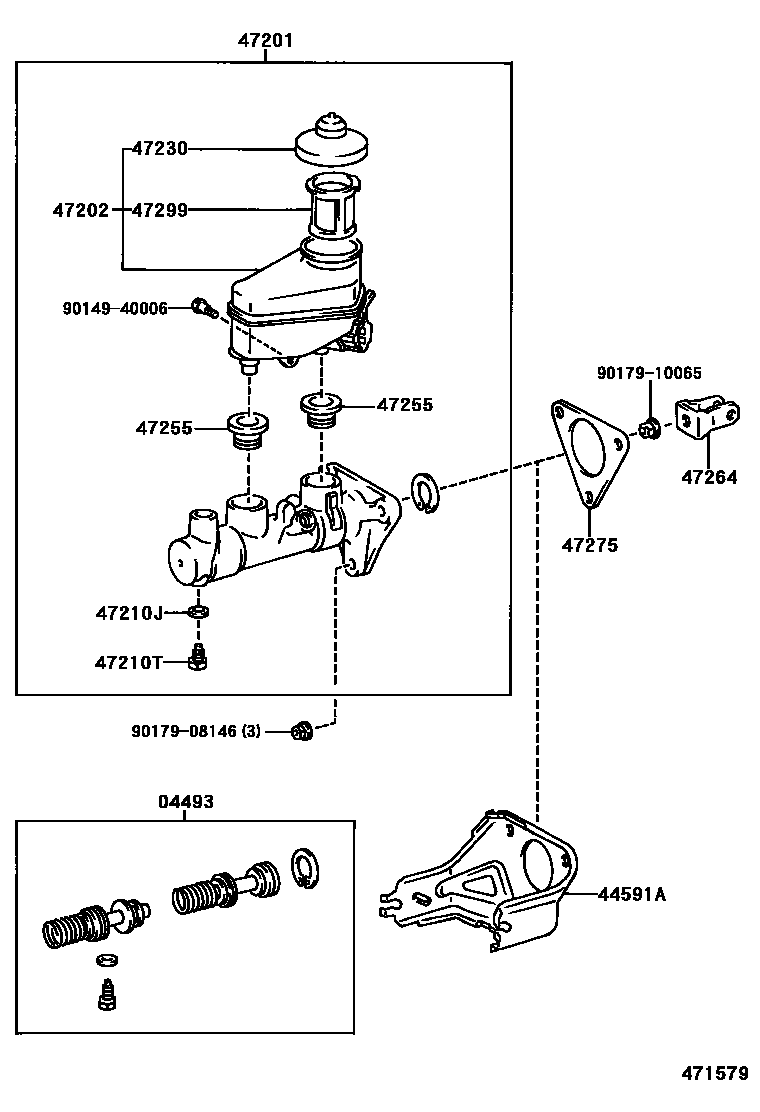

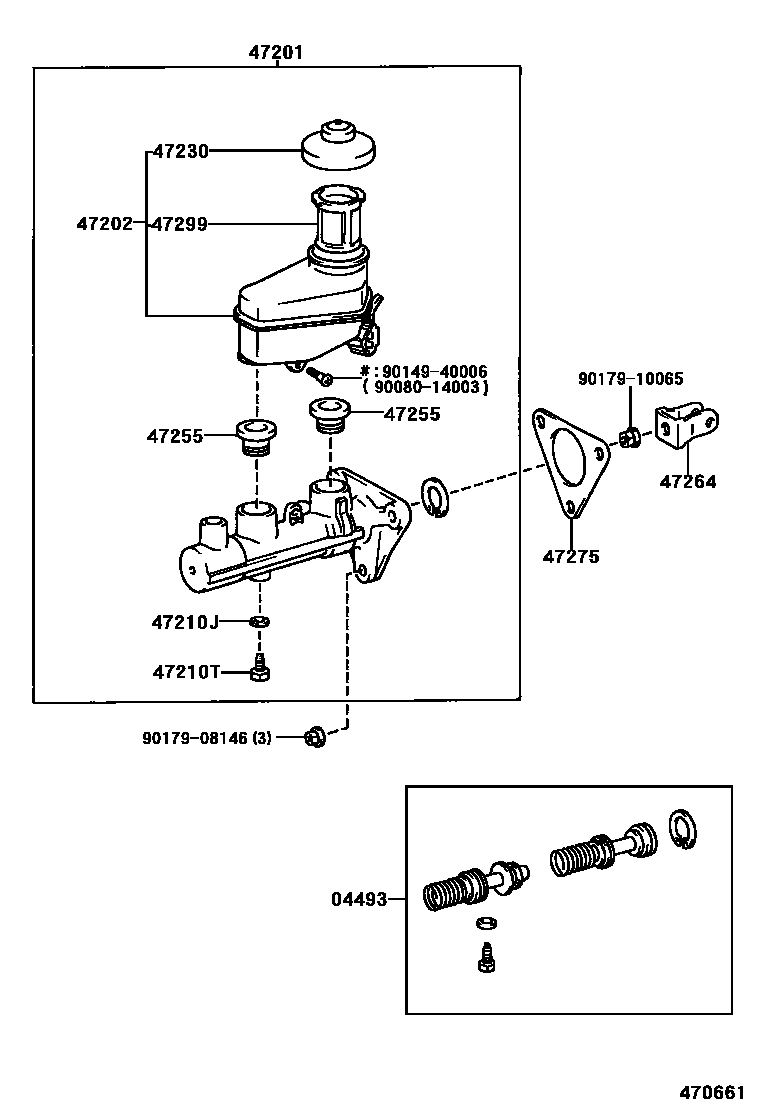

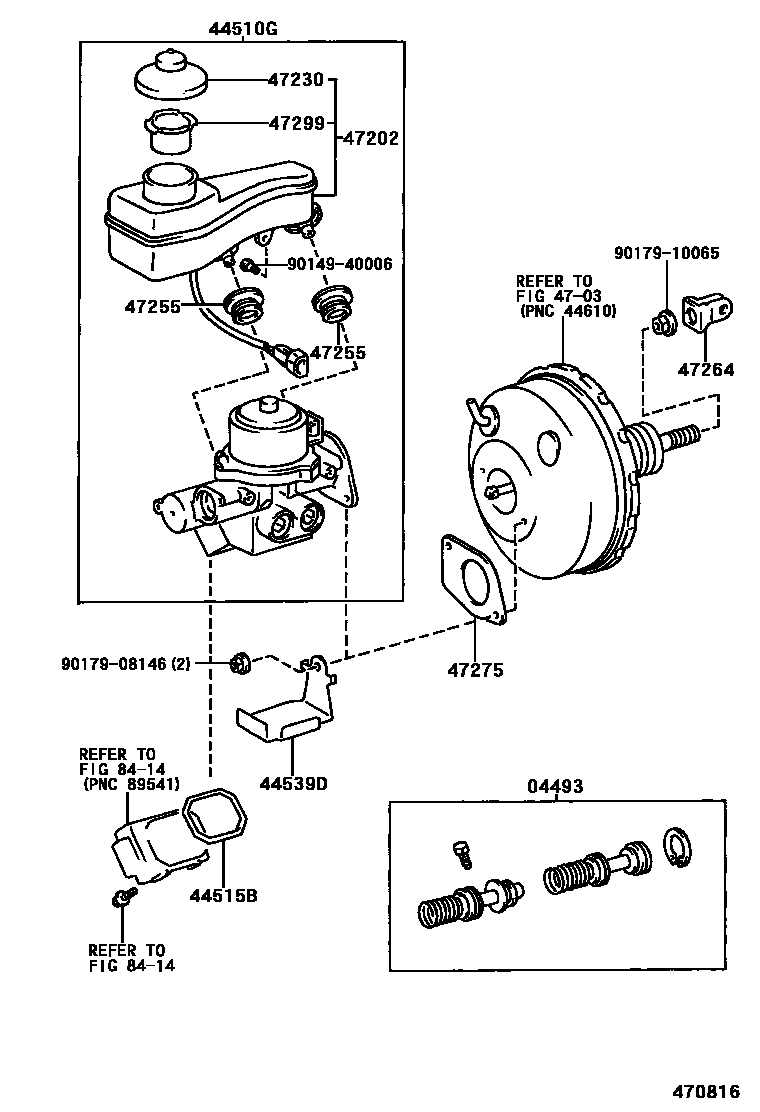

Toyota COROLLA EPC diagram 4702, 制动总泵, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-12200 · 04493-12210 · 04493-16080 |
| 44510G | Brake master cylinder assembly with ABS actuator | 44050-12220 |
| 44515B | brake actuator seal | 44515-12070 |
| 44539D | Brake actuator protection device | 44539-12020 |
| 44591A | No. 1 brake actuator bracket | 44591-01020 |
| 47201 | Brake master cylinder sub-assembly | 47201-02020 · 47201-02030 · 47201-1A020 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-02020 · 47220-12090 · 47220-32060 |
| 47210J | Gasket (for master cylinder) | 90029-43001 · 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-12040 |
| 47255 | Master pump reservoir seal | 47255-03010 · 47255-16010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-33010 |
| 47275 | brake master cylinder gasket | 47275-12030 · 47275-32010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 · 47299-24010 |
