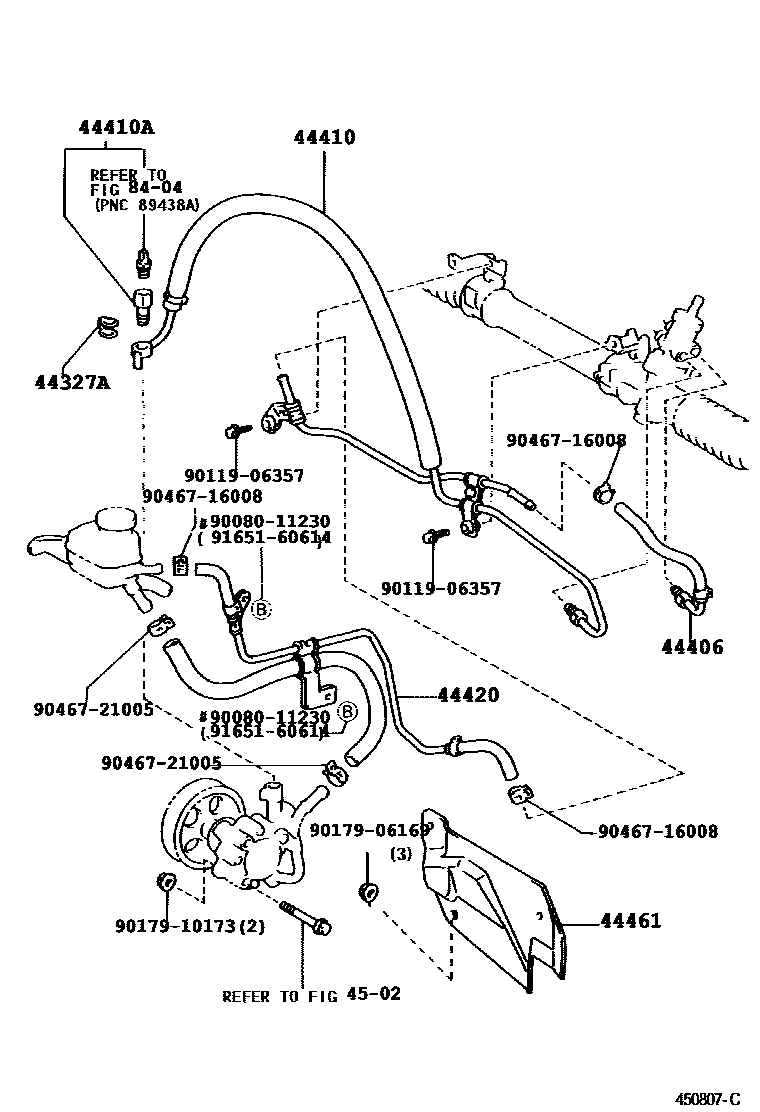

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44406 | Oil return pipe sub-assembly | 44406-02010 |
| 44410 | Pressure supply pipe assembly | 44410-02030 |
| 44410A | Connector bolt (for pressure supply pipe) | 44338-33090 |
| 44420 | Oil cooler assembly | 44420-02011 |
| 44461 | Refrigerant pipe insulation pad | 44461-02010 |
