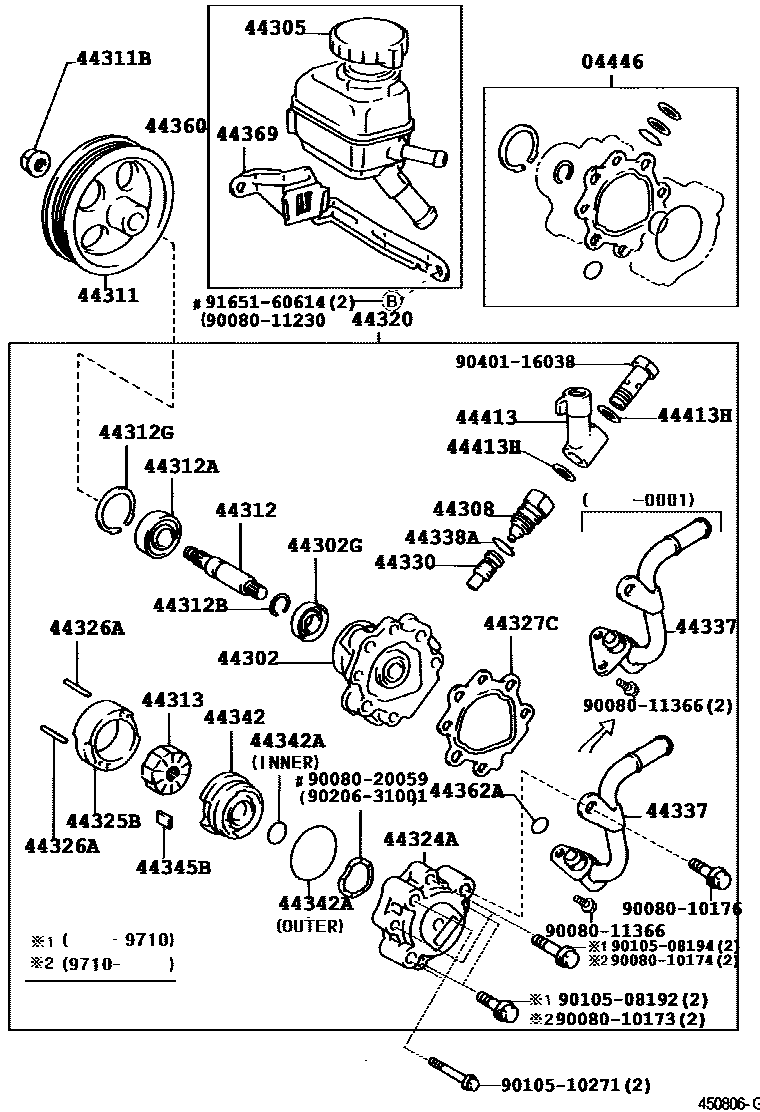

Toyota COROLLA 叶片泵和储油罐(动力转向) — Figure 4502
Toyota COROLLA EPC diagram 4502, 叶片泵和储油罐(动力转向), with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-02030 |
| 44302 | Front vane pump housing sub-assembly | 44302-02040 · 44302-02090 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90080-31020 · 90080-31040 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-06010 |
| 44308 | Pressure hole connector sub-assembly | 44308-16060 |
| 44311 | vane pump pulley | 44311-02040 · 44311-02080 |
| 44311B | Nut (for vane pump pulley) | 90178-12003 · 90179-12022 |
| 44312 | vane pump shaft | 44312-02050 · 44312-06010 |
| 44312A | Bearings (for vane pump shafts) | 90080-36084 · 90080-36085 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90080-52033 · 90080-52070 |
| 44312G | No. 2 snap ring (for vane pump shaft bearing) | 90080-52071 |
| 44313 | vane pump rotor | 44313-06010 · 44313-06020 · 44313-06030 · 44313-06040 · 44313-06050 |
| 44320 | Vane pump assembly | 44320-02032 · 44320-02033 · 44320-02034 |
| 44324A | Pump back shell | 44324-06010 |
| 44325B | vane pump cam ring | 44325-02060 · 44325-02070 · 44325-02080 · 44325-02090 · 44325-02100 |
| 44326A | Direct sales (for vane pump cam rings) | 90080-25024 · 90250-04071 |
| 44327C | Vane pump casing gasket | 44327-04010 · 44327-26010 |
| 44330 | Flow control valve assembly | 44330-02070 · 44330-02080 · 44330-02090 · 44330-02100 · 44330-02110 · 44330-02120 |
| 44337 | Power steering suction port connector | 44337-02021 · 44337-02060 |
| 44338A | O-ring (for pressure port connector) | 90080-30035 |
| 44342 | Vane pump rear end cover | 44342-02031 |
| 44342A | O-ring (for vane pump rear end cover) | 90080-30031 · 90080-30032 |
| 44345B | vane pump disc | 44345-04010 · 44345-04020 · 44345-04030 · 44345-04040 · 44345-04050 · 44345-26010 · 44345-26020 · 44345-26030 · 44345-26040 · 44345-26050 |
| 44360 | Vane pump oil storage tank assembly | 44360-02020 |
| 44362A | O-ring (for vane pump oil storage tank) | 90080-30034 |
| 44369 | No. 1 oil storage tank bracket | 44369-02020 |
| 44413 | No. 1 pressure supply pipe | 44413-02030 |
| 44413H | Gasket (for pressure supply pipe No. 2) | 90430-16242 |
