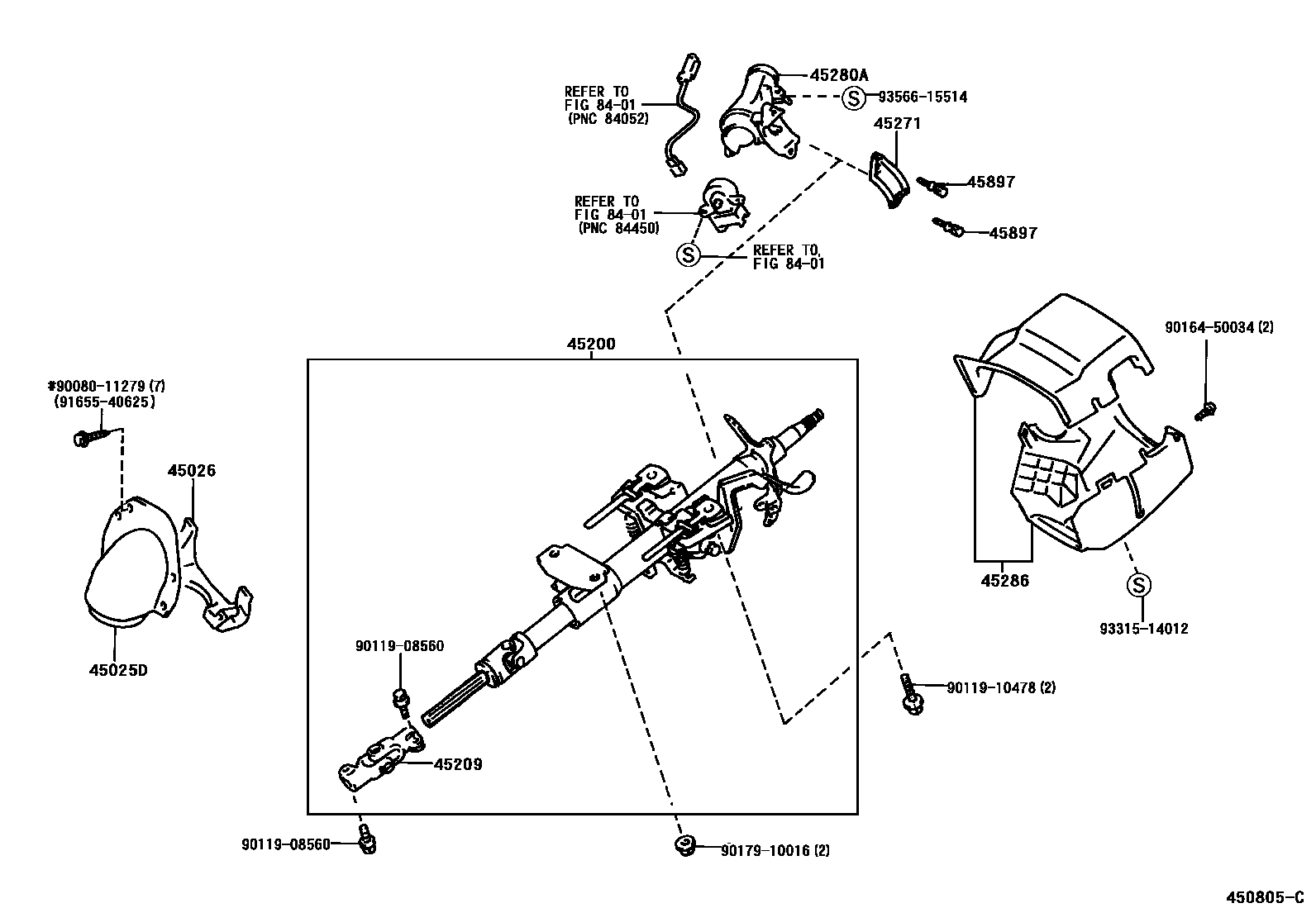

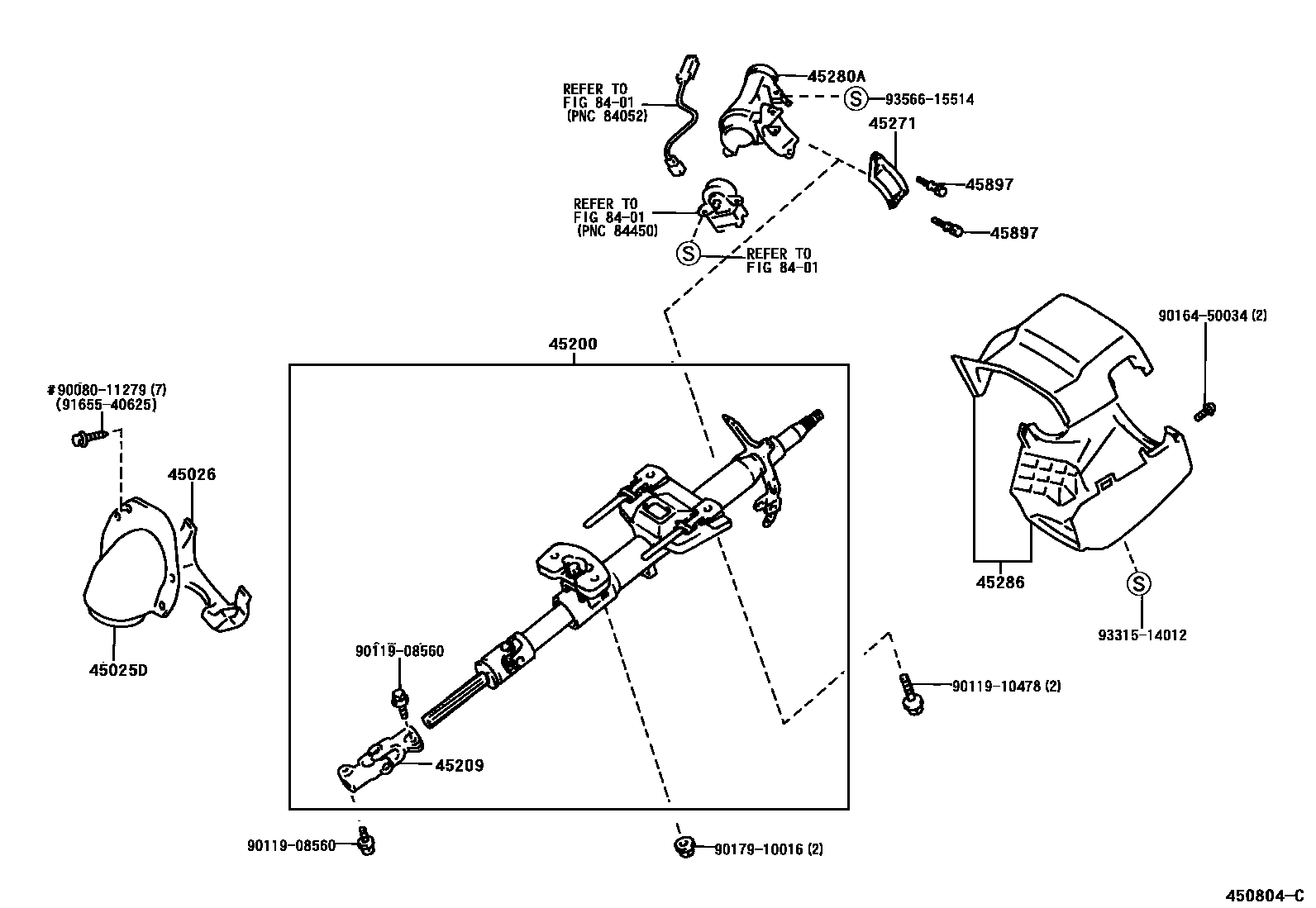

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-12210 |
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-02010 · 45026-12040 |
| 45200 | Steering column assembly | 45200-02080 · 45200-02090 · 45200-02091 |
| 45209 | Steering slip fork sub-assembly | 45209-12080 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45280A | Steering column upper bracket assembly | 45280-12331 · 45280-12341 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
