Toyota COROLLA Front Drive Shaft — Figure 4302

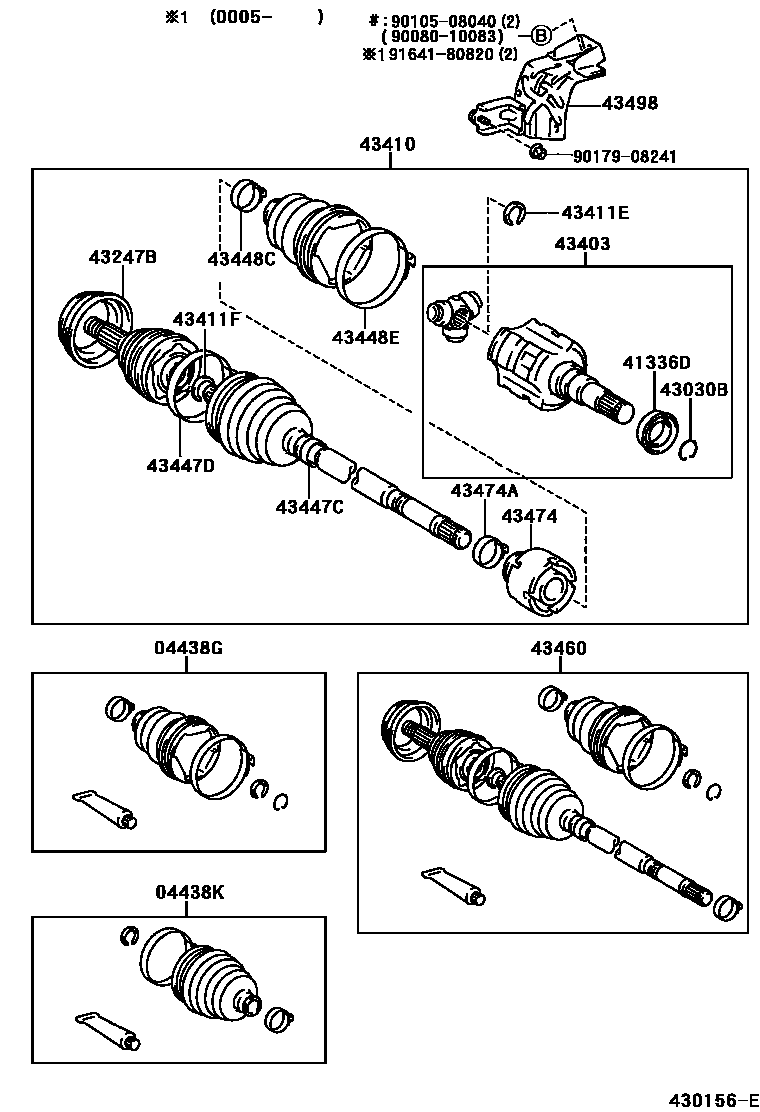

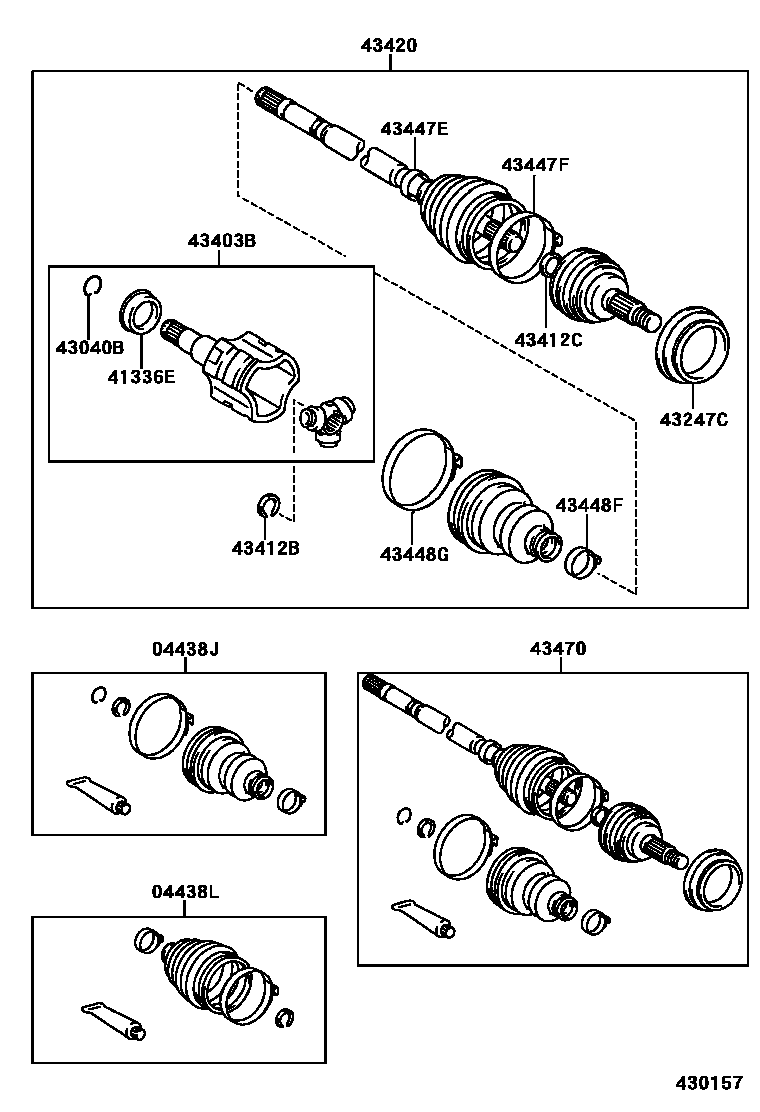

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-02050 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-02050 |
| 04438K | Right front drive shaft outer universal joint dust boot assembly | 04438-02071 |
| 04438L | Left front drive shaft outer universal joint dust boot assembly | 04438-02071 |
| 41336D | Right front driveshaft dust cover | 41336-01010 |
| 41336E | Left front driveshaft dust cover | 41336-01010 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90080-52015 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90080-52015 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-02020 · 43247-02030 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-02020 · 43247-02030 |
| 43403 | Right front axle inner universal joint assembly | 43047-02030 · 43047-02050 |
| 43403B | Left front axle inner universal joint assembly | 43047-02030 · 43047-02050 |
| 43410 | Right front driveshaft assembly | 43410-02060 · 43410-02061 · 43410-02090 · 43410-02091 · 43410-02100 · 43410-02101 · 43410-02130 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90080-52008 |
| 43411F | Outer shaft snap ring (for right front axle inner drive shaft) | 90080-52004 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90080-52008 |
| 43412C | Outer shaft snap ring (for left front axle inner drive shaft) | 90080-52004 |
| 43420 | Left front drive shaft assembly | 43420-02060 · 43420-02061 · 43420-02090 · 43420-02091 · 43420-02100 · 43420-02101 · 43420-02130 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 90080-46147 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 90080-46149 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 90080-46147 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 90080-46149 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 90080-46148 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 90080-46150 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 90080-46148 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 90080-46150 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09230 · 43460-09231 · 43460-09240 · 43460-09241 · 43460-09250 · 43460-09251 · 43460-09390 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09360 · 43470-09361 · 43470-09370 · 43470-09371 · 43470-09380 · 43470-09381 · 43470-09630 |
| 43474 | drive shaft damper | 43474-02050 |
| 43474A | Clamp (for securing driveshaft damper) | 90080-46233 |
| 43498 | Driveshaft insulation pad | 43498-12020 |
