Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

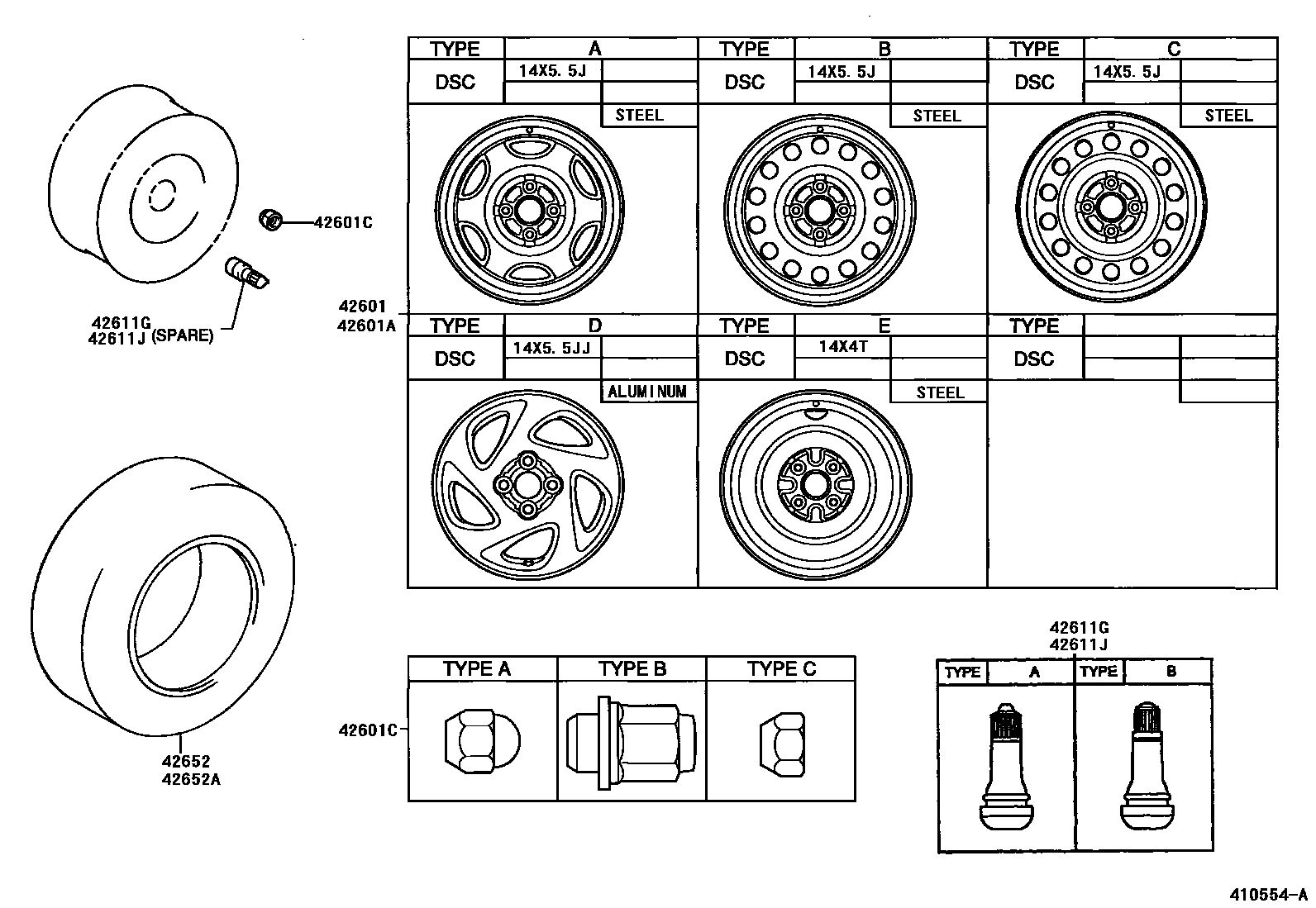

| 42601 | spoke wheel | 42611-01140 · 42611-02090 · 42611-02100 · 42611-02140 |
| 42601A | Spoke wheel (for spare tire) | 42611-01140 · 42611-02090 · 42611-02100 · 42611-02140 · 42611-02150 |
| 42601C | Hub nut (for axle) | 90080-17035 · 90942-01021 · 90942-01083 |

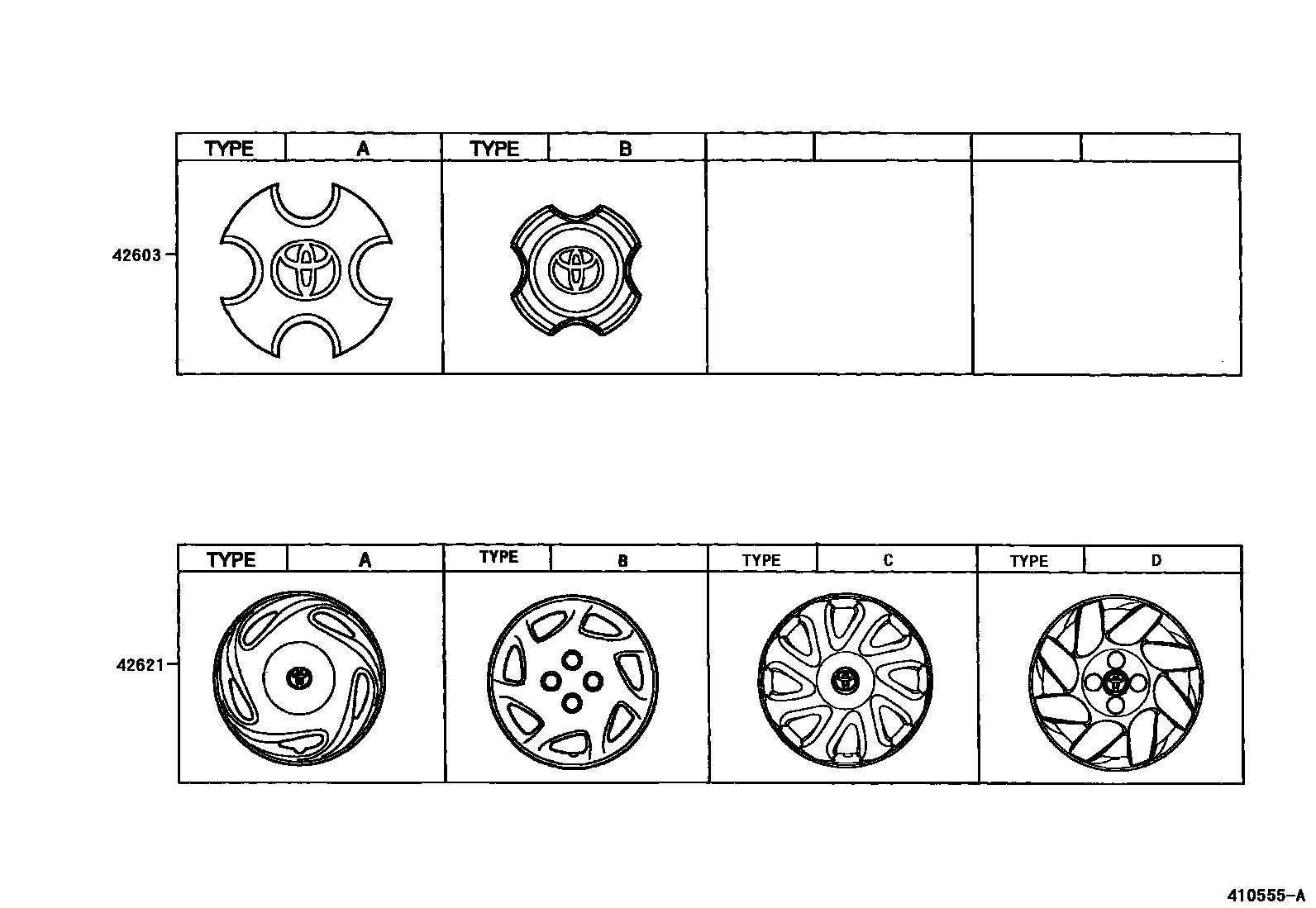

| 42603 | Wheel hub decorative parts sub-assembly | 42603-02070 · 42638-02060 |
| 42611G | Valve (for tubeless tires) | 90080-45001 |
| 42611J | Valve (for tubeless spare tire) | 90080-45001 · 90080-45006 |
| 42621 | wheel cover | 42621-AB010 · 42621-AB020 · 42621-AB030 · 42621-AB040 |
| 42652 | tires | 42652-02190 · 42652-02200 |
| 42652A | Tire (for Spare Wheel) | 42652-02190 · 42652-02200 · 42652-02230 |
